| Product Name |
1.25G SFP SX Multimode Dual Fiber LC DX Duplex Transceiver Module |
| Model |
BB-SFP-1.25G |
| Package Type |
SFP |
| Interface Type |
LC DX Duplex Dual Fiber |
| Cable Type |
Multimode LC DX Dual Fiber Patch Cord |
| Transmission Fiber Type |
Multimode Fiber (MMF) |
| Transmission Distance |
550m |
| Input Voltage |
3.3V |
| Transmit Power |
-9.5~-3 dBm |
| Transmit Wavelength |
850nm |
| Data Transfer Rate |
1.25Gbps |

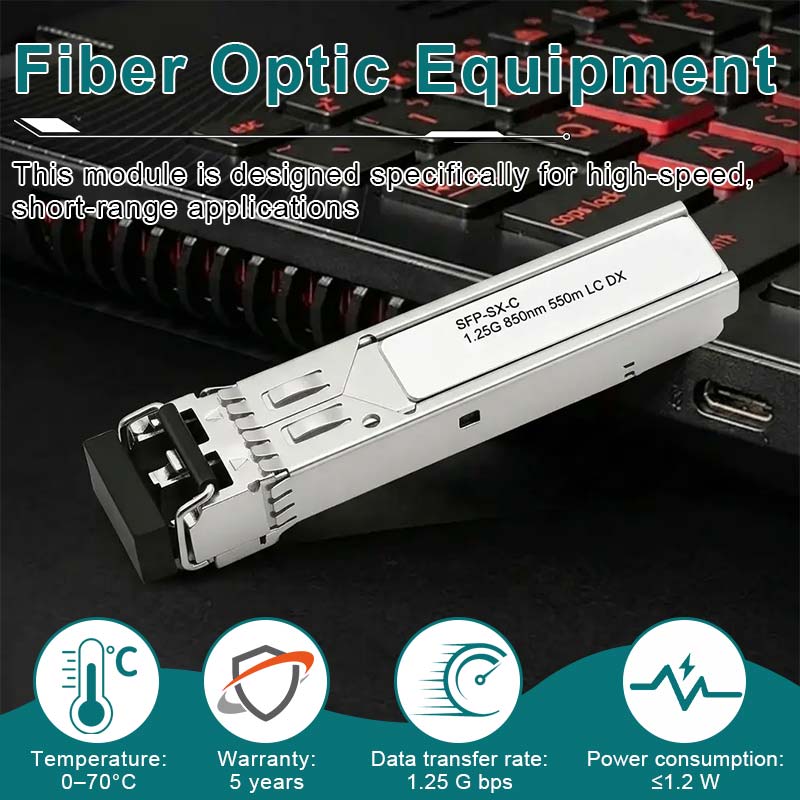

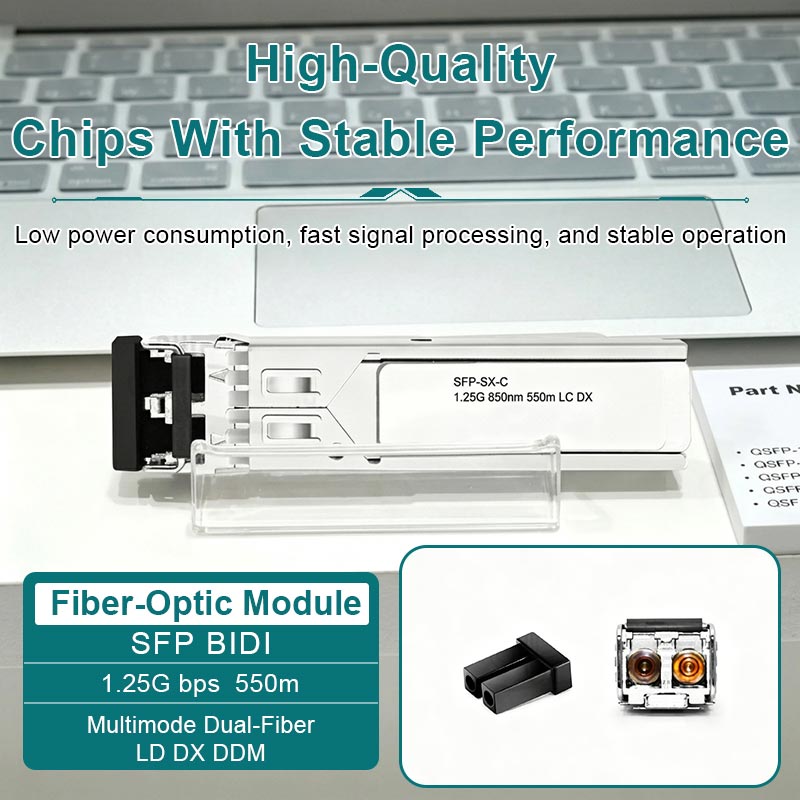

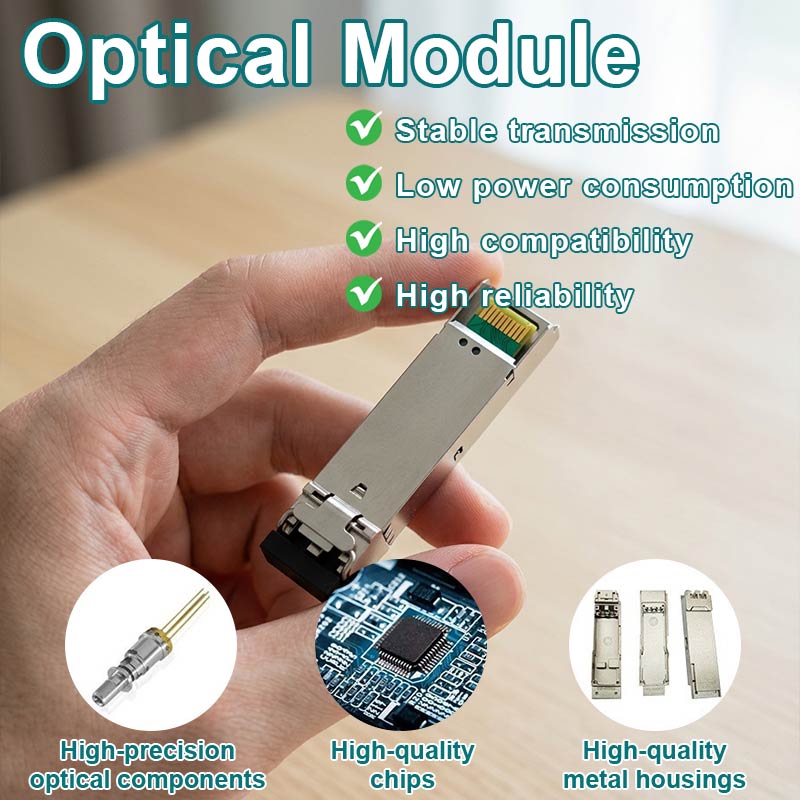

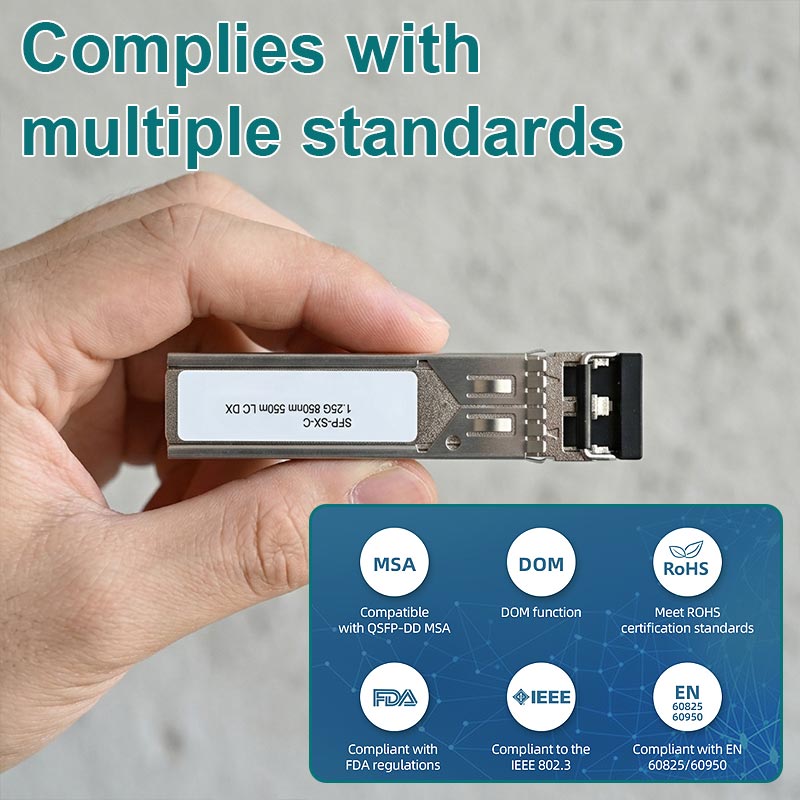

This pluggable SFP SX fiber optic module is specially developed for high-speed short-distance network transmission. Equipped with premium chips and high-precision optical components, it delivers fast signal processing, ultra-stable transmission and low power consumption ≤1.2W. It works with multimode dual fiber at 850nm wavelength, supporting 1.25Gbps data transmission up to 550 meters via LC duplex interface, and supports DDM digital diagnostic monitoring function. The integrated metal housing supports wide working temperature from 0°C to 70°C and comes with a 5-year warranty, fully compliant with MSA, IEEE 802.3, RoHS, FDA and EN 60825/60950 industry standards. It features broad compatibility with mainstream network equipment brands including Huawei, Cisco, H3C, ZTE, Juniper, Arista, Dell, HP and more. It is widely applied to short-distance data center interconnection, enterprise indoor LAN, campus network, industrial control network and short-range video surveillance transmission.
>
