100G Bidirectional QSFP28 Module 2km 1310nm Single-mode Duplex LC Optical Transceiver Module
MOQ: 1 Pcs (Min. Order)
SKU: QPL-QSFP28-100G-2km-1310nm

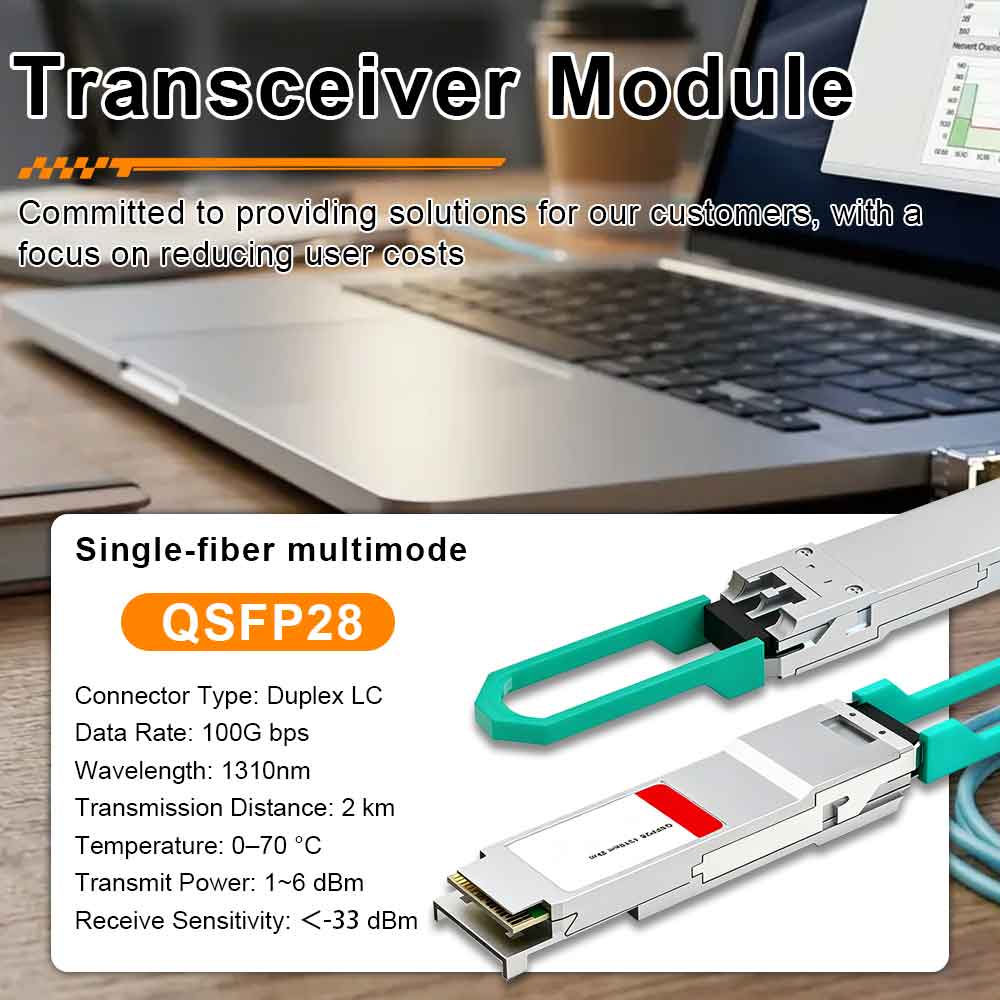

| Product Name | QSFP28 100G Single-mode Fiber Optic Transceiver Module |
| Model | QPL-QSFP28-100G-2km-1310nm |
| Package Type | QSFP28 |
| Connector Type | Duplex LC |
| Cable Type | Duplex Single-mode Fiber Patch Cord |
| Fiber Mode | Single-mode Fiber |
| Transmission Distance | 2 km |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310 nm |
| Data Transfer Rate | 100Gbps |
| Operating Temperature | 0–70 ℃ |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | QSFP28 100G Single-mode Fiber Optic Transceiver Module |
| Model | QPL-QSFP28-100G-2km-1310nm |
| Package Type | QSFP28 |
| Connector Type | Duplex LC |
| Cable Type | Duplex Single-mode Fiber Patch Cord |
| Fiber Mode | Single-mode Fiber |
| Transmission Distance | 2 km |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310 nm |
| Data Transfer Rate | 100Gbps |
| Operating Temperature | 0–70 ℃ |
Product Function

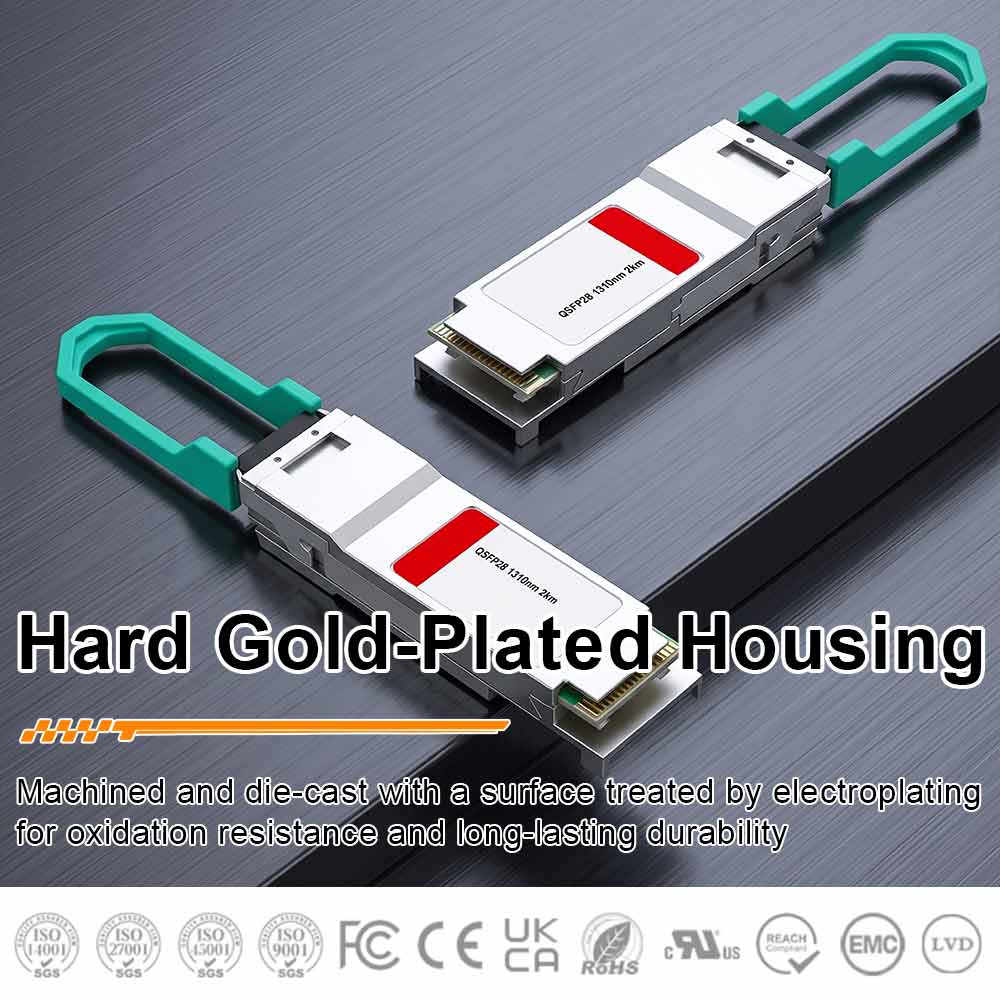

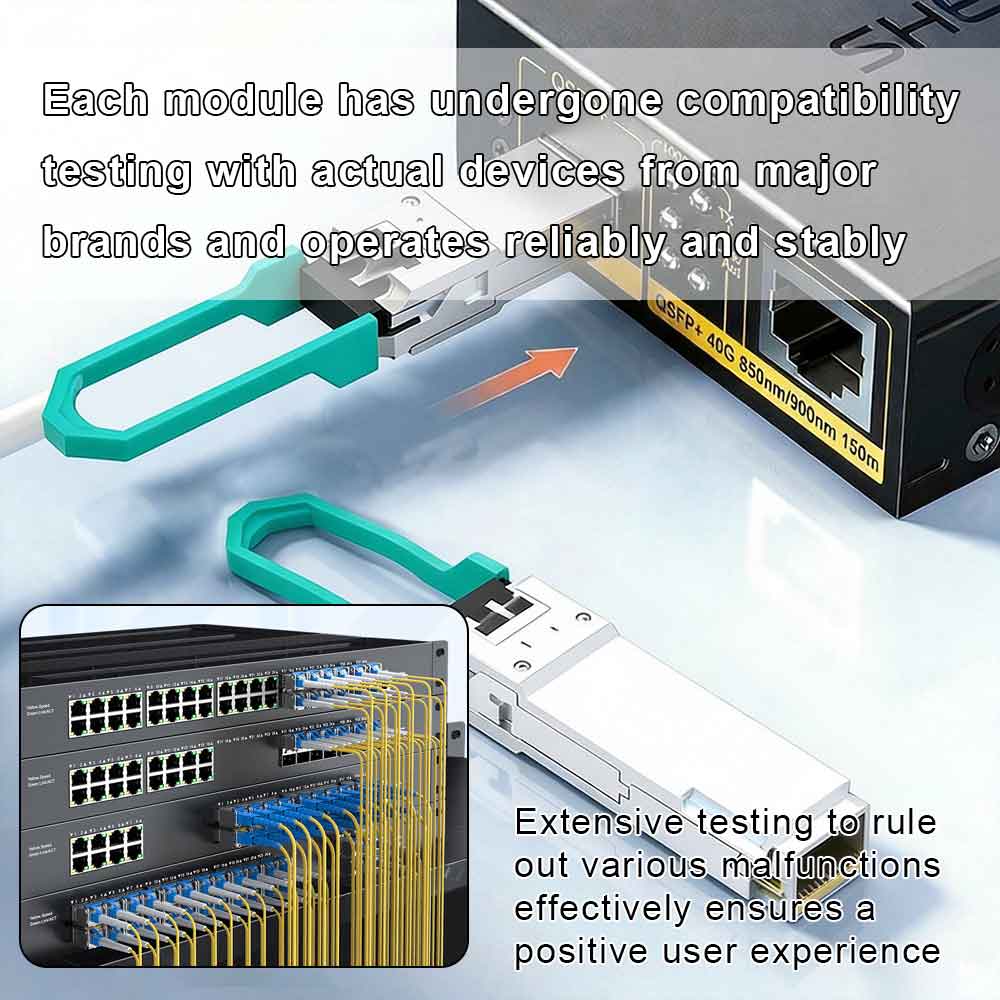

This QSFP28 optical transceiver module adopts die-cast hard gold-plated housing with electroplating anti-oxidation treatment for long service life and reusability. It features stable 3.3V input voltage and strictly selected premium raw materials. Operating at 1310nm wavelength, it delivers 1~6dBm transmit power with receiving sensitivity lower than -33dBm, supporting steady 100Gbps ultra-high-speed data transmission up to 2km over single-mode fiber. Each module passes comprehensive compatibility and fault screening tests, with a wide operating temperature range of 0–70℃ to maintain stable signal transmission in various indoor working environments.
Compatible Brands
Plug-and-play compatible with 99% mainstream communication equipment brands on the market, including Cisco, Huawei, ZTE, H3C, Alcatel-Lucent, Allied Telesis, Brocade, D-Link, Extreme, HP, Intel, Juniper, Netcore, NETGEAR, Netmoon, Nortel, PacketFront, Riverstone, Ruijie, SMC, Tenda, TG-NET, TP-LINK, ZyXEL, no extra configuration required.
Application Scenarios
Perfect for short-distance data center cabinet interconnection, enterprise internal core switch fiber networking, server rack high-speed link transmission, indoor campus LAN construction, short-range industrial optical network deployment and 2km single-mode fiber channel projects.
