| Product Name |
1.25G SFP BIDI Fiber Optic Transceiver Module |
| Model |
BB-SFP-BIDI-1.25G |
| Package Type |
SFP |
| Interface Type |
LC SX Simplex Single Fiber |
| Cable Type |
Single-mode/Multi-mode Single Fiber Patch Cord |
| Transmission Fiber Type |
Single Mode Fiber (SMF)/Multi Mode Fiber(MMF) |
| Transmission Distance |
1/3/10/20/40/60/80km |
| Input Voltage |
3.3V |
| Transmit Power |
1km-9.5~-3dbm; 3km -14~-8dbm; 10km -9~-3dbm |
| Transmit Wavelength |
1310/1550nm |
| Data Transfer Rate |
1.25Gbps |

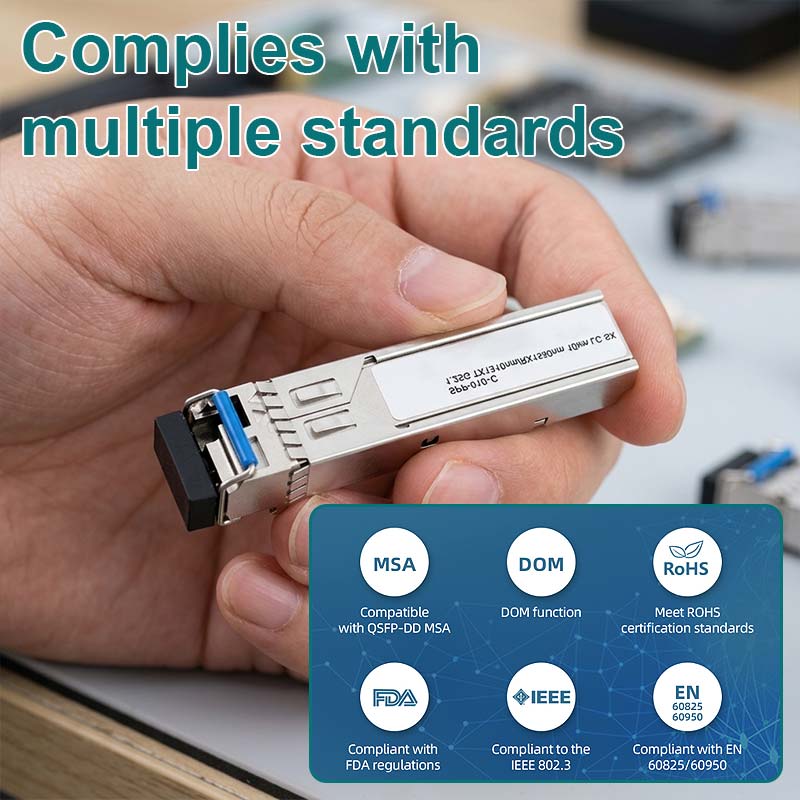

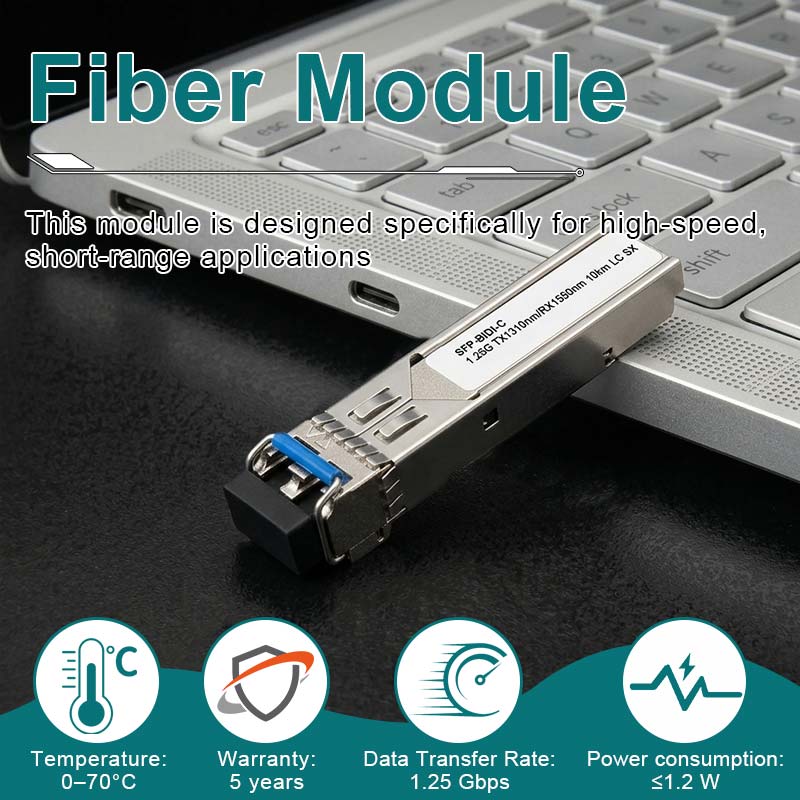

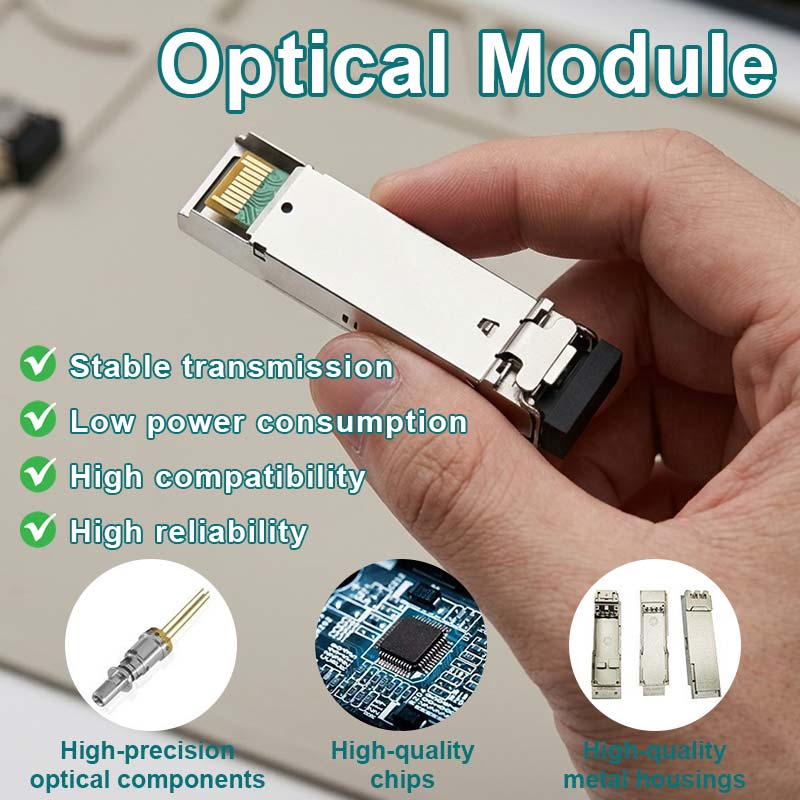

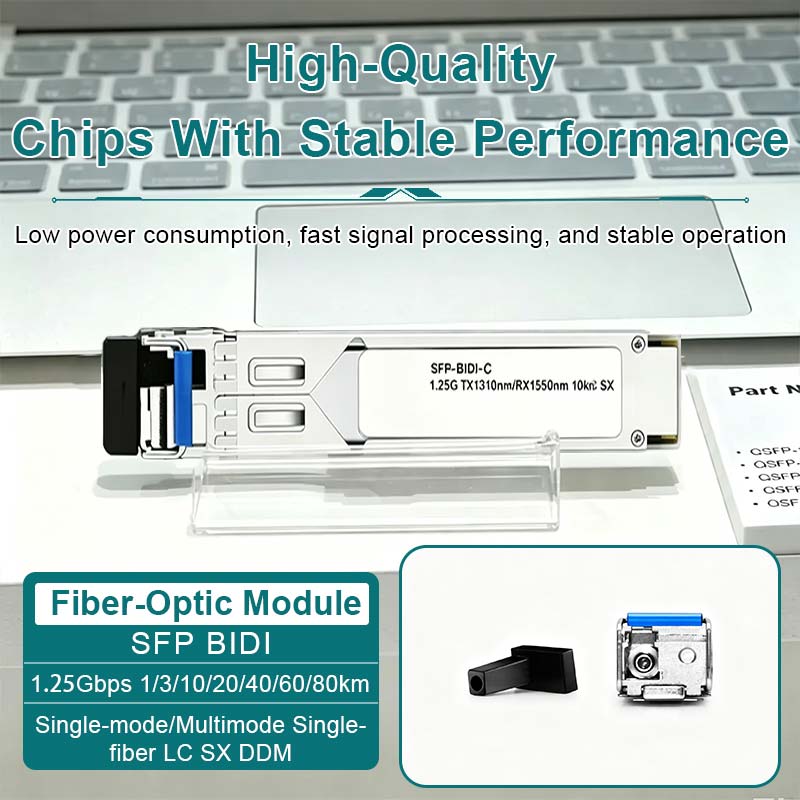

This pluggable SFP BIDI fiber optic module is designed for high-speed short and medium-distance network transmission. It adopts high-quality chips and high-precision optical components to realize fast signal processing, stable transmission and low power consumption ≤1.2W. It works on single-mode single fiber, supports 1.25Gbps data transmission up to 10km with LC simplex interface, equipped with DDM digital diagnostic monitoring function. The metal shell supports 0~70℃ wide temperature operation and comes with a 5-year warranty, fully complying with MSA, IEEE 802.3, RoHS, FDA and EN 60825/60950 industry standards. It boasts wide compatibility with mainstream network equipment brands including Huawei, Cisco, H3C, ZTE, Juniper, Arista, Dell, HP and more. It is widely applied to campus network, FTTH fiber access, enterprise LAN, short-distance park network and small data center interconnection scenarios.
>
