1.25G SFP Single Fiber Optical Transceiver Module Duplex LC Connector 10km T1310/R1550nm Single Mode Fiber SFP Transceiver
MOQ: 1 Pcs (Min. Order)
SKU: QPL-SFP-1.25G-10km

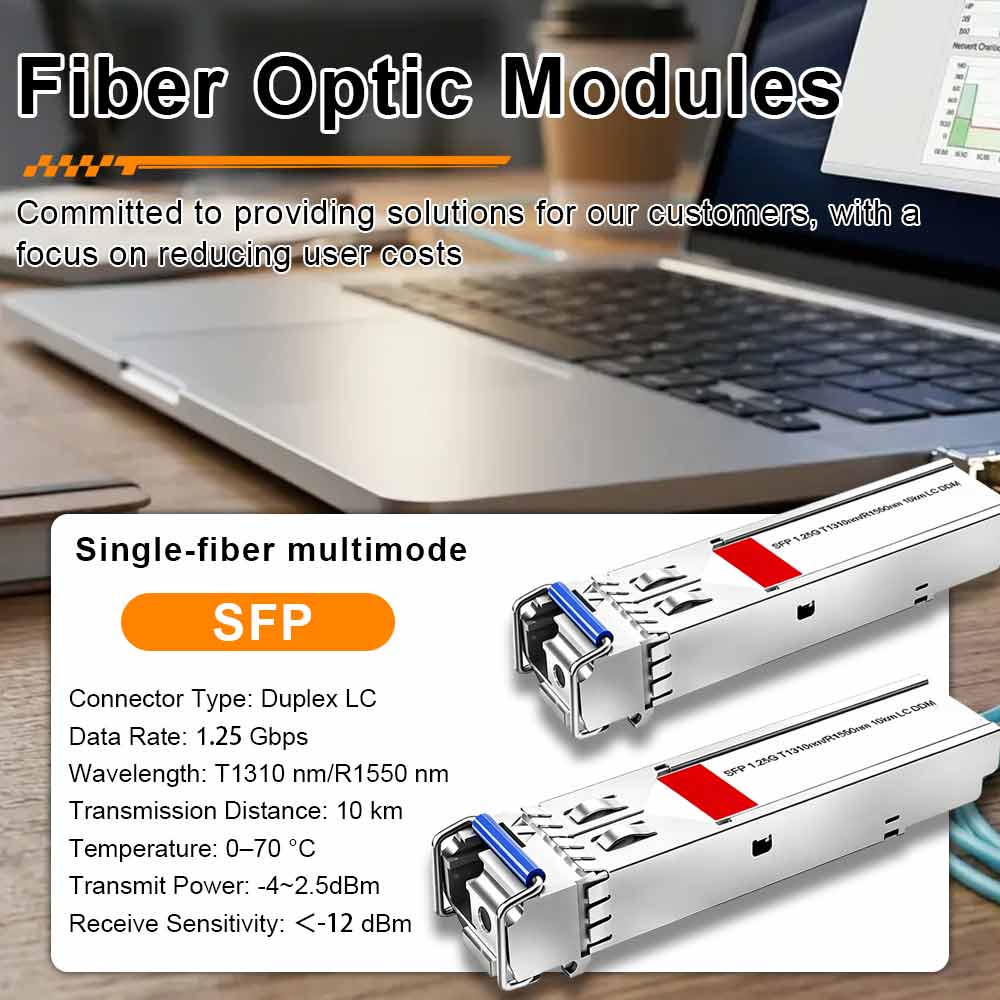

| Product Name | 1.25G SFP Single Fiber Single Mode Optical Transceiver Module |
| Model | QPL-SFP-1.25G-10km |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber Cable |
| Transmission Fiber Type | Single Fiber Single Mode (SMF) |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | -4 ~ 2.5 dBm |
| Transmit Wavelength | Transmit 1310nm, Receive 1550nm (T1310/R1550nm) |
| Data Transfer Rate | 1.25 Gbps |
| Work Temperature | 0-70℃ |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | 1.25G SFP Single Fiber Single Mode Optical Transceiver Module |
| Model | QPL-SFP-1.25G-10km |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber Cable |
| Transmission Fiber Type | Single Fiber Single Mode (SMF) |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | -4 ~ 2.5 dBm |
| Transmit Wavelength | Transmit 1310nm, Receive 1550nm (T1310/R1550nm) |
| Data Transfer Rate | 1.25 Gbps |
| Work Temperature | 0-70℃ |

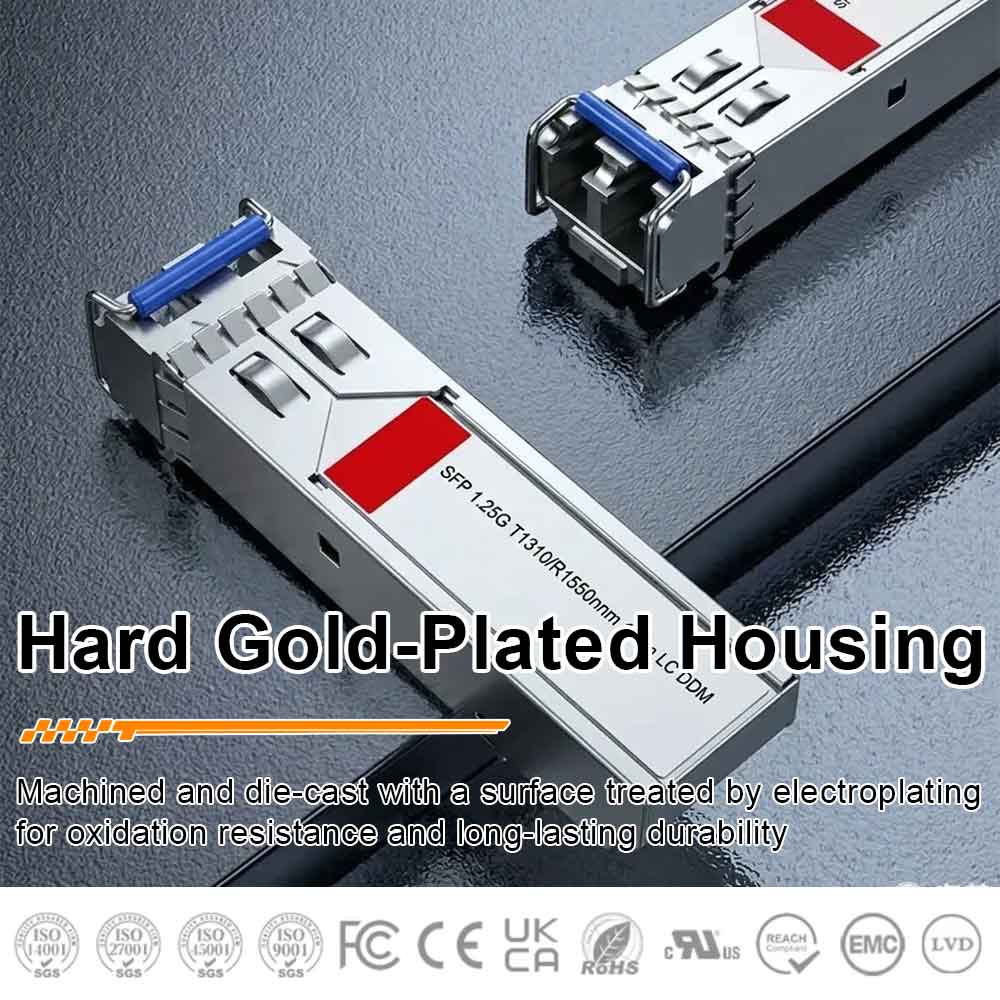

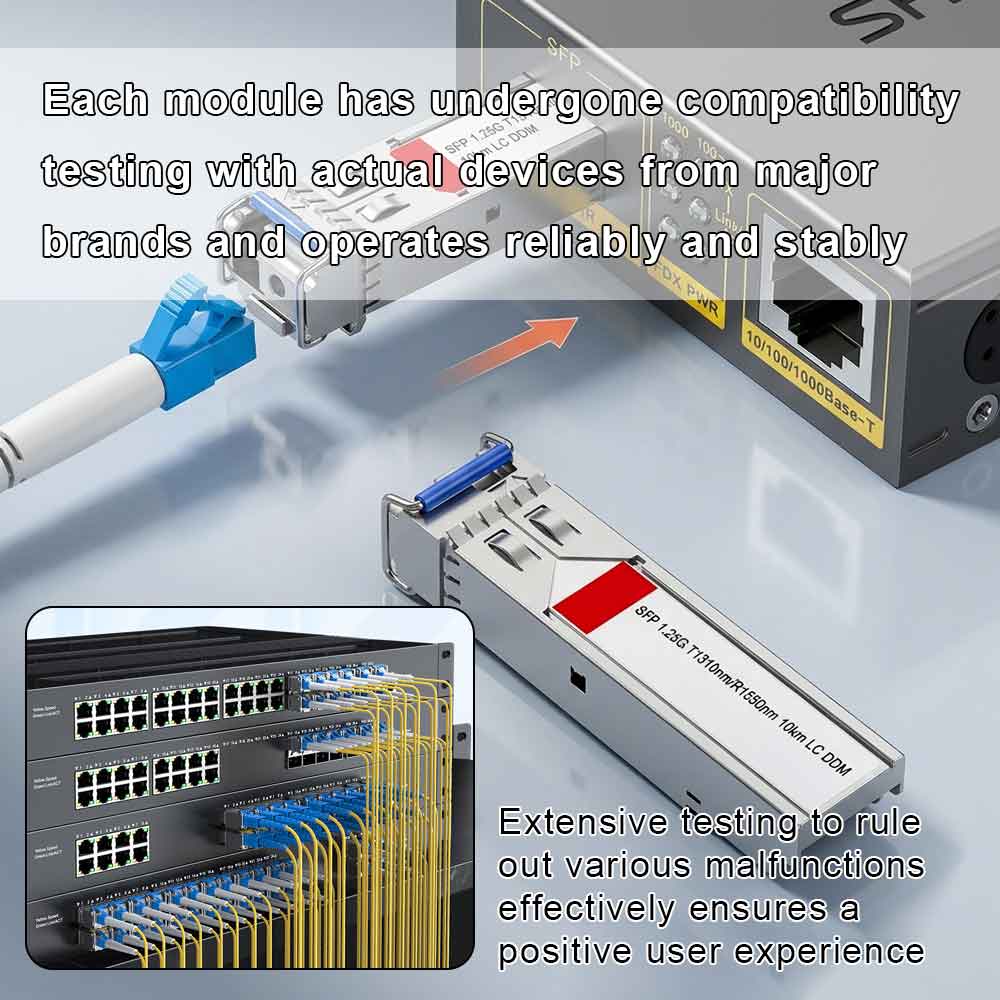

This SFP gigabit optical transceiver module is single-fiber single-mode transmission equipment with duplex LC interface, supporting 1.25Gbps stable data transmission up to 10km distance. It adopts hard gold-plated die-cast shell, featuring oxidation resistance, stable 3.3V working voltage, reusable structure and long service life. Every module passes strict compatibility and aging testing before delivery to avoid signal failure.
Core Functions
Realize bidirectional gigabit optical signal receiving & transmitting, built-in DDM digital diagnostic monitoring, wide working temperature range of 0–70℃, low receiving sensitivity (<-12 dBm), strong anti-interference performance and low signal loss.
Compatible Brands
It is compatible with 99% mainstream communication equipment brands on the market, including Cisco, Huawei, ZTE, H3C, HP, Intel, Juniper, D-Link, TP-Link, Ruijie, Tenda, Brocade, Netgear, Alcatel-Lucent, ZyXEL and more.
Application Scenarios
Gigabit enterprise switch interconnection, data center short-distance transmission, campus network construction, FTTH fiber broadband system, IDC computer room communication, security monitoring network and commercial office fiber network transformation.
