QSFP28 100G SR4 Transceiver Module 100m MMF MPO Connector DOM Function Fiber Optic Equipment
| Product Name | 100G QSFP28 SR4 Multimode MPO DOM Fiber Optic Transceiver Module |
| Model | BB-QSFP28-100G |
| Package Type | QSFP28 |
| Interface Type | MPO |
| Cable Type | Multimode Fiber Patch Cord |
| Transmission Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 100m |
| Input Voltage | 3.3V |
| Transmit Power | -6~2.4dBm |
| Transmit Wavelength | 850nm |
| Data Transfer Rate | 100Gbps |
| Product Name | 100G QSFP28 SR4 Multimode MPO DOM Fiber Optic Transceiver Module |
| Model | BB-QSFP28-100G |
| Package Type | QSFP28 |
| Interface Type | MPO |
| Cable Type | Multimode Fiber Patch Cord |
| Transmission Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 100m |
| Input Voltage | 3.3V |
| Transmit Power | -6~2.4dBm |
| Transmit Wavelength | 850nm |
| Data Transfer Rate | 100Gbps |

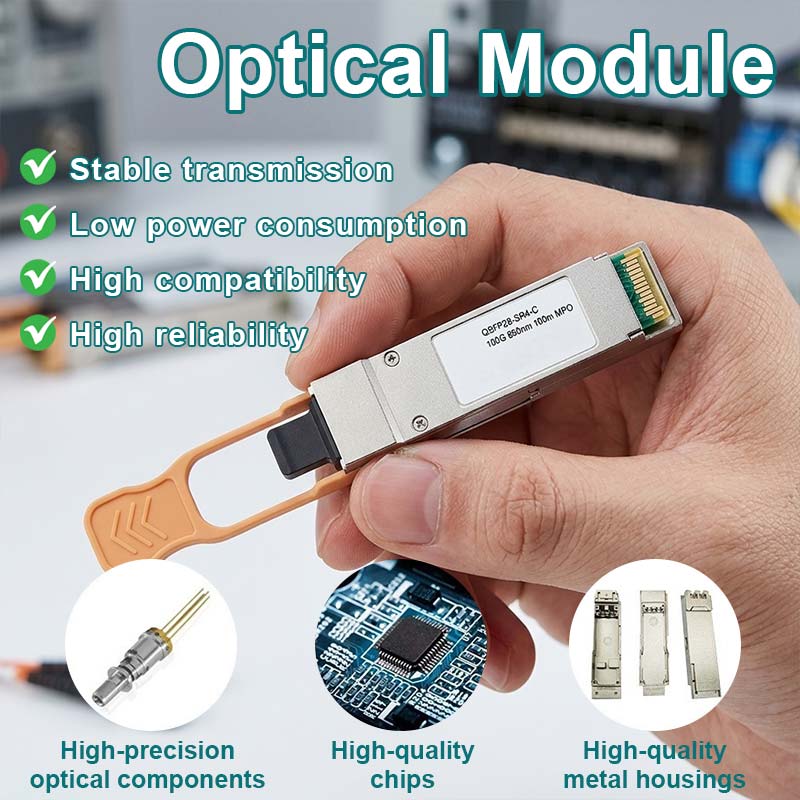

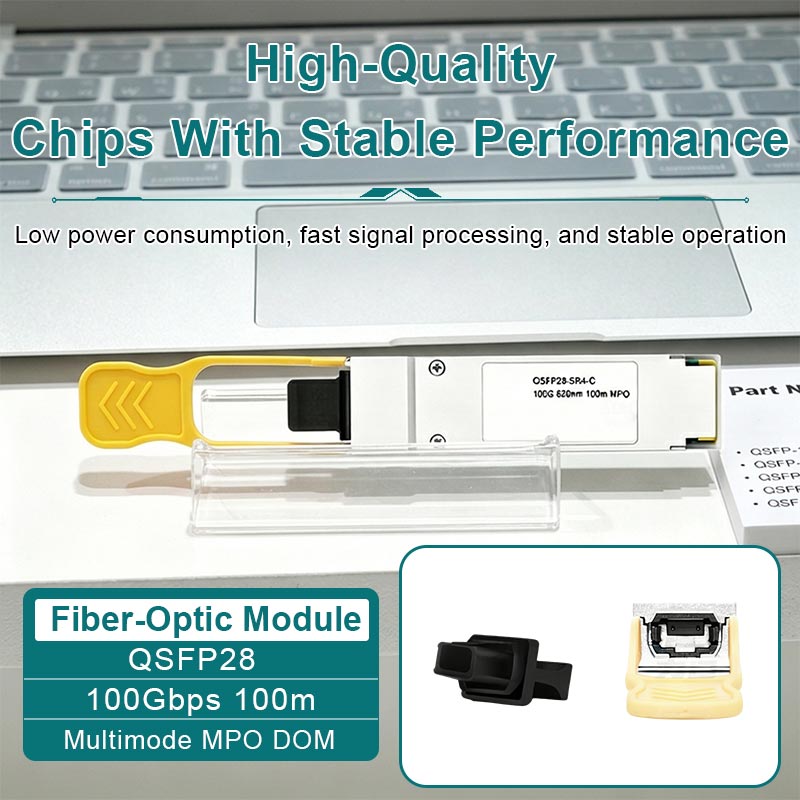

This pluggable QSFP28 fiber optic transceiver is specially developed for high-speed short-distance network transmission. It adopts high-quality core chips and high-precision optical components, realizing fast signal processing, stable transmission and low power consumption ≤1.2W. It works at 850nm wavelength over multimode fiber, supporting 100G high-speed transmission up to 100 meters with MPO interface, equipped with DOM digital diagnostic monitoring function.

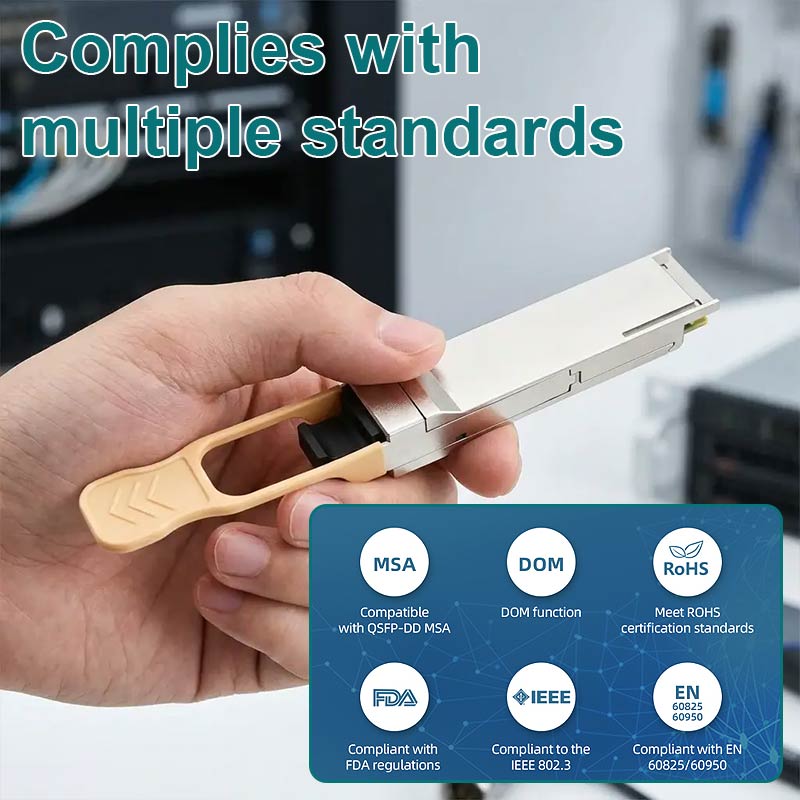

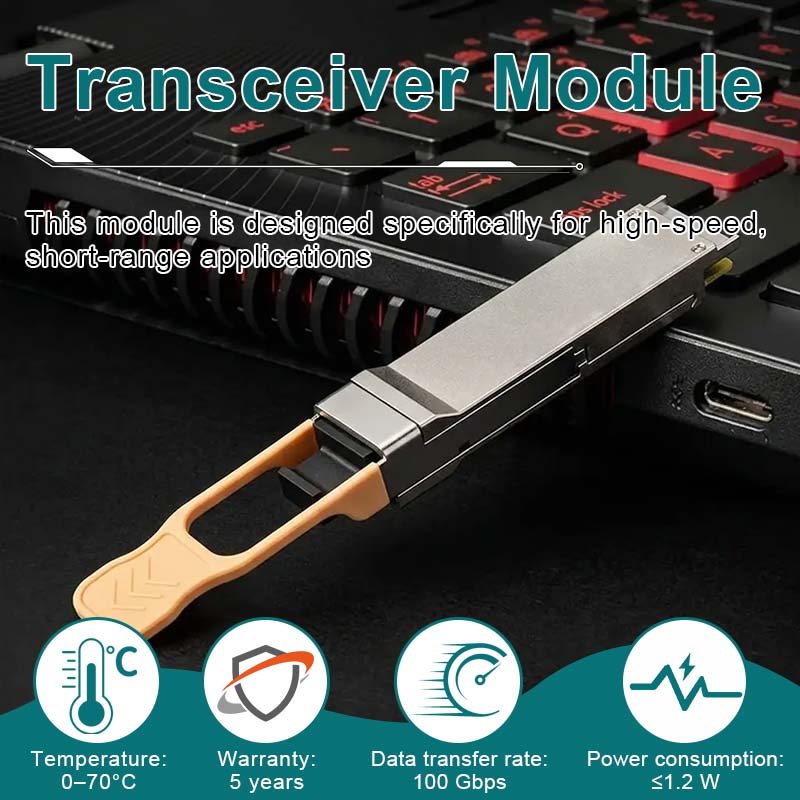

The integrated metal housing supports wide operating temperature range of 0°C to 70°C and comes with a 5-year warranty. This module fully meets QSFP28 MSA, IEEE 802.3, RoHS, FDA and EN 60825/60950 industry standards. It features ultra-wide compatibility, supporting mainstream network equipment brands including Huawei, Cisco, H3C, ZTE, Juniper, Arista, Dell and more. It is widely applied to short-range data center interconnection, cloud computing server-switch connection, enterprise high-bandwidth network and high-performance computing transmission scenarios.
