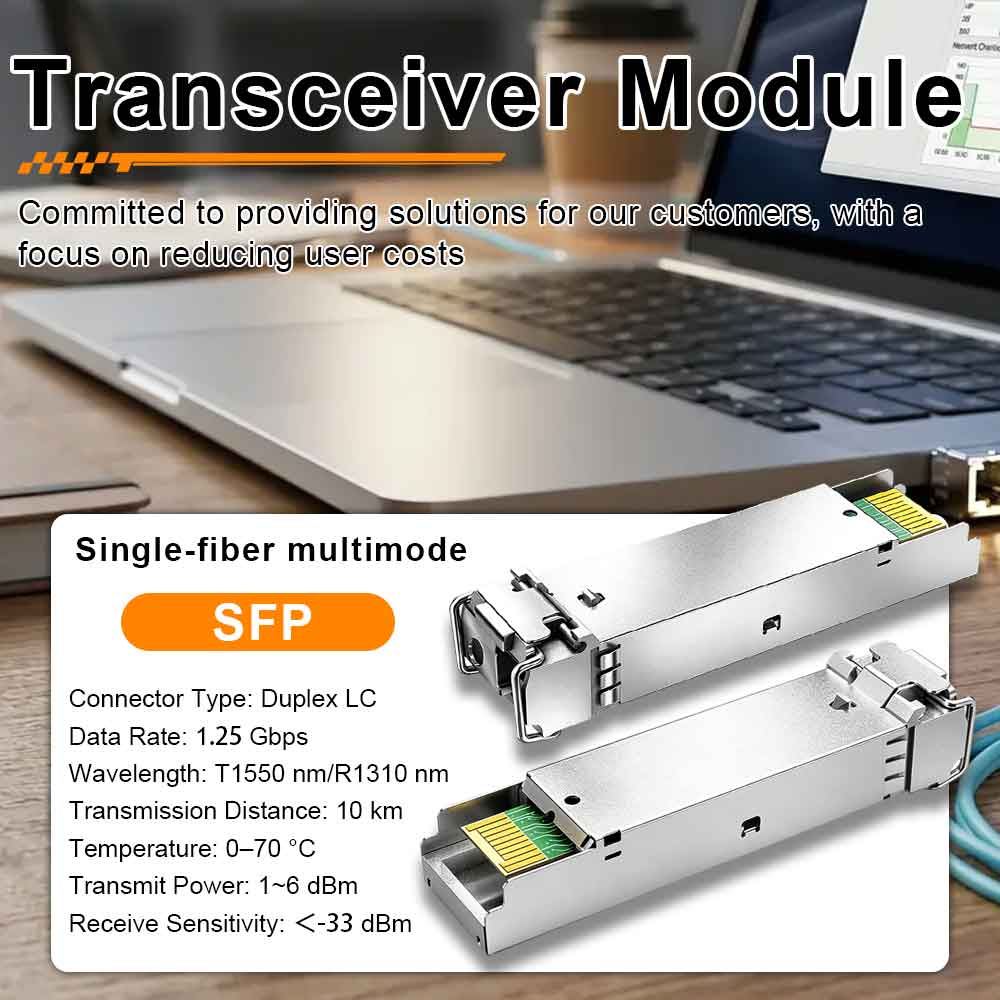

SFP 1.25G Single-mode Single Fiber 10km LC BiDi Optical Transceiver Module T1550nm/R1310nm with DDM Function
MOQ: 1 Pcs (Min. Order)
SKU: QPL-SFP-1.25G-10km-T1550nm/R1310nm
| Product Name | SFP 1.25G Single Fiber BiDi Optical Transceiver Module 10km LC |
| Model | QPL-SFP-1.25G-10km-T1550nm/R1310nm |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber |
| Transmission Fiber Type | Single Fiber BiDi (Single-mode) |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | 1~6 dBm |
| Transmit Wavelength | Tx 1550nm, Rx 1310nm |
| Data Transfer Rate | 1.25 Gbps |
| Operating Temperature | 0 ~ 70 °C |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | SFP 1.25G Single Fiber BiDi Optical Transceiver Module 10km LC |
| Model | QPL-SFP-1.25G-10km-T1550nm/R1310nm |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber |
| Transmission Fiber Type | Single Fiber BiDi (Single-mode) |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | 1~6 dBm |
| Transmit Wavelength | Tx 1550nm, Rx 1310nm |
| Data Transfer Rate | 1.25 Gbps |
| Operating Temperature | 0 ~ 70 °C |

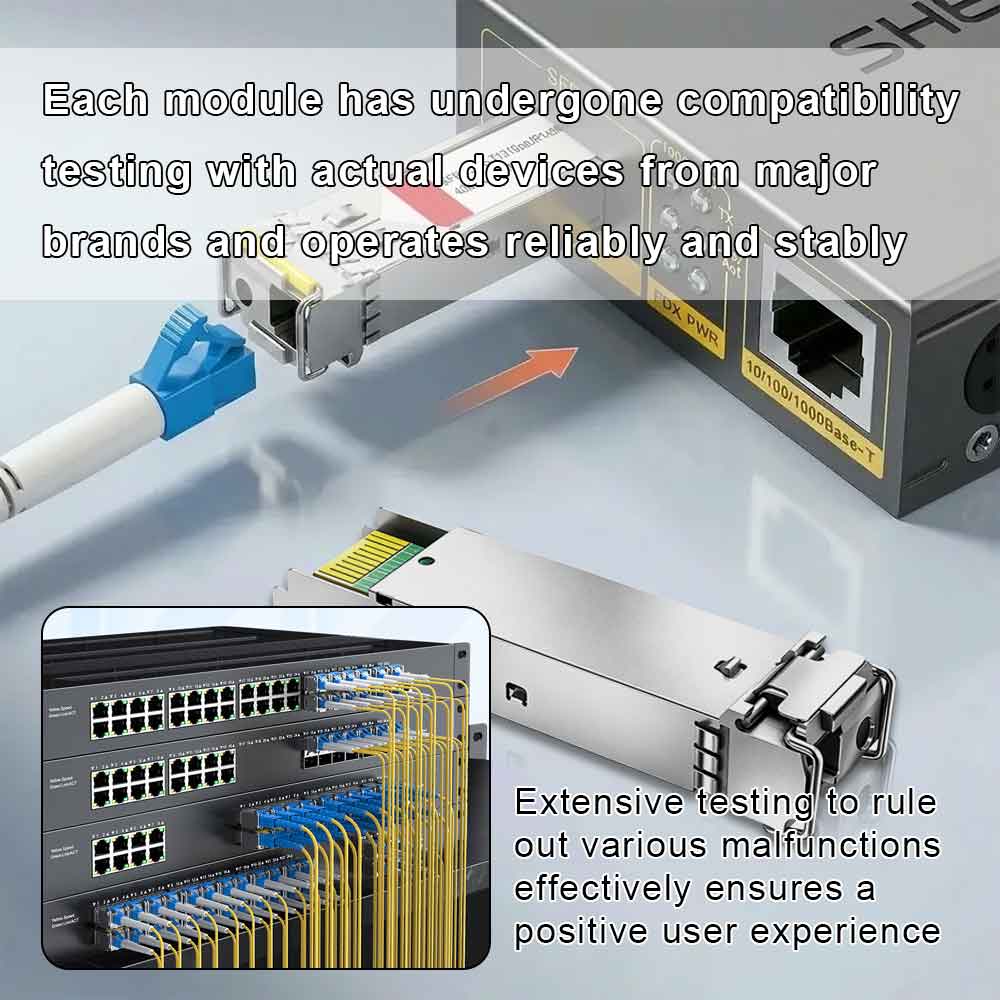

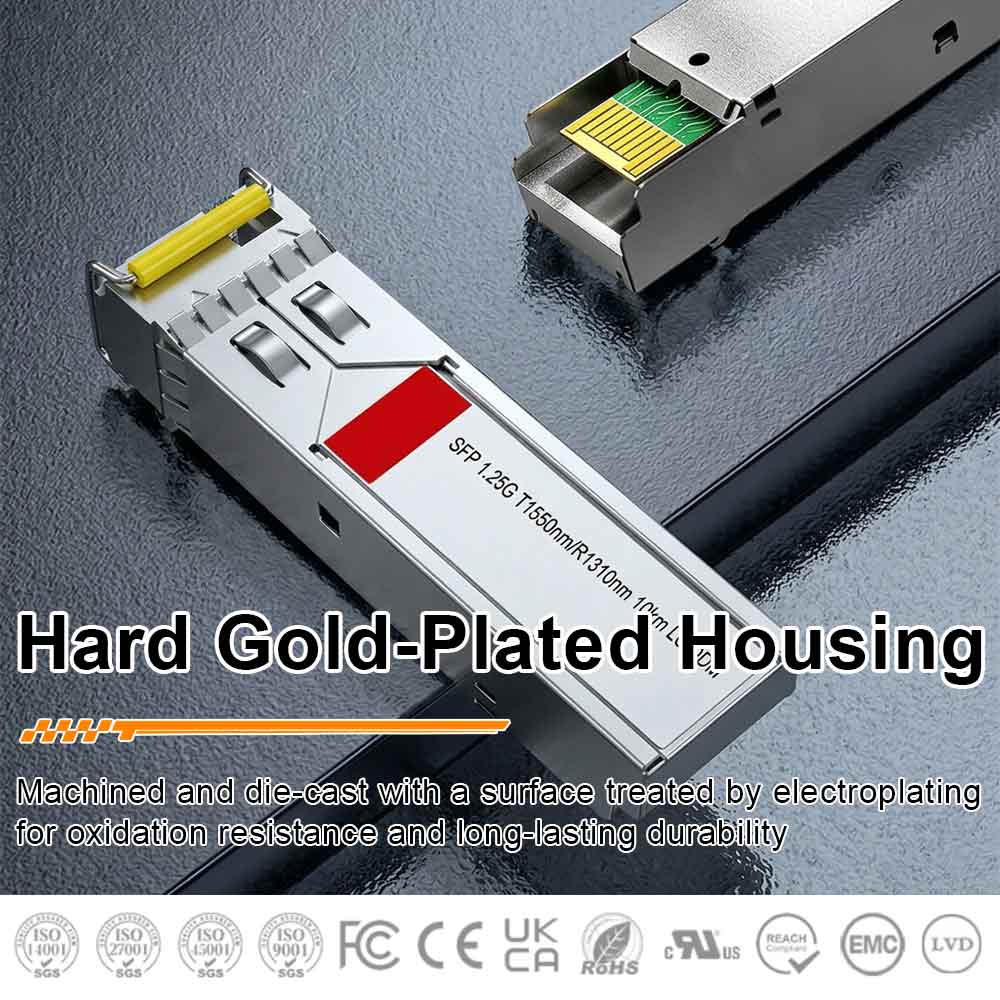

This 1.25G SFP single fiber bidirectional optical transceiver module supports DDM digital diagnostic monitoring function, enabling real-time monitoring of module temperature, transmit power, receive power and supply voltage for stable network operation. It adopts hard gold-plated metal housing with electroplating surface treatment, featuring anti-oxidation, durable and reusable performance, stable voltage output and long service life.
Compatible Brands
Fully compatible with mainstream communication equipment brands including Cisco, Huawei, ZTE, H3C, Ruijie, TP-Link, D-Link, HP, Intel, Juniper, Brocade, Tenda, ZyXEL, NETGEAR and more, plug-and-play without extra configuration.
Application Scenarios
Widely applied in gigabit Ethernet switches, fiber routers, industrial network equipment, campus network construction, security monitoring fiber transmission, enterprise LAN long-distance interconnection, and FTTH fiber access projects.
