QSFP-DD 400G Optical Transceiver Module 500m Multimode Duplex LC Interface Hot-Pluggable Fiber Optic Module with Digital Diagnostics Monitoring
| Product Name | 400G QSFP-DD Multimode Duplex LC Fiber Optic Transceiver Module |
| Model | QPL-QSFP-DD-400G-500m-1310nm |
| Package Type | QSFP-DD |
| Interface Type | Duplex LC Dual Fiber |
| Cable Type | Multimode Duplex Fiber Patch Cord |
| Transmission Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 500m |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310nm |
| Data Transfer Rate | 400Gbps |
| Operating Temperature | 0 ~ 70℃ |
| Product Name | 400G QSFP-DD Multimode Duplex LC Fiber Optic Transceiver Module |
| Model | QPL-QSFP-DD-400G-500m-1310nm |
| Package Type | QSFP-DD |
| Interface Type | Duplex LC Dual Fiber |
| Cable Type | Multimode Duplex Fiber Patch Cord |
| Transmission Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 500m |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310nm |
| Data Transfer Rate | 400Gbps |
| Operating Temperature | 0 ~ 70℃ |

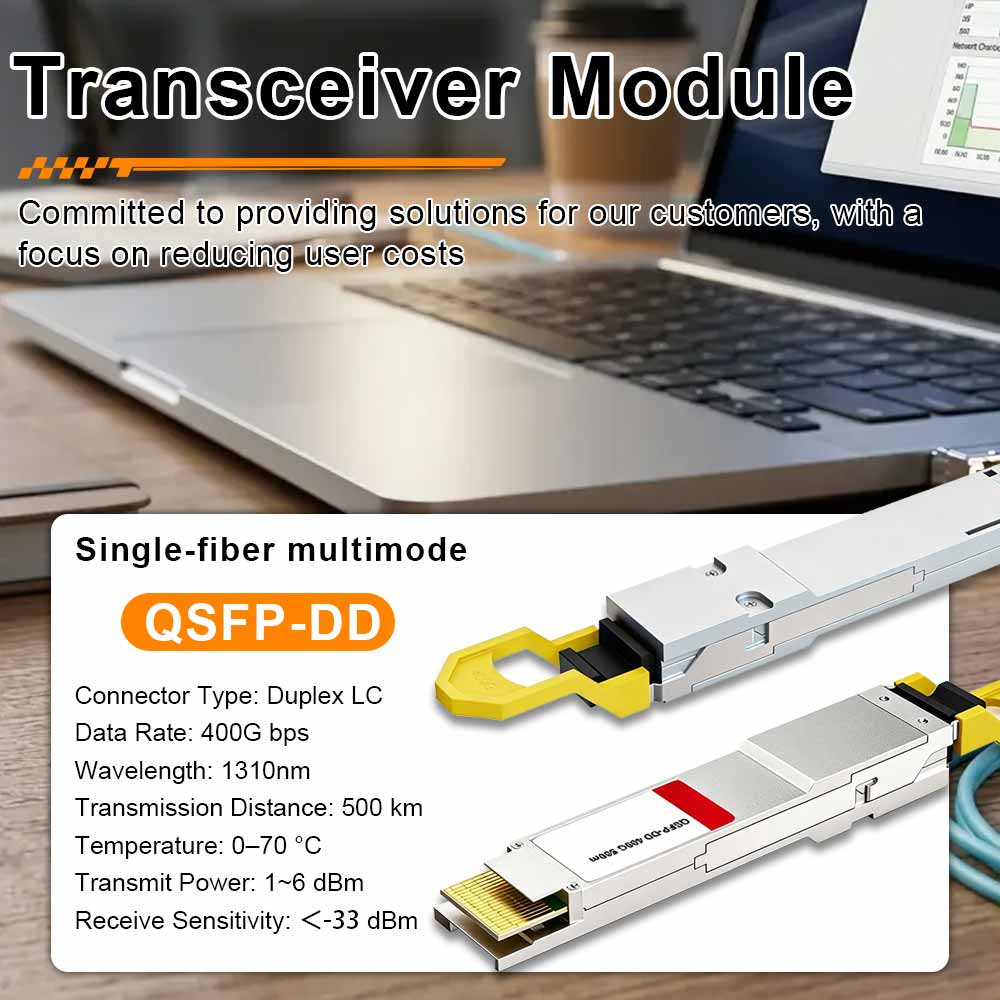

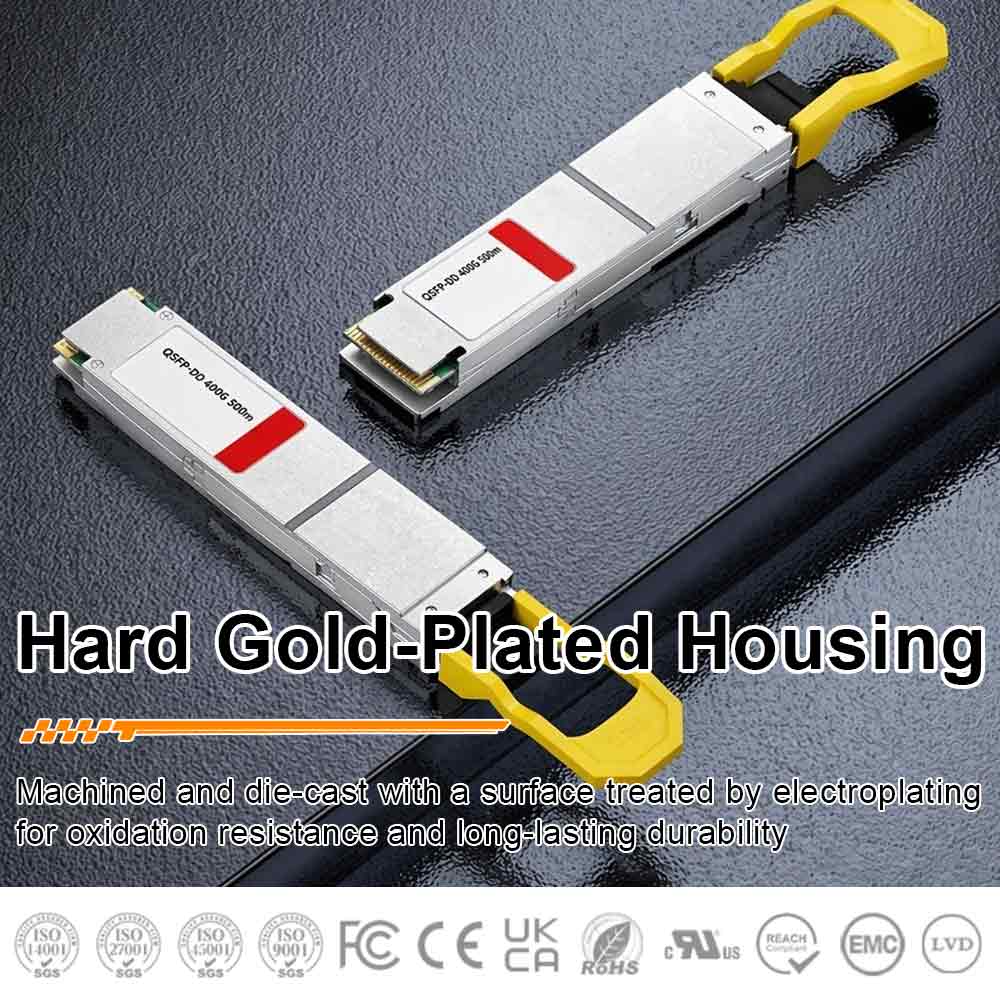

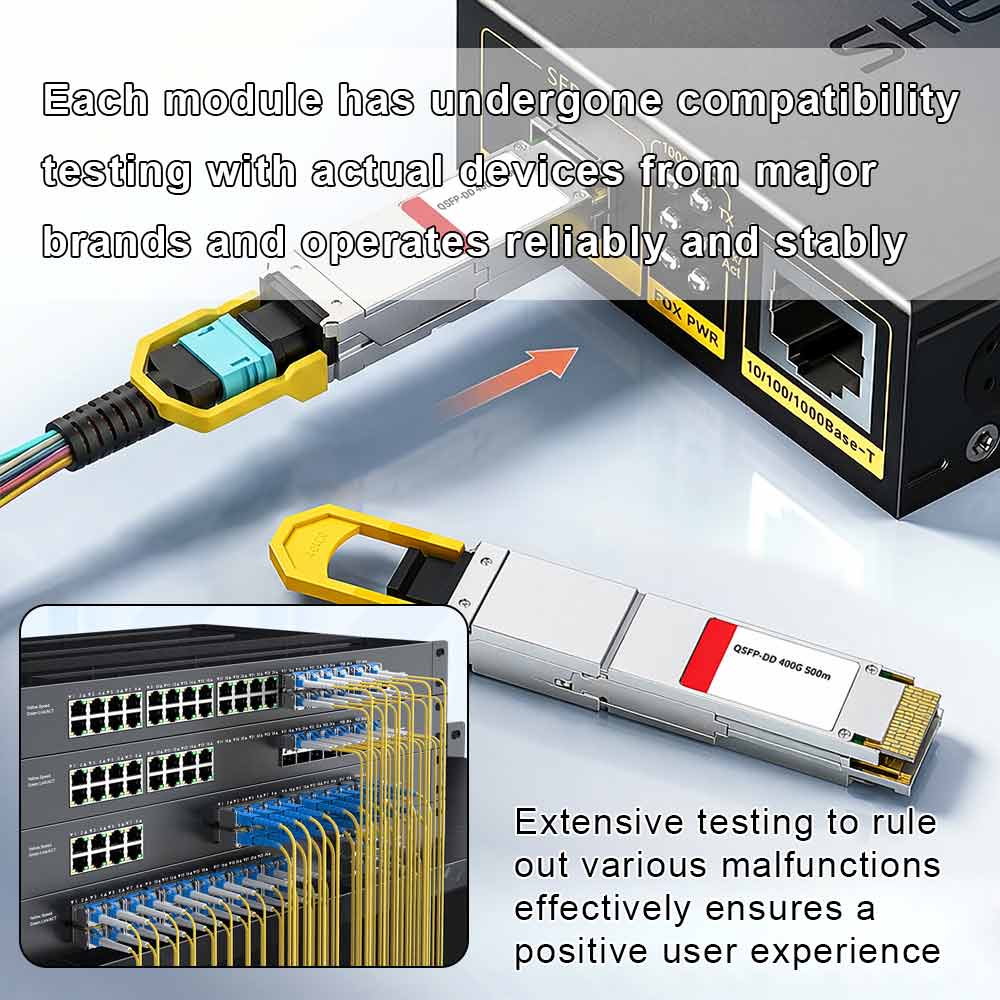

This hot-swappable QSFP-DD fiber optic transceiver is specially developed for high-speed short-distance data center interconnection. It adopts strictly selected premium optical chips and hard gold-plated die-cast metal housing, featuring oxidation resistance, long service life, stable voltage output and recyclable structure. It works at 1310nm wavelength over multimode duplex fiber, supporting 400Gbps ultra-high-speed transmission up to 500 meters via duplex LC interface, equipped with DDM digital real-time monitoring function. It runs stably under wide temperature range of 0–70℃, with transmit power 1~6 dBm and receive sensitivity lower than -33 dBm, powered by standard 3.3V voltage. All modules pass full compatibility test and meet ISO, FCC, CE, RoHS, REACH and other international certification standards.
It supports over 99% mainstream communication device brands on the market, including Huawei, Cisco, ZTE, H3C, HP, Intel, Juniper, Ruijie, TP-LINK, D-Link and more. Widely applied to short-distance data center internal interconnection, cloud computing high-speed server-switch links, high-performance computing cluster transmission, enterprise high-bandwidth internal network and 400G short-range fiber channel connection.
