1.25Gbps LC Gigabit BiDi SFP Module Single-fiber Single Mode 40KM Optical Transceiver Module
MOQ: 1 Pcs (Min. Order)
SKU: QPL-SFP-BiDi-1.25G-40km
| Product Name | SFP 1.25G Single Fiber BiDi Optical Transceiver Module 40km LC |
| Model | QPL-SFP-BiDi-1.25G-40km |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber |
| Transmission Fiber Type | Single Fiber BiDi Single Mode |
| Transmission Distance | 40 km |
| Input Voltage | 3.3V |
| Transmit Power | -6 ~ 2.4 dBm |
| Transmit Wavelength | Tx 1310nm, Rx 1490nm |
| Data Transfer Rate | 1.25 Gbps |
| Operating Temperature | 0 ~ 70 °C |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | SFP 1.25G Single Fiber BiDi Optical Transceiver Module 40km LC |
| Model | QPL-SFP-BiDi-1.25G-40km |
| Package Type | SFP |
| Connector Type | Duplex LC |
| Cable Type | Single Mode LC Fiber |
| Transmission Fiber Type | Single Fiber BiDi Single Mode |
| Transmission Distance | 40 km |
| Input Voltage | 3.3V |
| Transmit Power | -6 ~ 2.4 dBm |
| Transmit Wavelength | Tx 1310nm, Rx 1490nm |
| Data Transfer Rate | 1.25 Gbps |
| Operating Temperature | 0 ~ 70 °C |

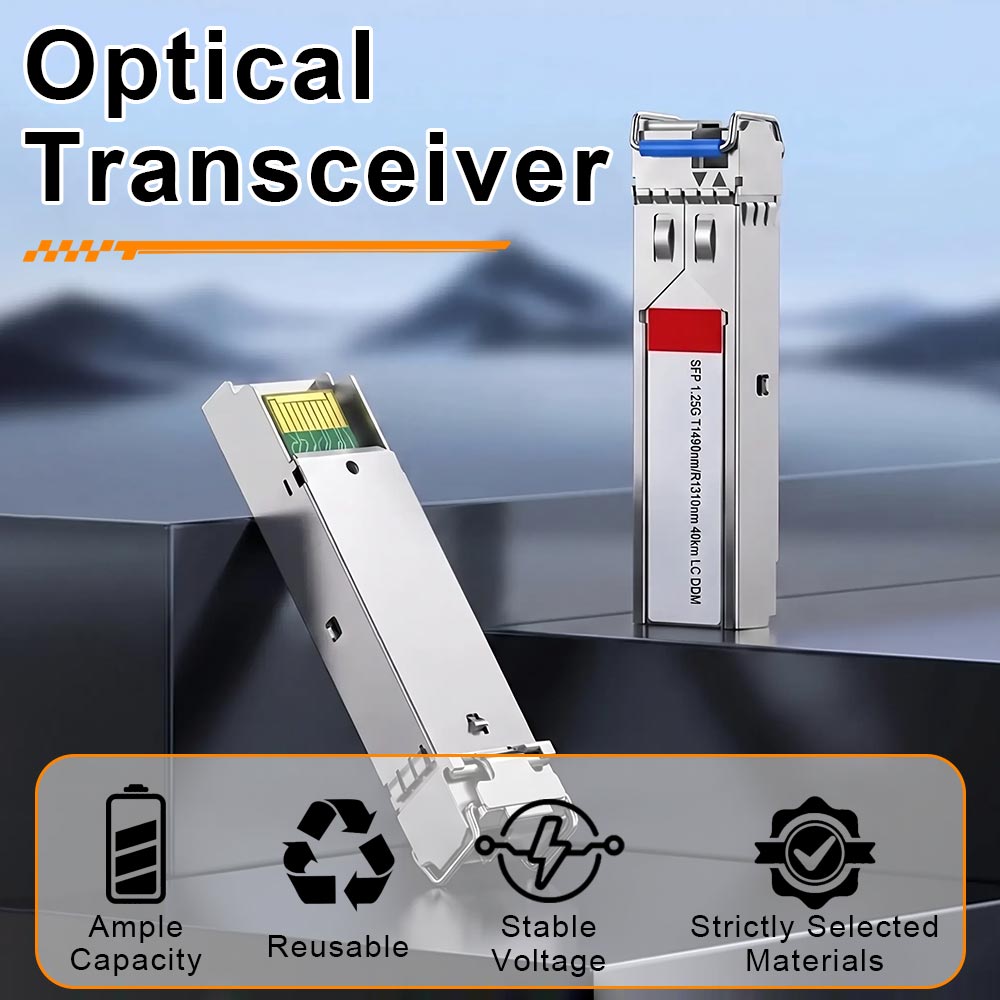

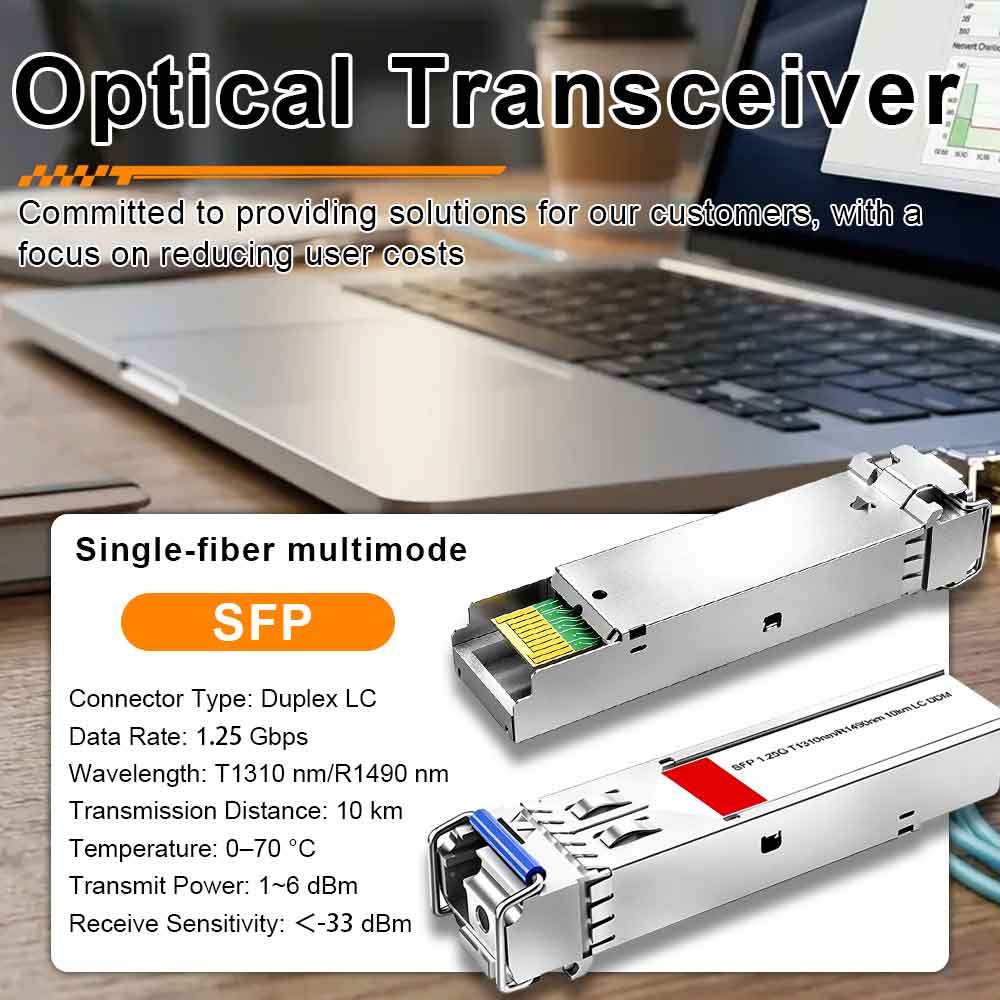

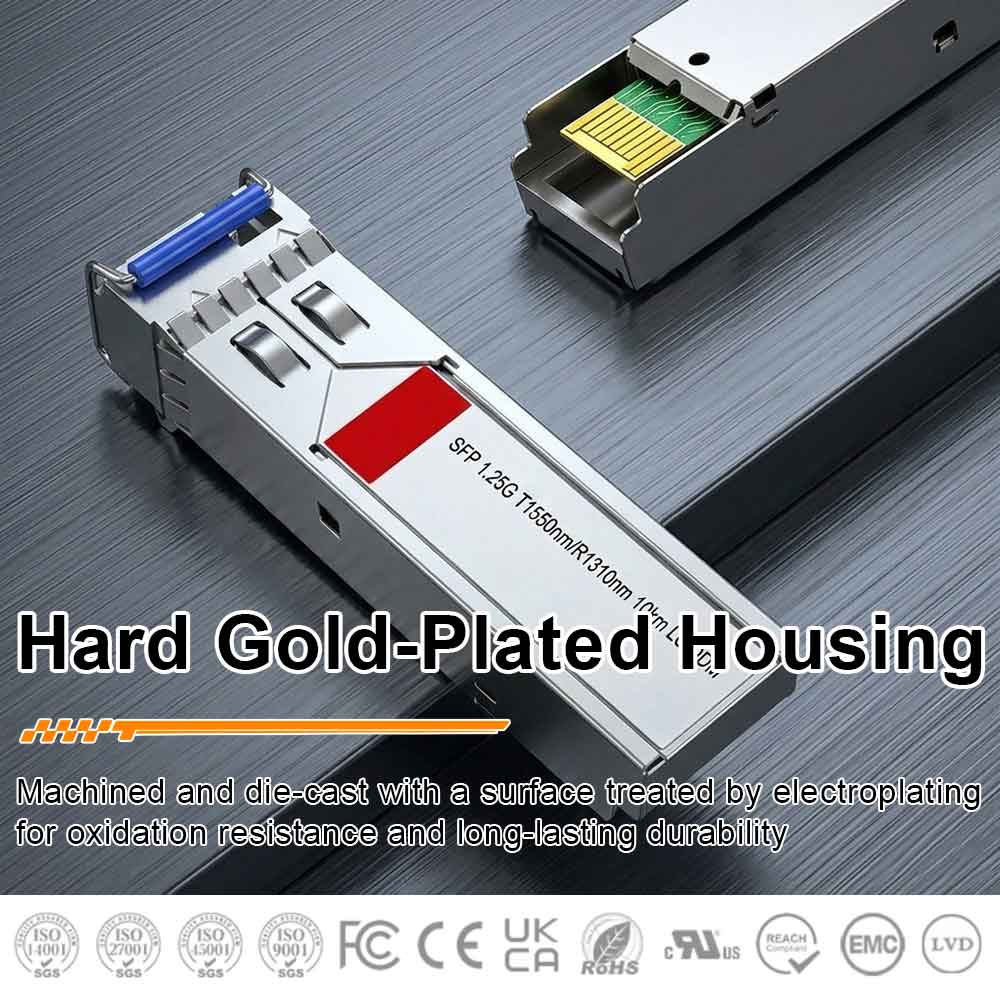

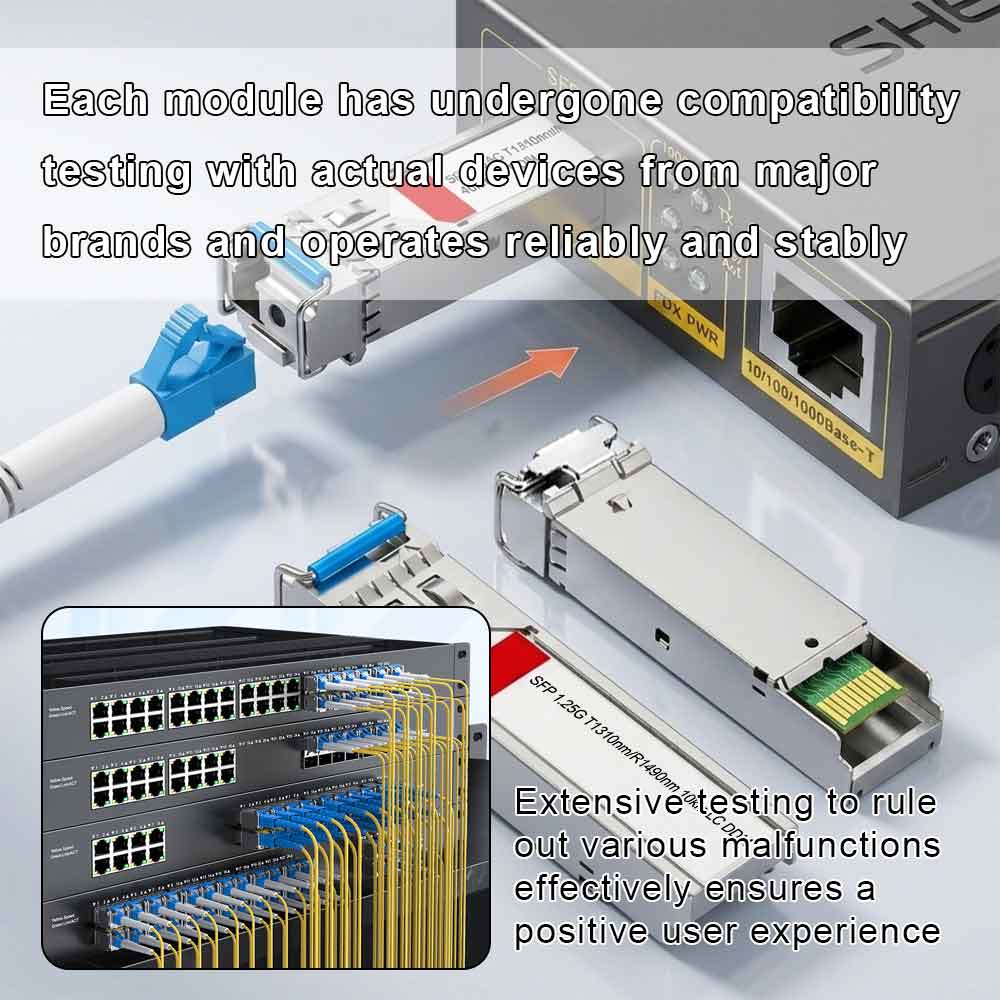

This 1.25G SFP single fiber bidirectional optical transceiver integrates DDM digital diagnostic monitoring function, supporting real-time detection of module temperature, transmit power, receiving sensitivity and supply voltage to guarantee stable fiber data transmission. It adopts hard gold-plated die-cast metal housing with electroplating anti-oxidation treatment, featuring reusable, stable voltage output and long service life. All modules pass strict compatibility and aging testing to eliminate common operating faults.
Compatible Brands
Plug-and-play compatible with over 99% mainstream communication equipment brands, including Cisco, Huawei, ZTE, H3C, Ruijie, TP-Link, D-Link, HP, Intel, Juniper, Brocade, Tenda, ZyXEL, NETGEAR, Alcatel-Lucent, Allied Telesis, Extreme, Nortel, TG-NET and more, no extra configuration required.
Application Scenarios
Suitable for gigabit managed switches, industrial fiber routers, long-distance enterprise LAN interconnection, campus fiber network construction, security video fiber transmission, FTTH fiber access, and remote factory monitoring system.
