100G QSFP28 Module Transceiver 10km 1310nm Single Fiber Duplex LC SFP Fibre Optical Network Terminal Module
MOQ: 1 Pcs (Min. Order)
SKU: QPL-QSFP-100G-10km-1310nm
| Product Name | QSFP28 100G Single-mode Fiber Optic Transceiver Module |
| Model | QPL-QSFP-100G-10km-1310nm |
| Package Type | QSFP28 |
| Connector Type | Duplex LC |
| Cable Type | Duplex Fiber Cable |
| Fiber Mode | Single-mode Fiber |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310 nm |
| Data Transfer Rate | 1G/10G/25G/40G/100G bps |
| Work Temperature | 0-70℃ |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | QSFP28 100G Single-mode Fiber Optic Transceiver Module |
| Model | QPL-QSFP-100G-10km-1310nm |
| Package Type | QSFP28 |
| Connector Type | Duplex LC |
| Cable Type | Duplex Fiber Cable |
| Fiber Mode | Single-mode Fiber |
| Transmission Distance | 10 km |
| Input Voltage | 3.3V |
| Transmit Power | 1 ~ 6 dBm |
| Transmit Wavelength | 1310 nm |
| Data Transfer Rate | 1G/10G/25G/40G/100G bps |
| Work Temperature | 0-70℃ |

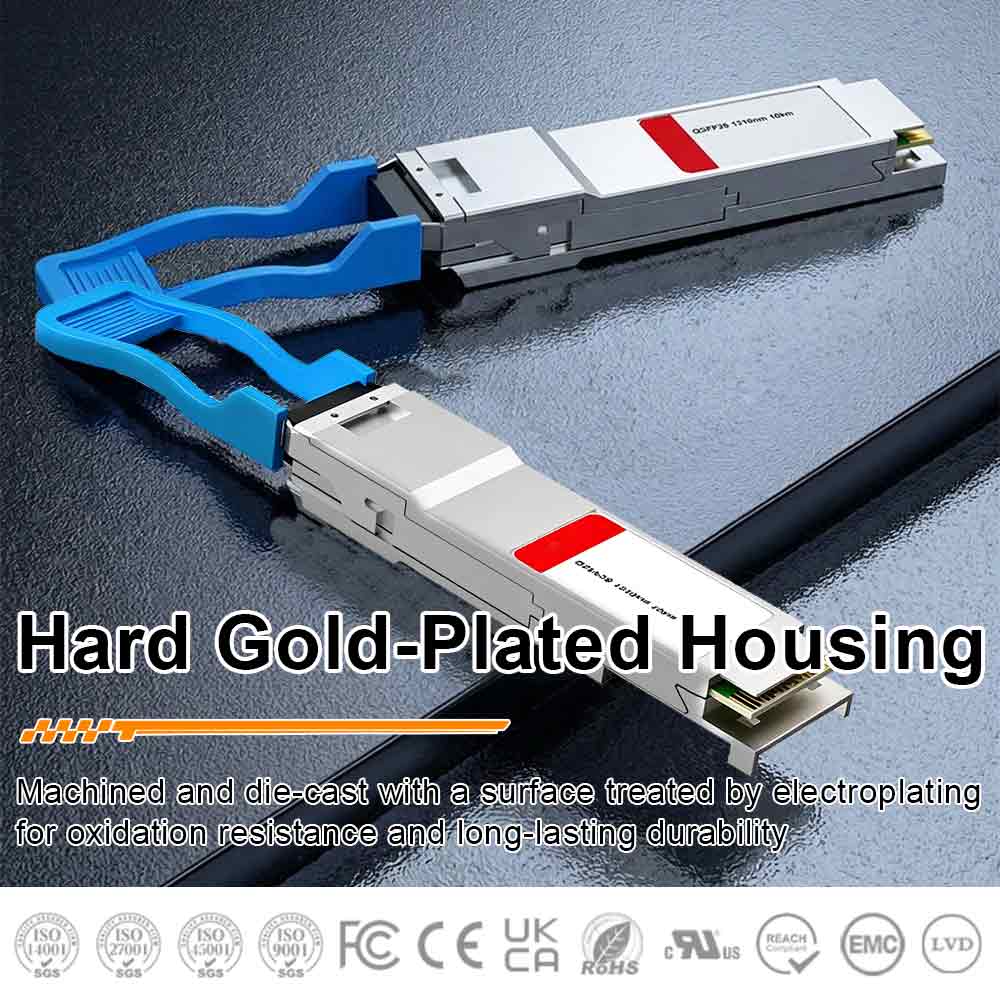

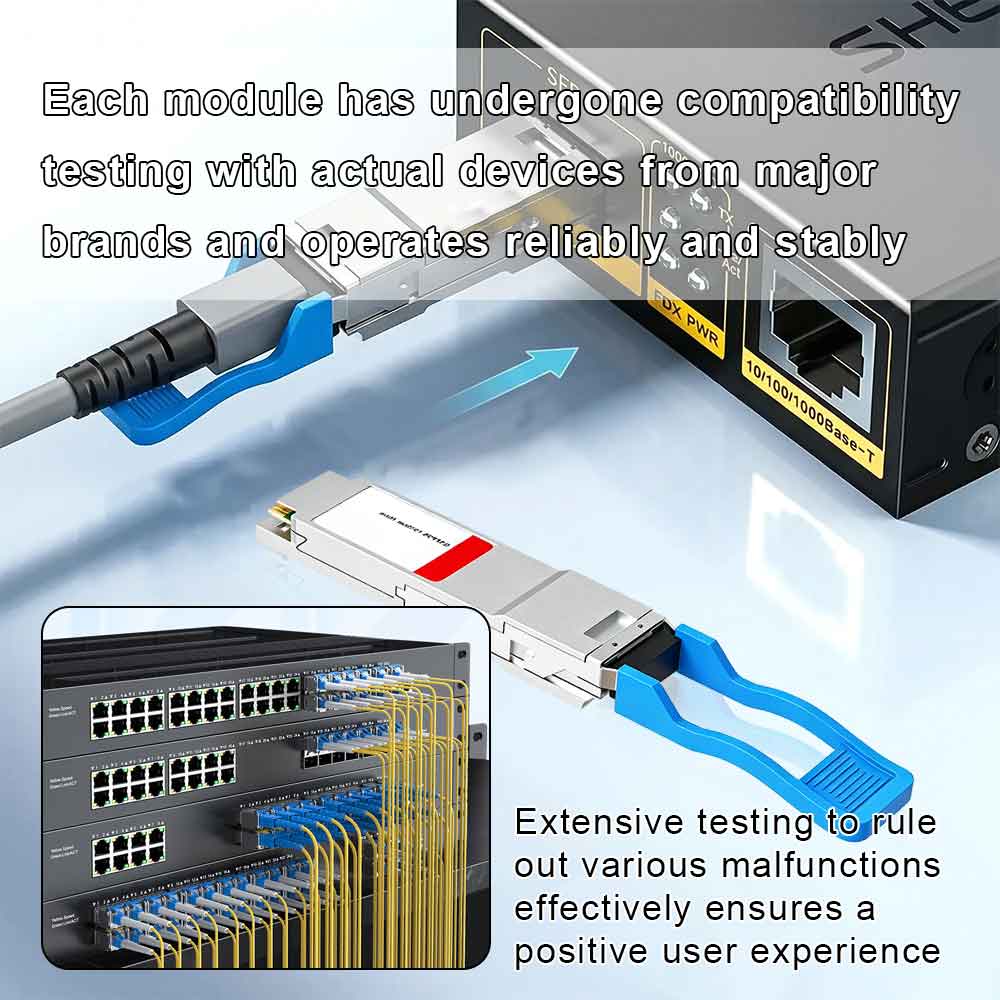

This QSFP28 fiber optic transceiver module adopts hard gold-plated die-cast housing, featuring stable voltage performance, recyclable durable structure and strictly screened raw materials. It supports multi-rate transmission from 1G/10G/25G/40G up to 100Gbps, with 1310nm transmission wavelength, 1~6dBm transmit power and receiving sensitivity lower than -33dBm. Each module passes full compatibility and stability testing to avoid operational malfunctions, delivering consistent, long-term signal transmission performance.
Compatible Brands
Fully compatible with mainstream communication device brands including Cisco, Huawei, ZTE, H3C, Alcatel-Lucent, Brocade, D-Link, HP, Intel, Juniper, Ruijie, TP-Link, Tenda, ZyXEL and other 99% network equipment brands on the market, plug-and-play without extra configuration.
Application Scenarios
Suitable for data center interconnection, enterprise core switch networking, campus fiber communication, server rack high-speed transmission, industrial optical network deployment, large-scale LAN construction and long-distance fiber link transmission within 10km.
