40 Gigabit Ethernet QSFP+ Pluggable Transceivers 150m 850nm Multimode Duplex LC Optical Transceiver Module
MOQ: 1 Pcs (Min. Order)
SKU: QPL-QSFP+-40G-150m-850nm
| Product Name | QSFP+ 40G Multimode Fiber Optic Transceiver Module |
| Model | QPL-QSFP+-40G-150m-850nm |
| Package Type | QSFP+ |
| Connector Type | Duplex LC |
| Cable Type | Duplex Multimode Fiber Patch Cord |
| Fiber Mode | Multimode Fiber |
| Transmission Distance | 150 m |
| Input Voltage | 3.3V |
| Transmit Power | -6 ~ 2.4 dBm |
| Transmit Wavelength | 850 nm |
| Data Transfer Rate | 40Gbps |
| Operating Temperature | 0–70 ℃ |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | QSFP+ 40G Multimode Fiber Optic Transceiver Module |
| Model | QPL-QSFP+-40G-150m-850nm |
| Package Type | QSFP+ |
| Connector Type | Duplex LC |
| Cable Type | Duplex Multimode Fiber Patch Cord |
| Fiber Mode | Multimode Fiber |
| Transmission Distance | 150 m |
| Input Voltage | 3.3V |
| Transmit Power | -6 ~ 2.4 dBm |
| Transmit Wavelength | 850 nm |
| Data Transfer Rate | 40Gbps |
| Operating Temperature | 0–70 ℃ |

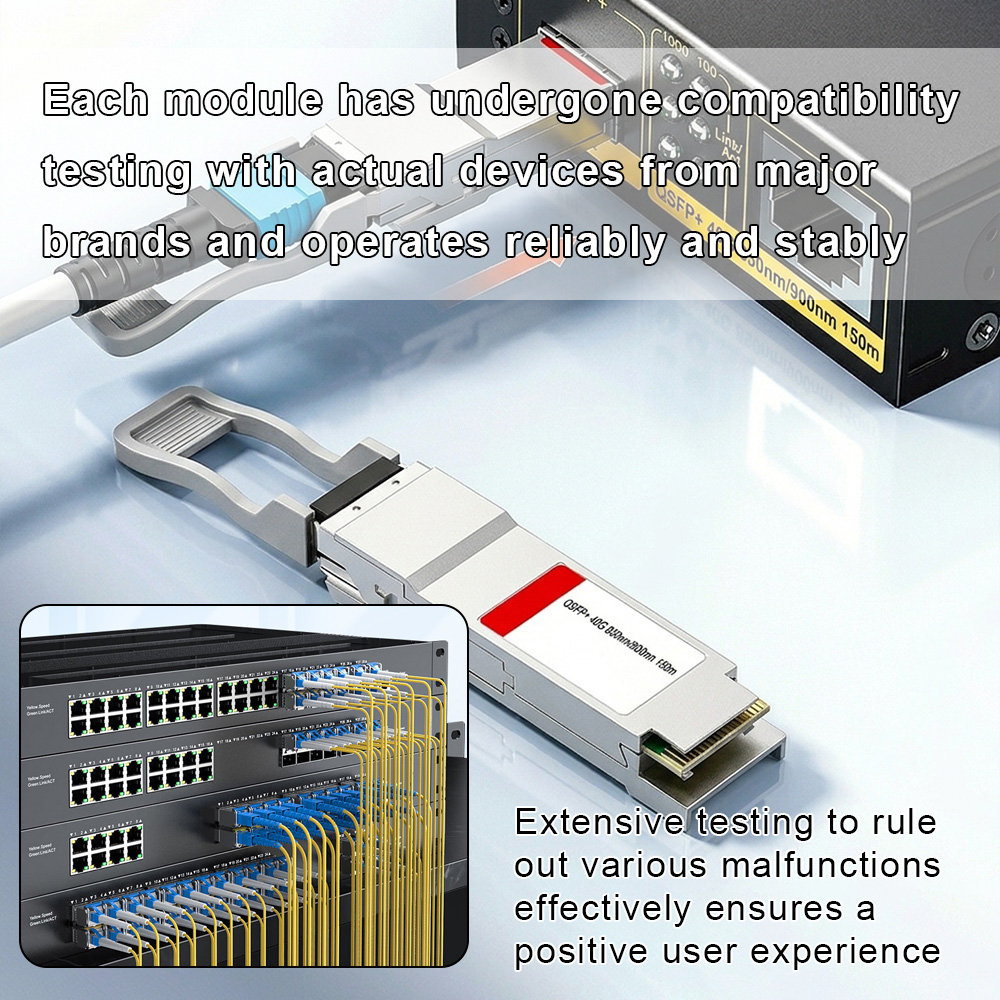

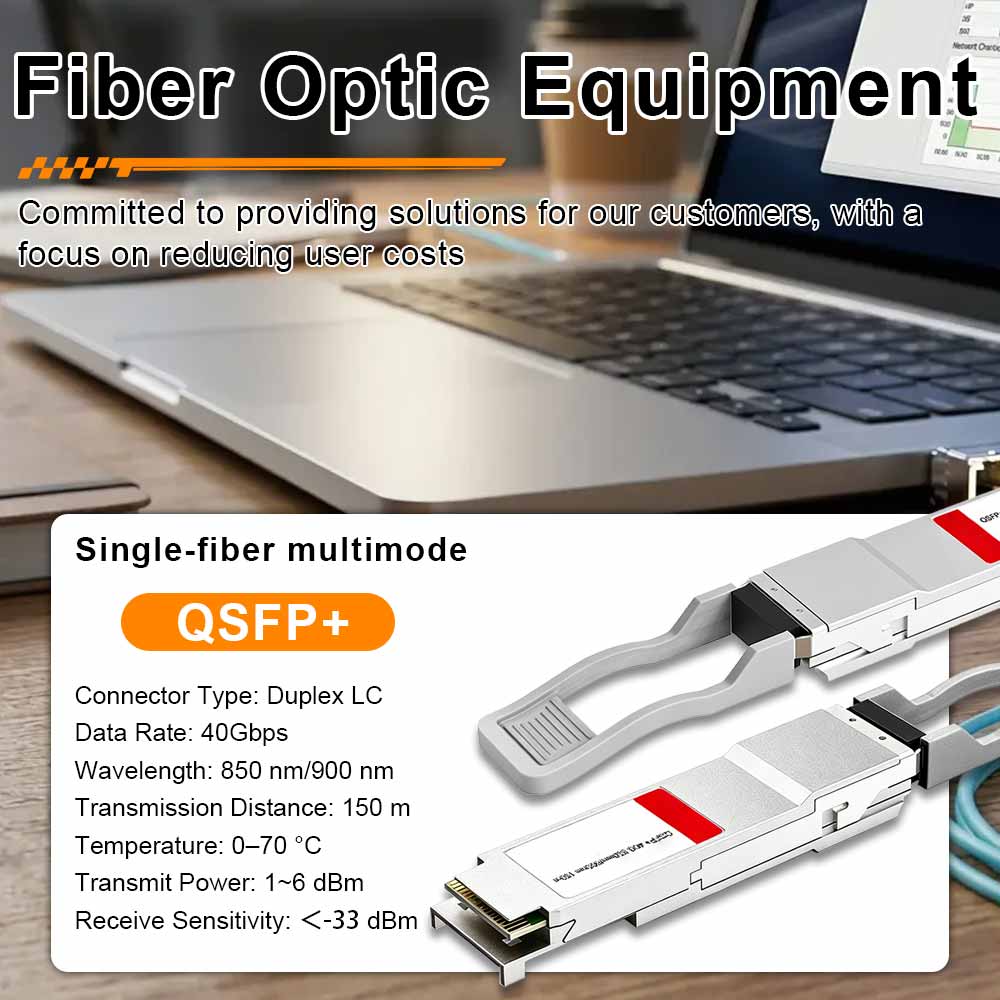

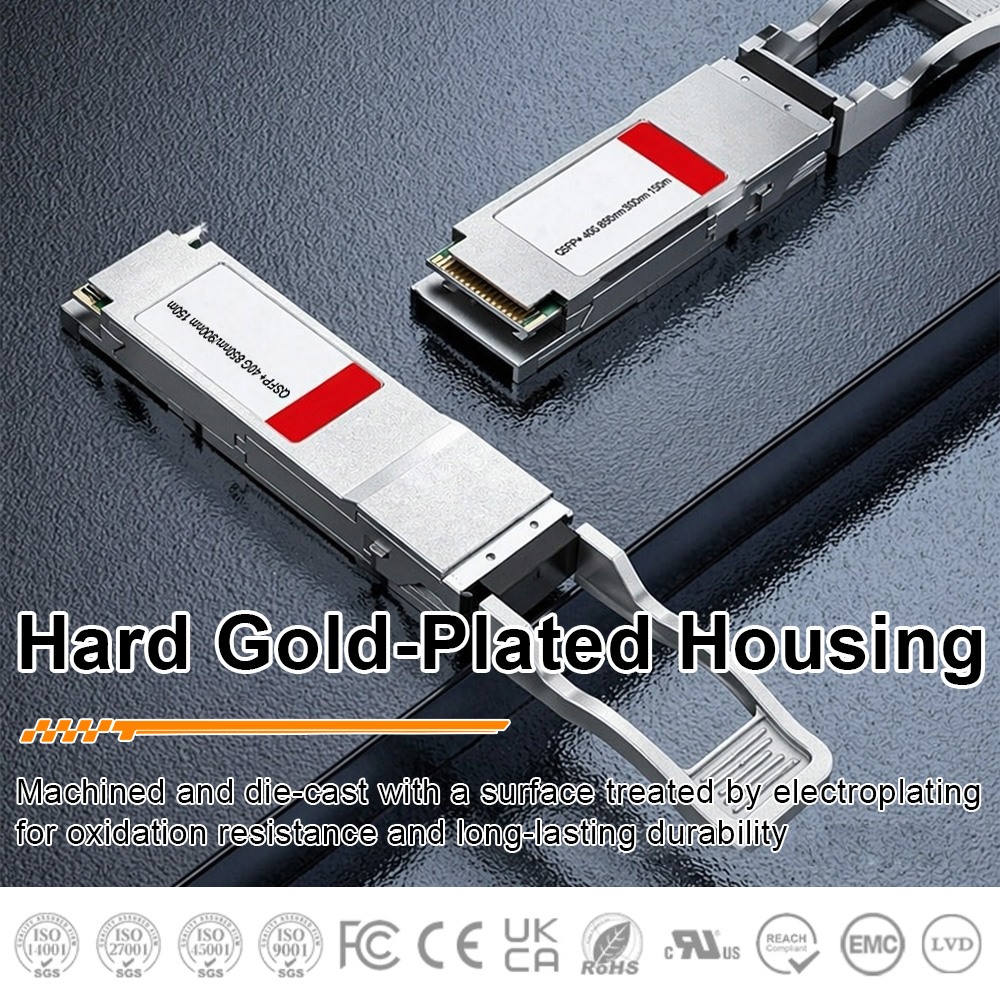

This QSFP+ fiber optic transceiver module adopts die-cast hard gold-plated shell with electroplating anti-oxidation treatment, featuring stable 3.3V input voltage, recyclable structure and premium selected raw materials. It works at 850nm transmitting wavelength with transmit power of -6~2.4dBm and receiving sensitivity lower than -33dBm, supporting stable 40Gbps high-speed data transmission up to 150 meters over multimode fiber. Each module passes strict compatibility and fault screening tests to eliminate operational failures, with wide working temperature range of 0–70℃ for stable long-term signal transmission.
Compatible Brands
Plug-and-play compatible with 99% mainstream communication devices worldwide, including Cisco, Huawei, ZTE, H3C, Alcatel-Lucent, Allied Telesis, Brocade, D-Link, Extreme, HP, Intel, Juniper, Netcore, NETGEAR, Netmoon, Nortel, PacketFront, Riverstone, Ruijie, SMC, Tenda, TG-NET, TP-LINK, ZyXEL, no extra configuration required.
Application Scenarios
Perfect for short-distance data center internal interconnection, enterprise cabinet switch fiber networking, server high-speed link transmission, indoor campus LAN construction, short-range industrial optical network and 150m multimode fiber channel deployment.
