| Product Name |
155M SFP BIDI Single Mode Single Fiber LC SX Fiber Optic Transceiver Module |
| Model |
BB-SFP-BIDI-155M |
| Package Type |
SFP BIDI |
| Interface Type |
LC SX Simplex Single Fiber |
| Cable Type |
Single Mode LC SX Single Fiber Patch Cord |
| Transmission Fiber Type |
Single Mode Fiber (SMF) |
| Transmission Distance |
2/15/40/80km |
| Input Voltage |
3.3V |
| Transmit Power |
2km -20~-14dbm； 15km -15~-8dbm； 40km -5~-0dbm |
| Transmit Wavelength |
TX1310nm / RX1550nm |
| Data Transfer Rate |
155Mbps |

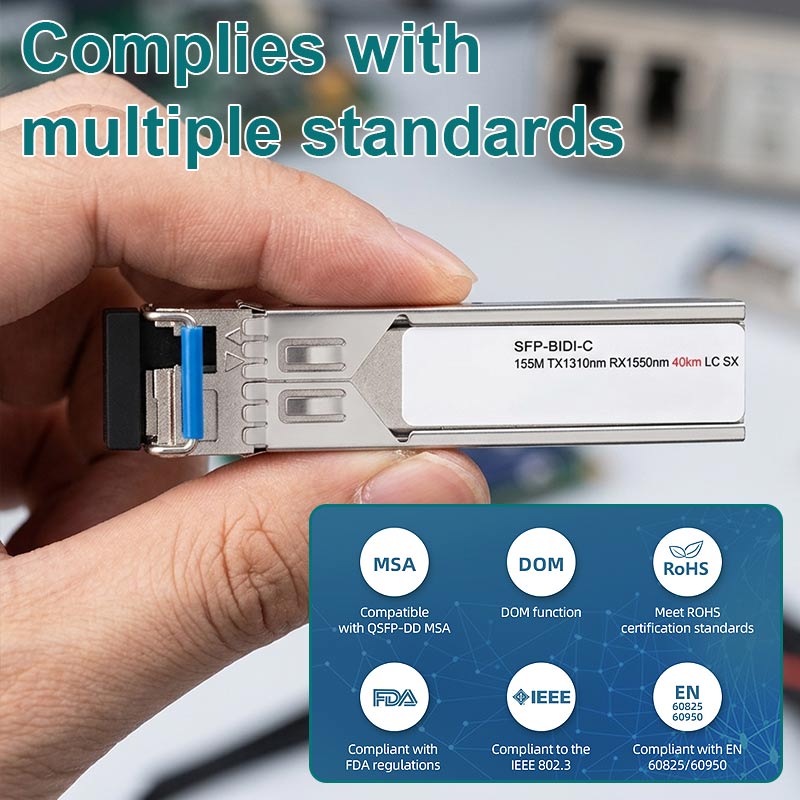

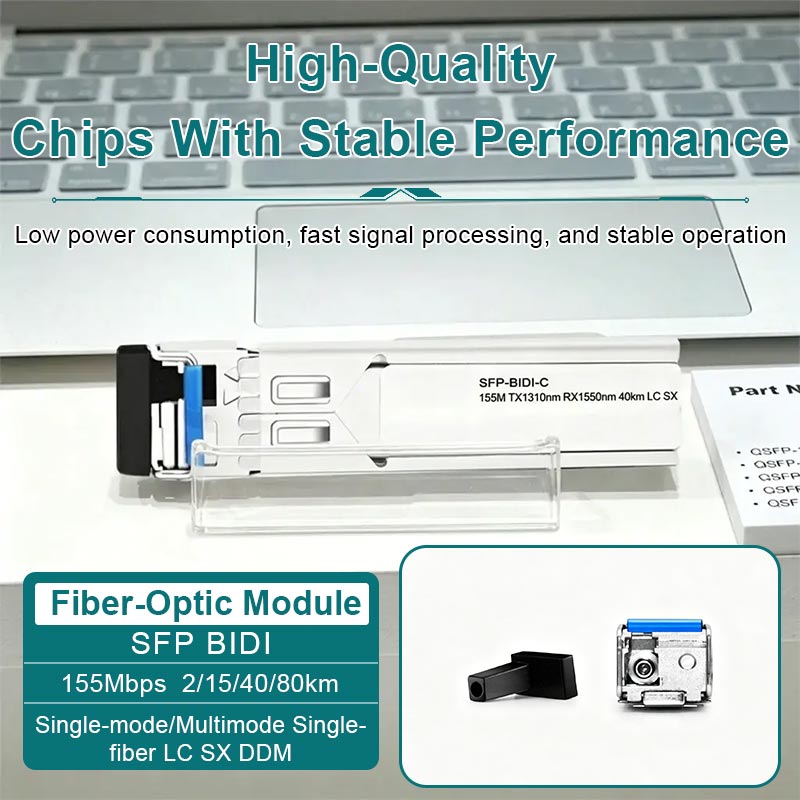

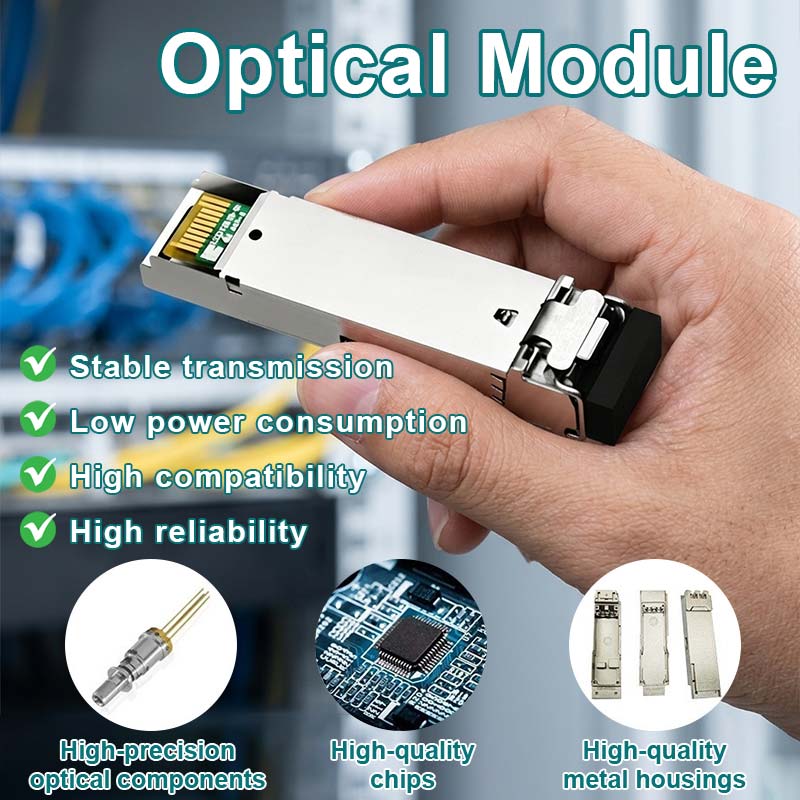

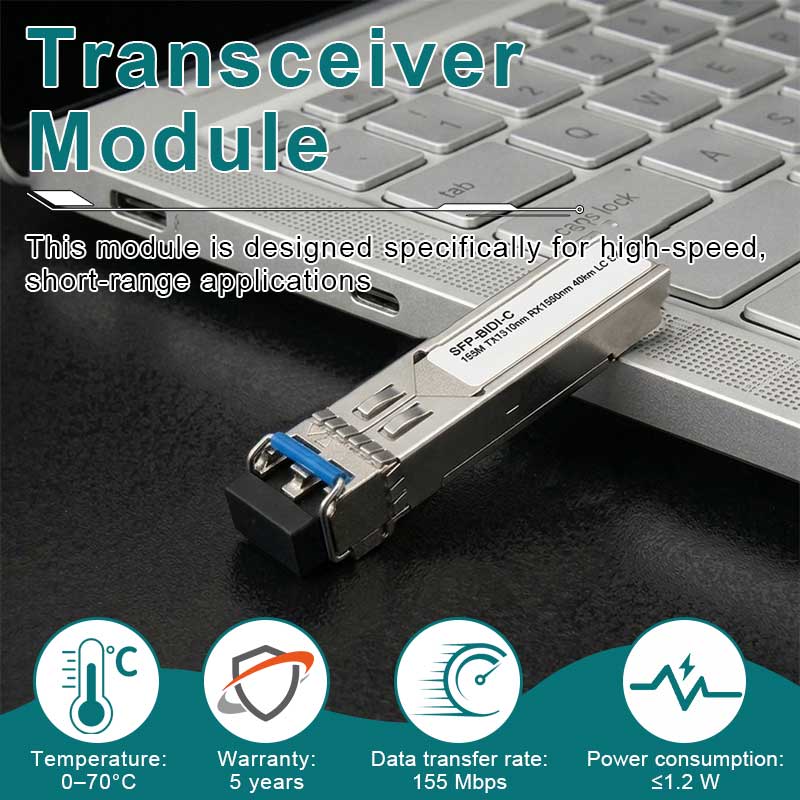

This hot-swappable SFP BIDI fiber optic transceiver is designed for medium-distance fiber transmission scenarios. It adopts premium chips and high-precision optical components, delivering fast signal processing, stable data transmission and low power consumption (≤1.2W). It adopts single-mode single-fiber bidirectional transmission technology, supporting 155Mbps data transfer up to 40km via LC simplex interface, and built-in DDM digital diagnostic monitoring function for real-time parameter reading. The metal housing supports wide operating temperature of 0°C–70°C and comes with a 5-year warranty, fully compliant with MSA, IEEE 802.3, RoHS, FDA and EN 60825/60950 standards. It features ultra-wide compatibility with mainstream network brands including Huawei, Cisco, H3C, ZTE, Juniper, Arista, Dell, HP and more. It is widely applied to FTTH fiber access, campus backbone network, park surveillance network, enterprise long-distance LAN and medium-distance small base station interconnection.
>
