Industrial Autonomous Guided Vehicle 150kg Load Lifting AMR AGV Robot with 10.1 Inch Touch Screen for Factory & Hotel
MOQ: 1 Pcs (Min. Order)
SKU: QPL-RB-14
| Model | QPL-RB-14 |
| Product Name | Automated Guided Vehicle Robot |
| Rated Load Capacity | 150 kg |
| Lifting Height | 50 mm |
| Lifting Speed | 5 mm/s |
| Display Parameter | 10.1-inch smart touch screen, resolution 1280*720 |

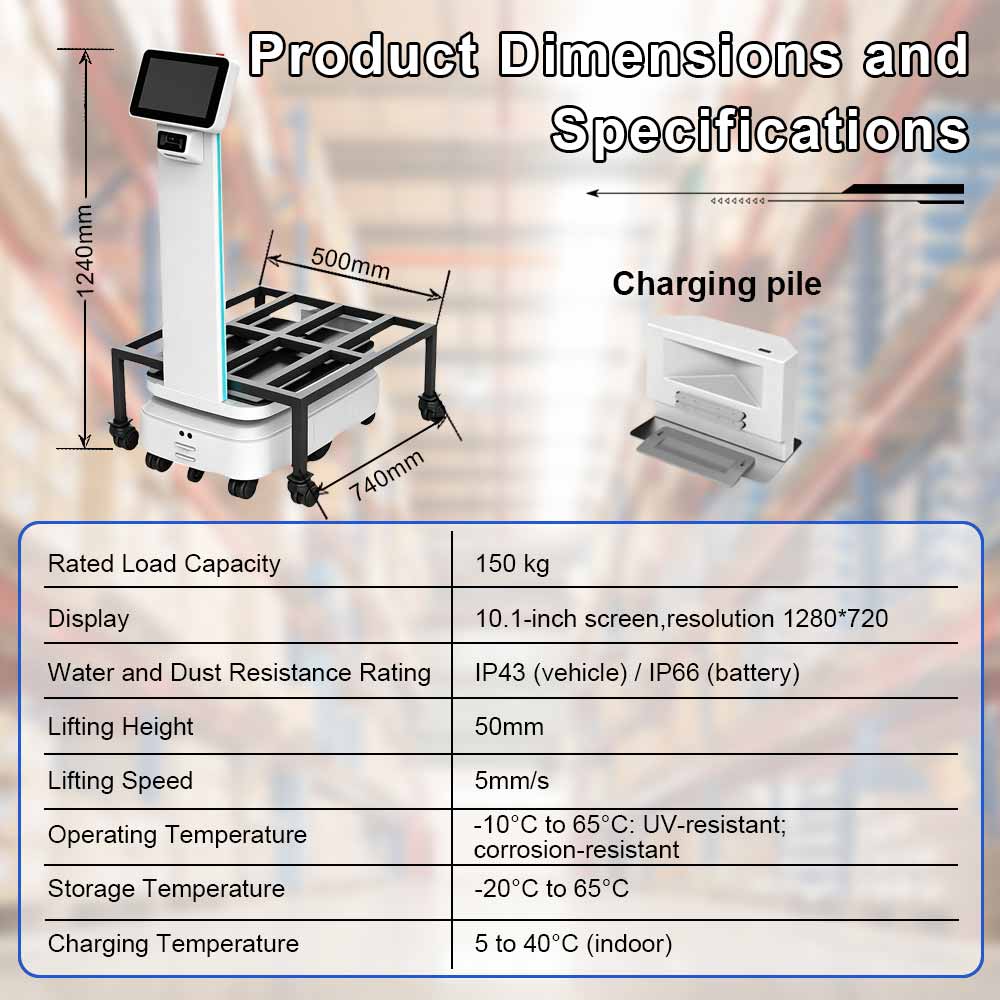

| Overall Dimension | 740mm × 500mm × 1240mm |
| Water & Dust Resistance Rating | IP43 (vehicle body) / IP66 (battery pack) |
| Operating Temperature | -10°C ~ 65°C, UV-resistant & corrosion-resistant |
| Storage Temperature | -20°C ~ 65°C |
| Charging Temperature | 5°C ~ 40°C (indoor charging only) |

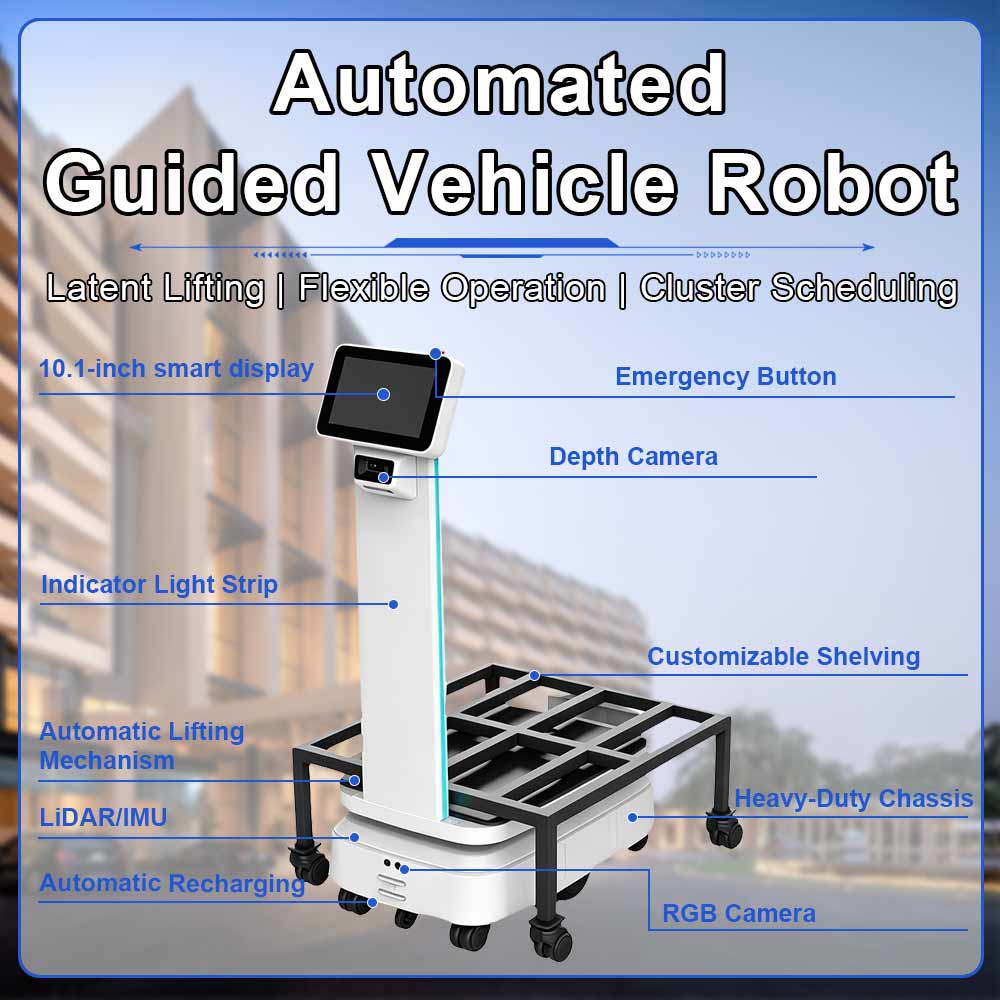

| Built-in Hardware & Sensors | LiDAR/IMU, Depth Camera, RGB Camera, Emergency Stop Button, Indicator Light Strip, Heavy-Duty Chassis, Automatic Lifting Mechanism, Auto Charging Module |

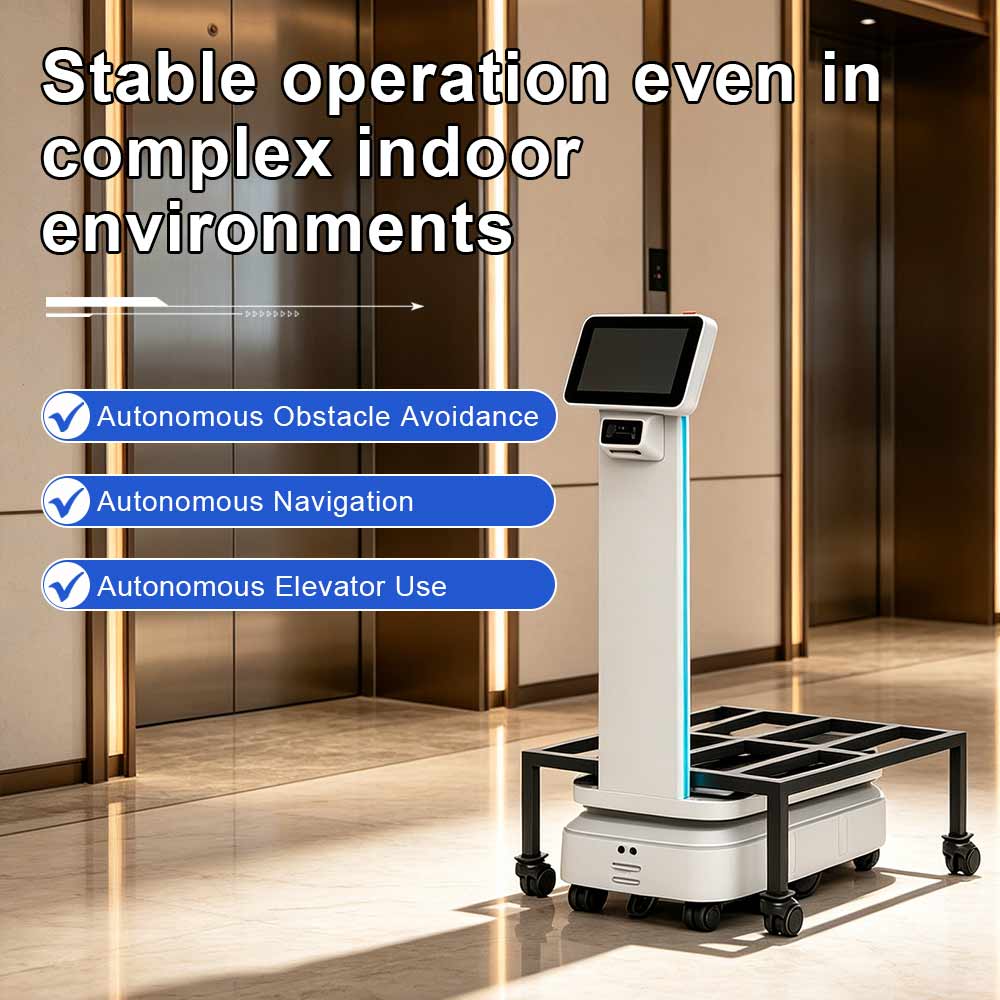

| Core Functional Features | Autonomous Navigation, Autonomous Obstacle Avoidance, Autonomous Elevator Access, Precise Speed Control, Automatic Return Charging, Latent Lifting, Cluster Scheduling, Quick On-site Deployment |
| Applicable Ground Surfaces | Concrete Floors, Wood Floors, Marble Floors, Thick Carpets |
| Customizable Accessory | Customizable Metal Loading Frame/Shelving |
| Applicable Scenarios | Warehouses, Factories, Hotels, Offices, Commercial Buildings, Property Management |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Model | QPL-RB-14 |
| Product Name | Automated Guided Vehicle Robot |
| Rated Load Capacity | 150 kg |
| Lifting Height | 50 mm |
| Lifting Speed | 5 mm/s |
| Display Parameter | 10.1-inch smart touch screen, resolution 1280*720 |
| Overall Dimension | 740mm × 500mm × 1240mm |
| Water & Dust Resistance Rating | IP43 (vehicle body) / IP66 (battery pack) |
| Operating Temperature | -10°C ~ 65°C, UV-resistant & corrosion-resistant |
| Storage Temperature | -20°C ~ 65°C |
| Charging Temperature | 5°C ~ 40°C (indoor charging only) |
| Built-in Hardware & Sensors | LiDAR/IMU, Depth Camera, RGB Camera, Emergency Stop Button, Indicator Light Strip, Heavy-Duty Chassis, Automatic Lifting Mechanism, Auto Charging Module |
| Core Functional Features | Autonomous Navigation, Autonomous Obstacle Avoidance, Autonomous Elevator Access, Precise Speed Control, Automatic Return Charging, Latent Lifting, Cluster Scheduling, Quick On-site Deployment |

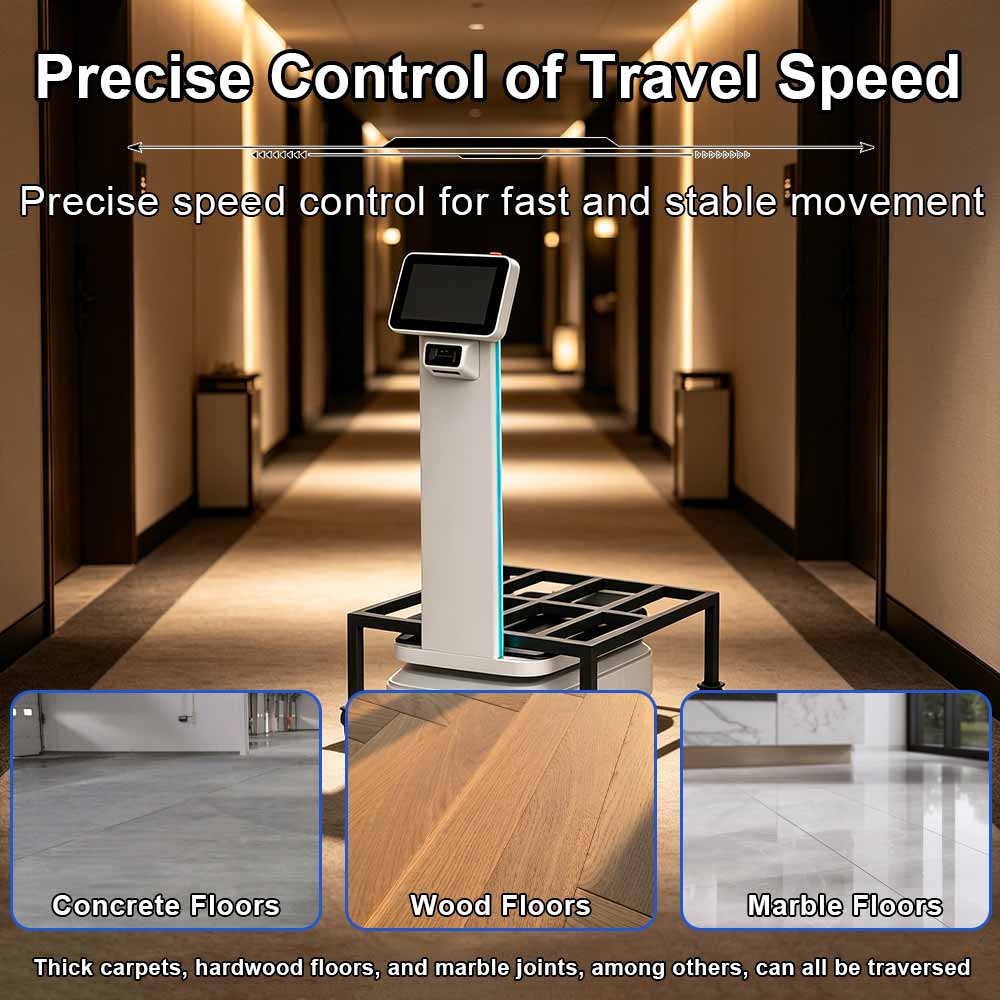

| Applicable Ground Surfaces | Concrete Floors, Wood Floors, Marble Floors, Thick Carpets |
| Customizable Accessory | Customizable Metal Loading Frame/Shelving |
| Applicable Scenarios | Warehouses, Factories, Hotels, Offices, Commercial Buildings, Property Management |

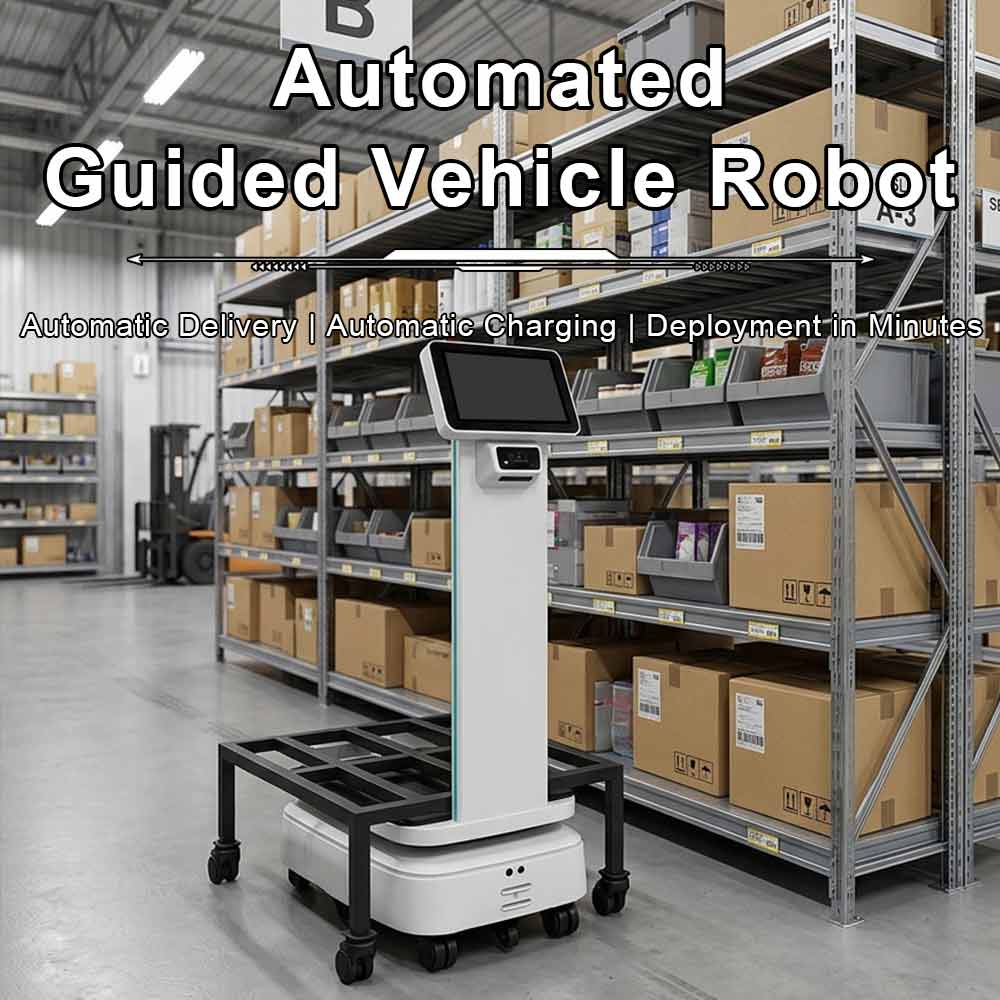

This automated guided vehicle robot is a SLAM-based AMR with 150kg rated load and 50mm latent lifting function at 5mm/s lifting speed. Equipped with a 10.1-inch 1280*720 touch screen, LiDAR, IMU, depth & RGB cameras, it realizes autonomous navigation, intelligent obstacle avoidance and automatic elevator access. It supports precise speed adjustment and smoothly travels on concrete, wood, marble floors and thick carpets. With IP43 vehicle / IP66 battery waterproof dustproof grade and wide temperature tolerance, it features automatic recharging, emergency stop button, customizable shelving and cluster scheduling, quickly deployed within minutes for factories, warehouses, hotels, offices and commercial buildings.
