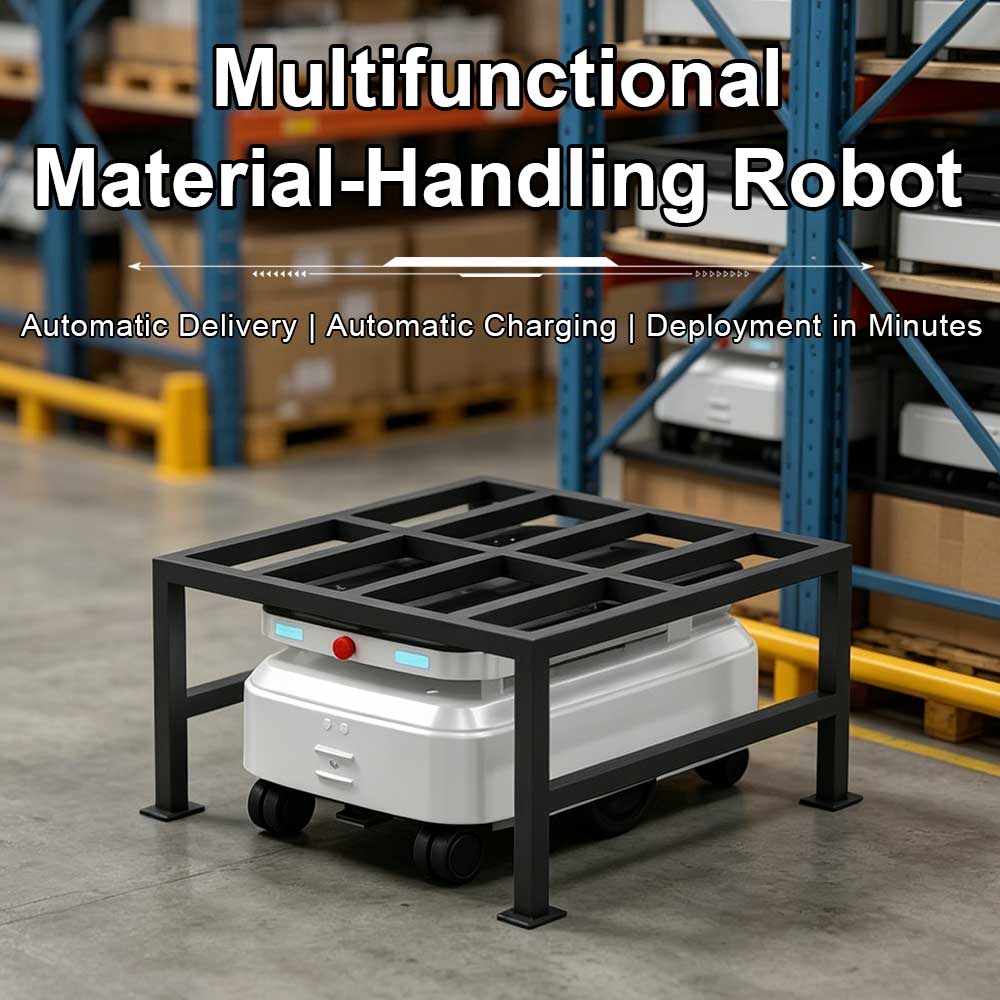

Multifunctional Indoor Navigation AGV Robot AMR with Automatic Charging for Factory Warehouse Automatic Cargo Delivery
MOQ: 1 Pcs (Min. Order)
SKU: QPL-RB-12
| Model | QPL-RB-12 |
| Product Name | Multifunctional Autonomous Material-Handling AGV Robot |
| Rated Load Capacity | 150 kg |
| Lifting Height | 50 mm |
| Lifting Speed | 5 mm/s |
| Water & Dust Resistance Rating | IP43 (vehicle) / IP66 (battery) |
| Operating Temperature | -10°C to 65°C; UV-resistant & corrosion-resistant |
| Storage Temperature | -20°C to 65°C |
| Charging Temperature | 5 to 40°C (indoor only) |

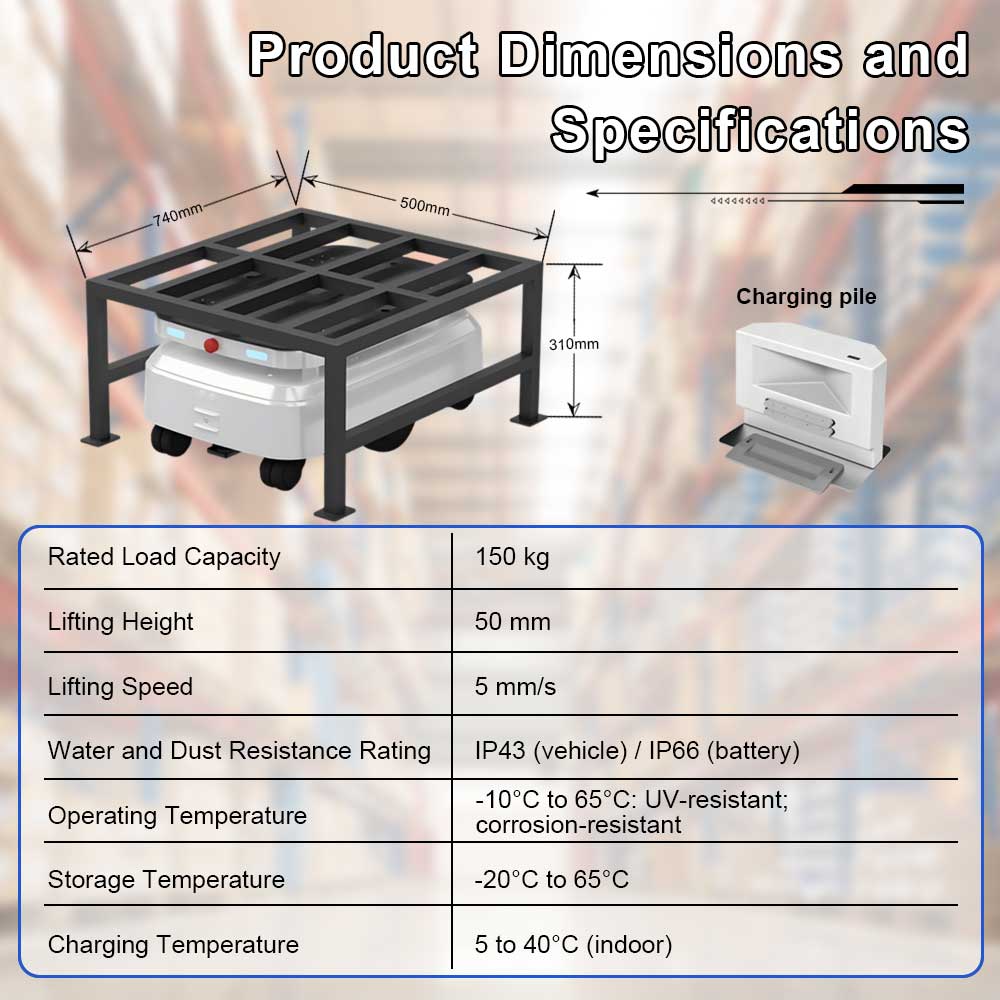

| Overall Dimension (Frame) | 740mm × 500mm × 310mm |
| Core Functions | Autonomous Navigation, Obstacle Avoidance, Auto Elevator Access, Auto Lifting, Automatic Charging, Cluster Scheduling |

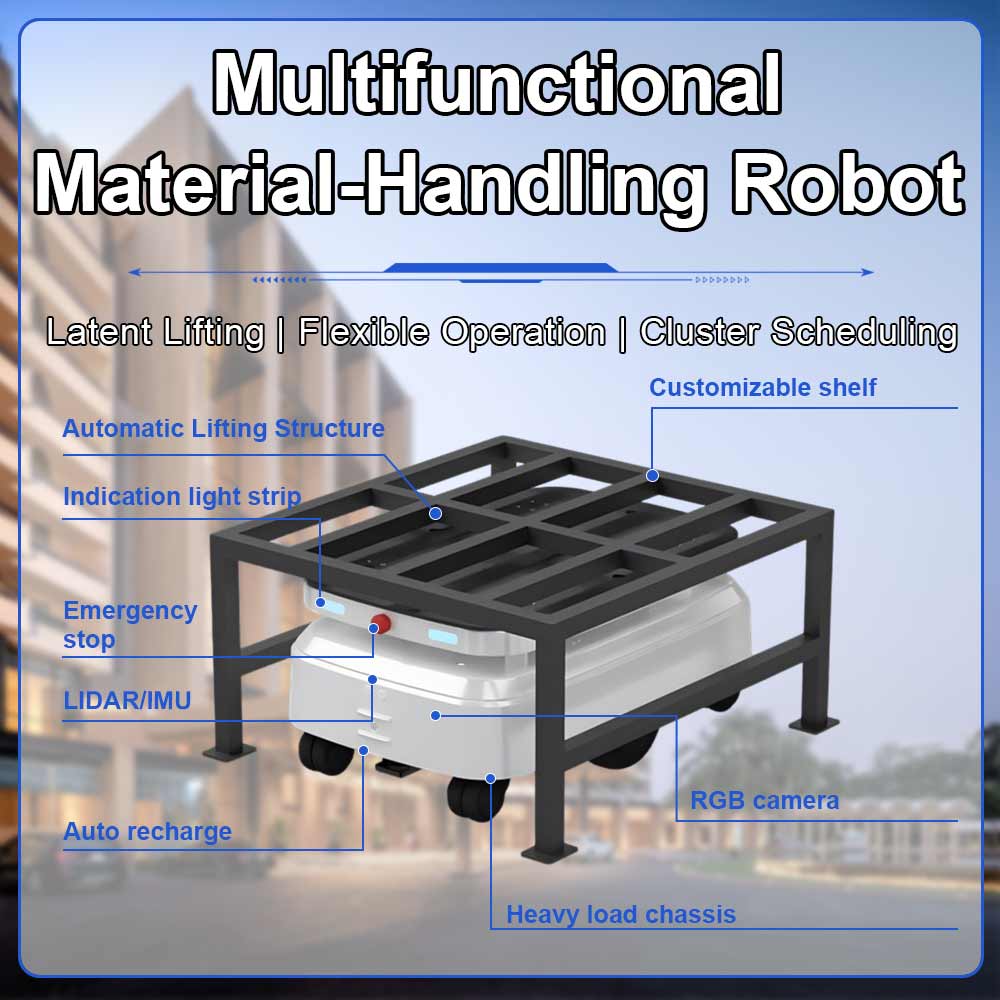

| Hardware Configuration | LiDAR/IMU, RGB Camera, Emergency Stop Button, Indicator Light Strip, Heavy Load Chassis, Customizable Loading Shelf |

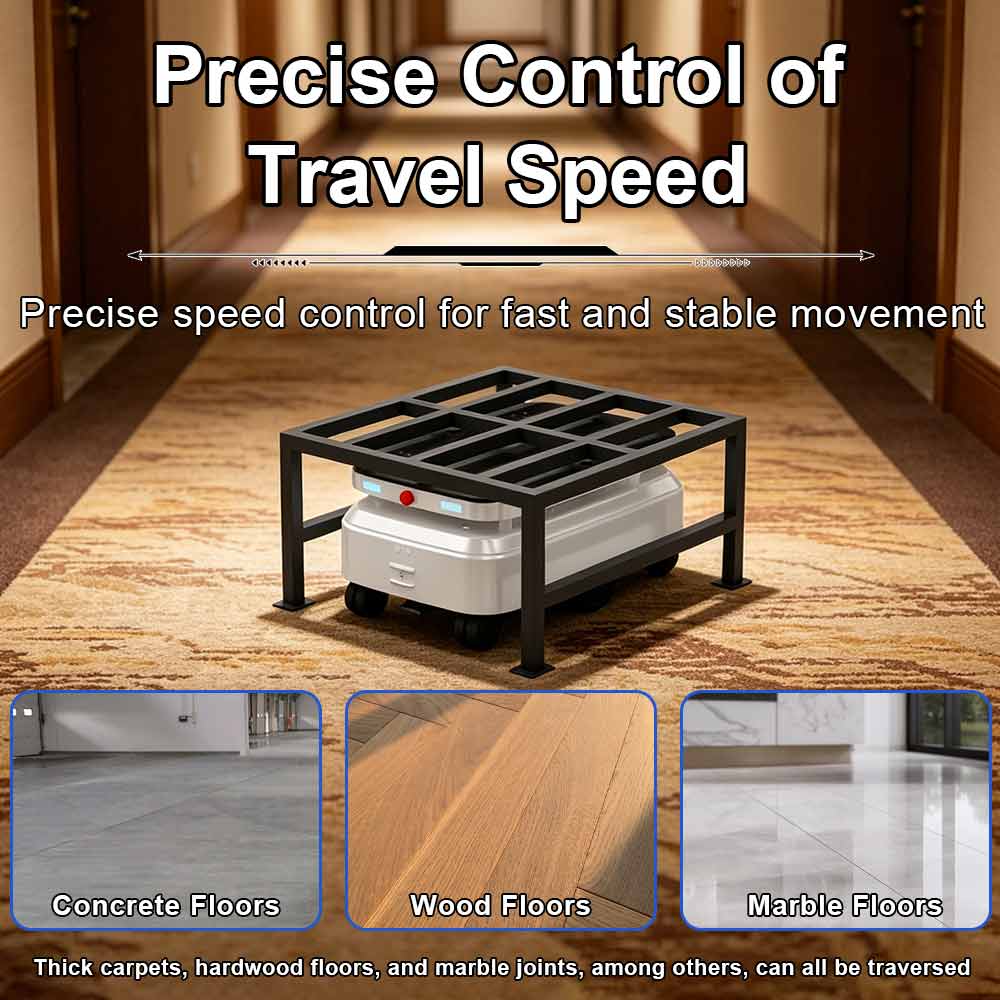

| Applicable Ground | Concrete Floors, Wood Floors, Marble Floors, Thick Carpets |
| Application Scenarios | Factories, Warehouses, Hotels, Offices, Commercial Properties |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Model | QPL-RB-12 |
| Product Name | Multifunctional Autonomous Material-Handling AGV Robot |
| Rated Load Capacity | 150 kg |
| Lifting Height | 50 mm |
| Lifting Speed | 5 mm/s |
| Water & Dust Resistance Rating | IP43 (vehicle) / IP66 (battery) |
| Operating Temperature | -10°C to 65°C; UV-resistant & corrosion-resistant |
| Storage Temperature | -20°C to 65°C |
| Charging Temperature | 5 to 40°C (indoor only) |
| Overall Dimension (Frame) | 740mm × 500mm × 310mm |
| Core Functions | Autonomous Navigation, Obstacle Avoidance, Auto Elevator Access, Auto Lifting, Automatic Charging, Cluster Scheduling |
| Hardware Configuration | LiDAR/IMU, RGB Camera, Emergency Stop Button, Indicator Light Strip, Heavy Load Chassis, Customizable Loading Shelf |
| Applicable Ground | Concrete Floors, Wood Floors, Marble Floors, Thick Carpets |
| Application Scenarios | Factories, Warehouses, Hotels, Offices, Commercial Properties |

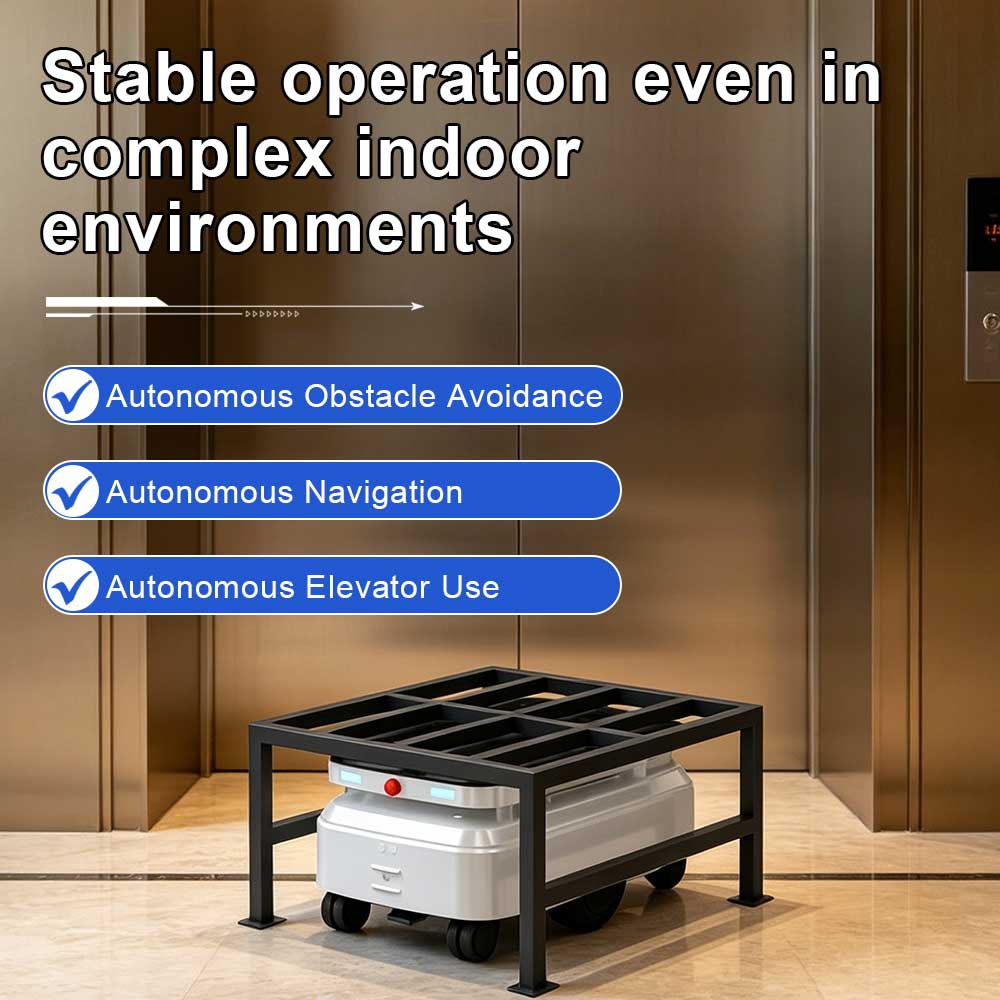

This Autonomous Mobile Robot supports a maximum 150kg rated load with 50mm hidden lifting function and 5mm/s stable lifting speed. Equipped with LiDAR, RGB camera and IMU modules, it realizes autonomous navigation, intelligent obstacle avoidance and automatic elevator access, ensuring steady operation in complex multi-floor indoor environments. It supports automatic charging with wide temperature adaptability and IP43 vehicle / IP66 battery waterproof & dustproof grade, suitable for long-hour industrial material transportation.
