Lifting Composite Mobile Collaborative Robot for Automated Assembly
MOQ: 1 Pcs (Min. Order)
SKU: BB-RB-04
| Model | BB-RB-04 |
| Product Name | Lifting Composite Robot |
| Navigation accuracy | Laser SLAM ±5mm, 0.05°; QR code ±2mm, 0.02° |
| Repeat Positioning Accuracy | ±0.02mm(with 3D vision); ±0.05mm(with 2D vision) |
| Robot Arm Load | 3kg-25kg(optional) |
| Continuous Working Time | 5 hours |
| Vision Compatibility | 2D/3D vision systems |
| Core Technologies | Visual AI, high-precision positioning, digital twin technology, multi-mode navigation |
| Core Features | Autonomous navigation, lifting platform integration, highly customizable, high-precision control, multi-voltage output |
| Applications | Lifting & assembly, parts transfer, material handling |
| Warranty | 1Year |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Model | BB-RB-04 |
| Product Name | Lifting Composite Robot |
| Navigation accuracy | Laser SLAM ±5mm, 0.05°; QR code ±2mm, 0.02° |
| Repeat Positioning Accuracy | ±0.02mm(with 3D vision); ±0.05mm(with 2D vision) |
| Robot Arm Load | 3kg-25kg(optional) |
| Continuous Working Time | 5 hours |
| Vision Compatibility | 2D/3D vision systems |
| Core Technologies | Visual AI, high-precision positioning, digital twin technology, multi-mode navigation |
| Core Features | Autonomous navigation, lifting platform integration, highly customizable, high-precision control, multi-voltage output |
| Applications | Lifting & assembly, parts transfer, material handling |
| Warranty | 1Year |

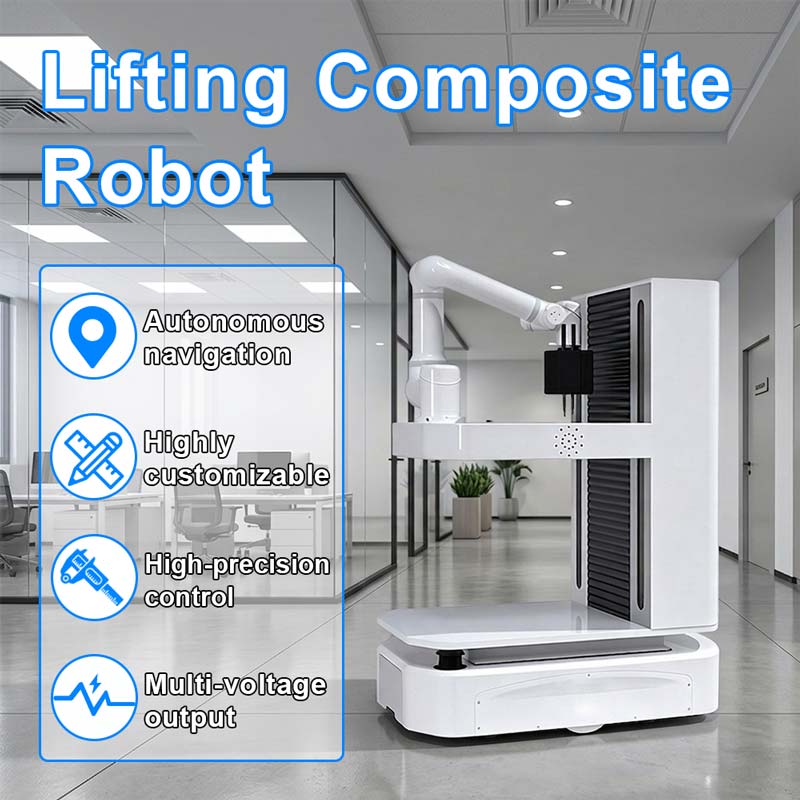

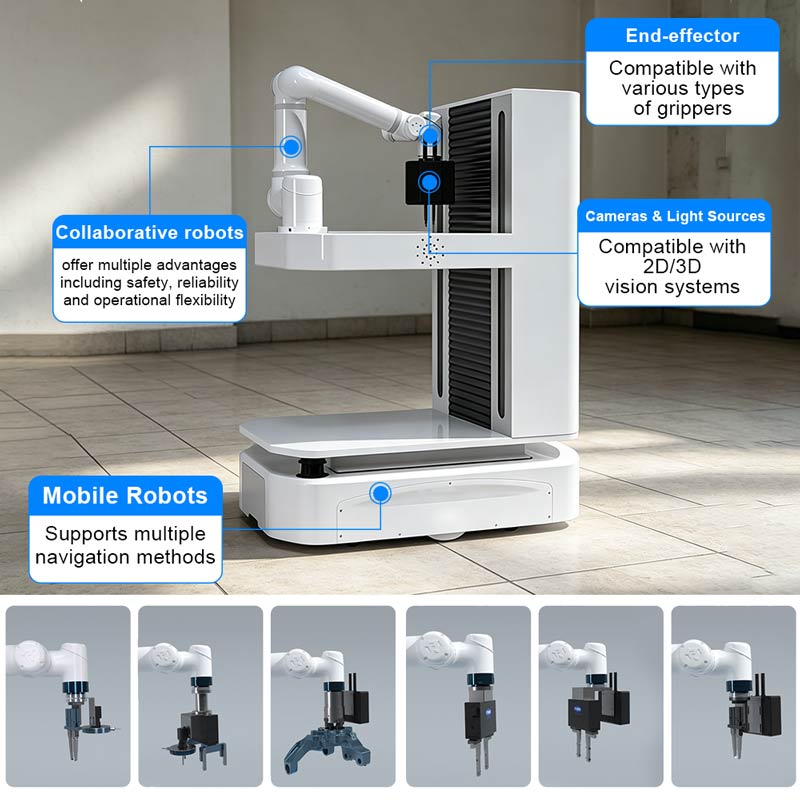

This lifting composite robot combines an autonomous mobile base with a vertical lifting platform and collaborative robotic arm, designed for flexible automated assembly and material handling.

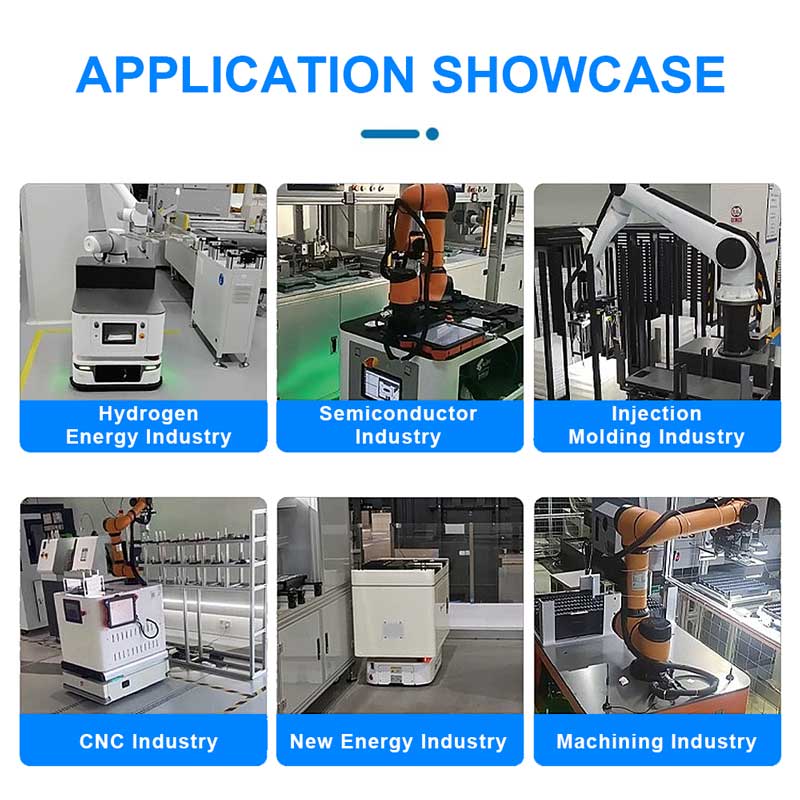

Equipped with multi-mode navigation (Laser SLAM / QR Code) and compatible with 2D/3D vision systems, it achieves high-precision positioning down to ±0.02mm (with 3D vision). Featuring customizable payload (3–25kg), multi-voltage support, and 5 hours of continuous operation, it streamlines lifting, assembly, and parts transfer tasks. Safe, reliable, and easy to deploy, it excels in industries including semiconductors, CNC machining, injection molding, and new energy production.
