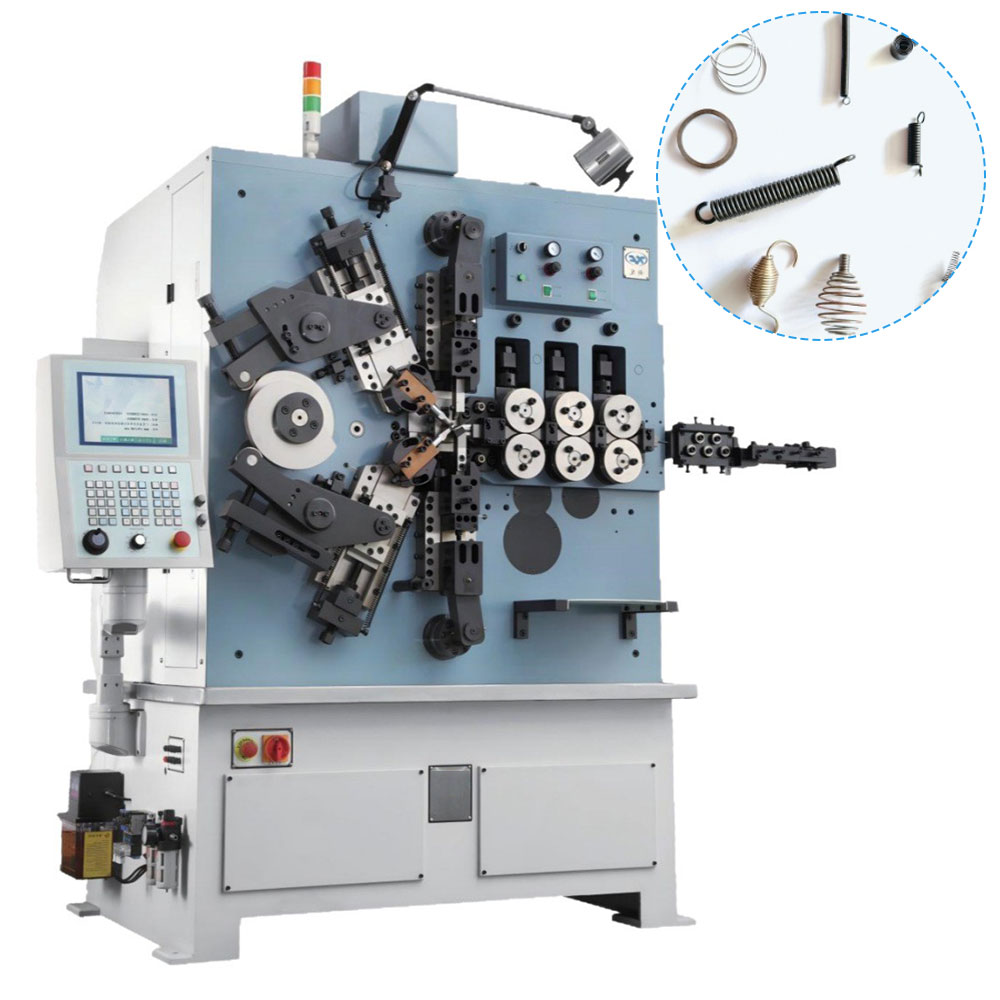

High‑Precision 5‑Axis CNC Spring Coiler Manufacturer – Up to 6 mm Wire, Custom Solutions

Product Description

1. Multi‑axis Linkage for Flexible Forming
   Five independent servo axes enable one‑step forming of complex spring shapes (including variable diameter, variable pitch, and torsion springs), reducing secondary processing.

2. Wide Wire Diameter Range
   Suitable for wire diameters 3~6 mm, covering most common medium‑size spring specifications to meet diverse order requirements.

3. Large Outer Diameter Capacity
   Max. spring outer diameter up to 110 mm, expanding your capability to produce larger compression and torsion springs.

4. High Power for High Output
   Main motor power: 10.5 kW; total installed power: 11.7 kW, ensuring strong torque for high‑speed feeding and heavy‑duty forming, boosting production per hour.

5. Sturdy & Compact Design
   Overall dimensions: 2600×1500×2400 mm; weight: 4 tons. High‑rigidity cast iron frame suppresses vibration and guarantees precision; volume approx. 9.36 m³ for easy workshop layout.

6. Customizable Options
   Customization supported – we can adjust tooling, feeding racks, or control parameters to meet specific production requirements.

FAQ

Q1: What is the lead time for this machine?
A: Under standard configuration, delivery is 25~30 working days after receiving the down payment. Custom orders may require additional time; the exact schedule will be stated in the contract.

Q2: Do you provide installation, commissioning, and training?
A: Yes. We offer on‑site installation and commissioning, plus free 3‑5 days of hands‑on training for your operators to ensure fast start‑up.

Q3: What is the warranty period?
A: The whole machine is warranted for 12 months (from acceptance date), with key servo motors and controllers covered for 18 months. Non‑human‑caused faults are repaired free of charge during warranty.

Q4: Can it process stainless steel or alloy wires?
A: Absolutely. The machine has sufficient torque and rigidity for carbon steel, stainless steel, alloy spring steel, etc. Simply adjust feeding speed and tooling parameters according to material properties.

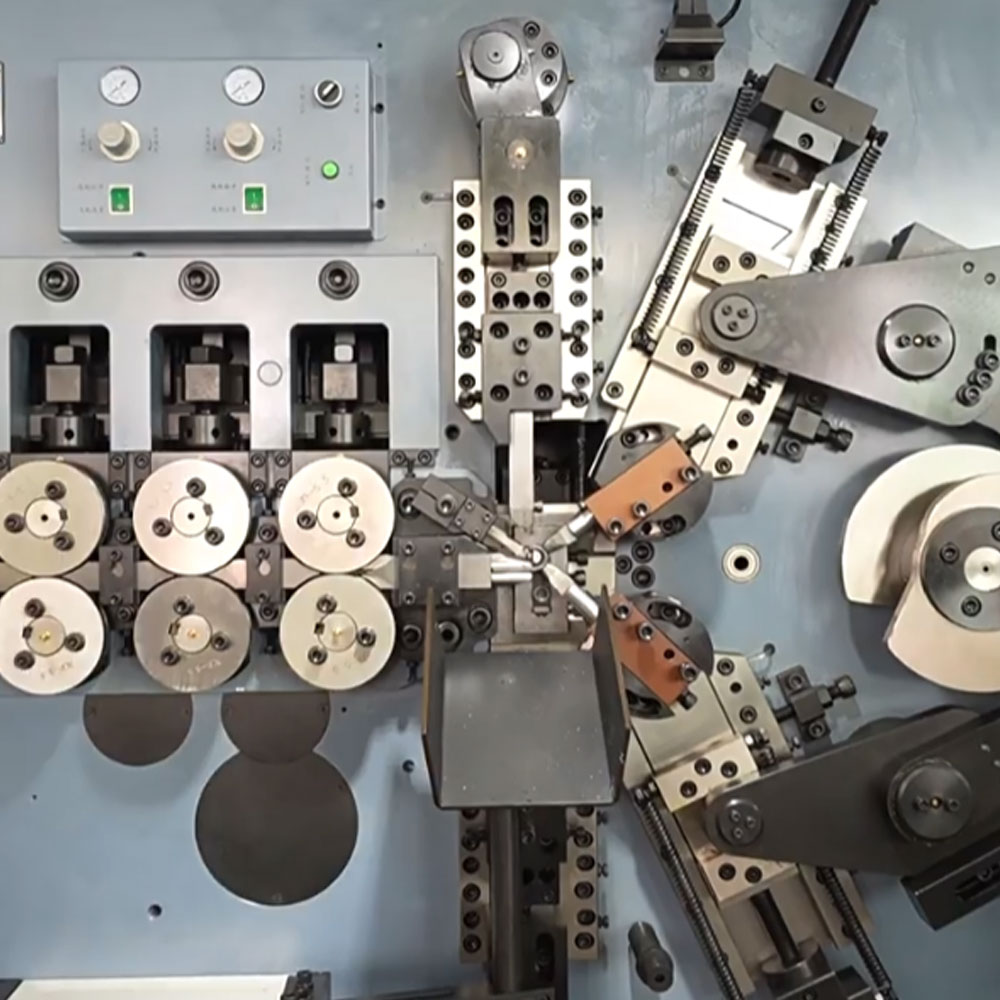

Q5: What are the five axes?
A: They are: feeding axis (X), upper cutter axis, lower cutter axis, diameter‑control axis (cam), and pitch‑control axis – working together for precise forming.

Q6: How quickly do you respond to technical issues?
A: We provide a 24/7 technical hotline. For urgent problems, remote response within 2 hours; if on‑site service is required, we reach domestic customers within 48 hours.

Why Choose US？

• Extensive Experience – Over a decade of R&D in spring machinery, with exports to 30+ countries and regions, trusted by numerous clients.

• Strict Quality Control – Core components sourced from top international brands (servo motors, PLC); every machine undergoes 72‑hour full‑load testing before shipment.

• Local Service Network – Service centers in major industrial cities with ample spare parts inventory and rapid repair, minimizing downtime.

• Continuous Innovation – We keep improving our control systems and offer lifetime software upgrades to stay ahead of industry trends.

• Cost‑Effective Solutions – Competitive pricing without compromising performance, plus flexible payment terms to lower your entry barrier.

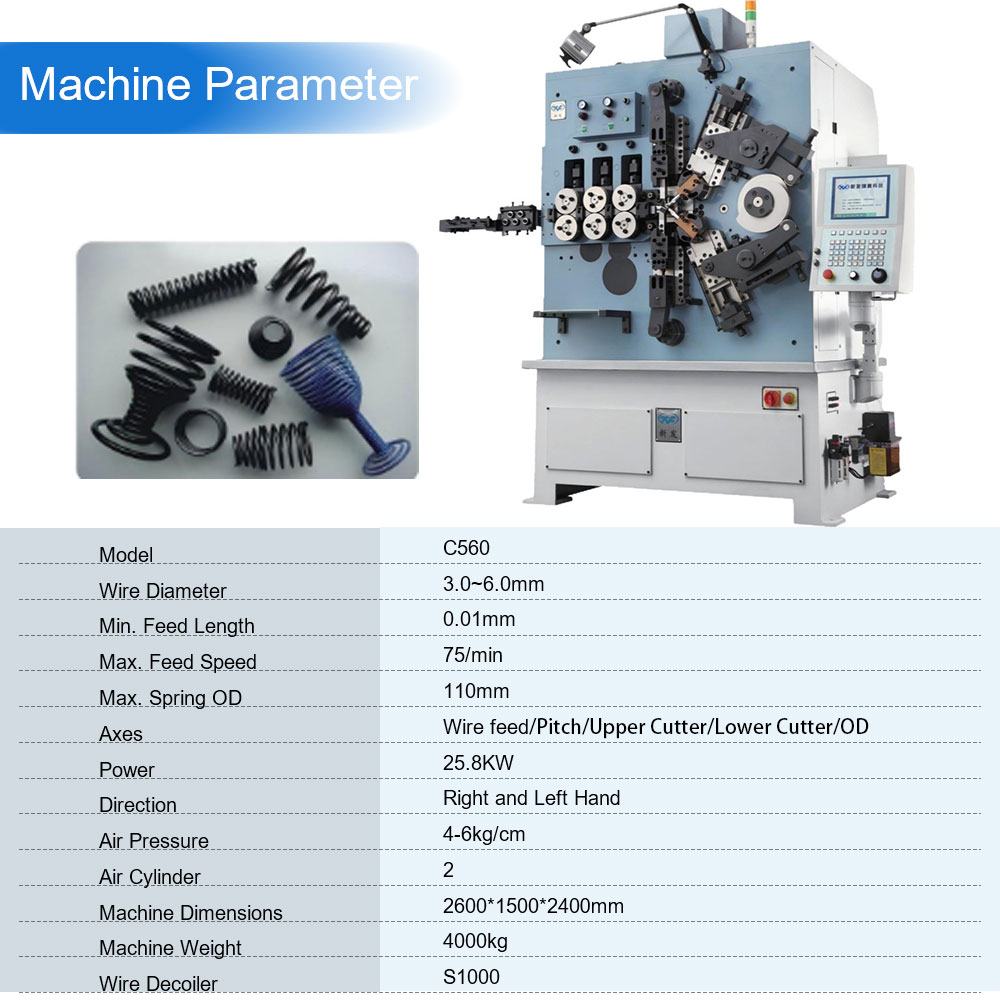

Product Specification Sheet
