Glass Disc AOI Machine AI Vision Inspection Equipment for Hardware Plastic Defect Detection
| Product Name | AOI Optical Screening Machine |
| Model | BB-EQ-31 |
| Motor Power | 1 Kw |
| Detection Speed | 200-1300 pieces/min |
| Detection Accuracy | ±0.03mm |
| Detection Purpose | Detect dimension deviation, burr, scratch, deformation, black spot, chipped corner, material shortage, angle deviation, misalignment, gear tooth error, aperture tolerance, welding spot, surface indentation and other appearance defects |

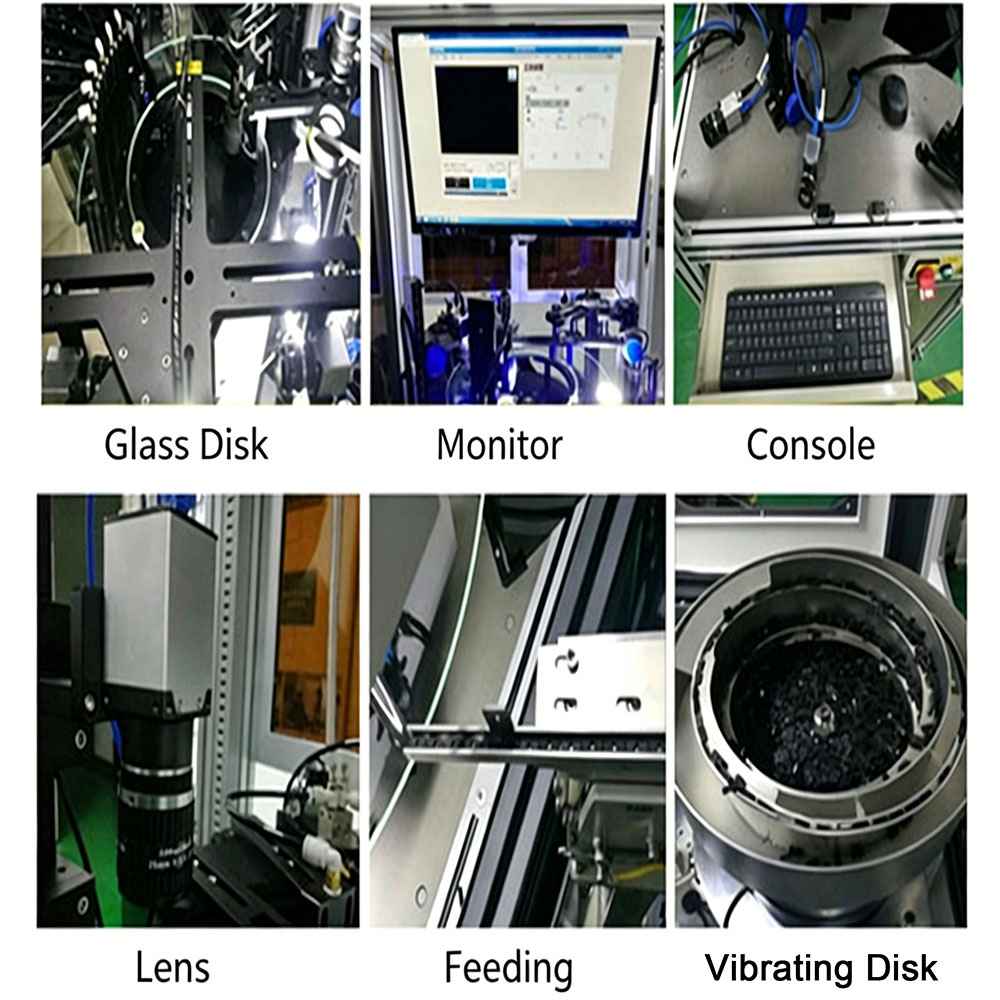

| Core Components | Glass Disc, Industrial Lens, Display Monitor, Console, Vibrating Disc Feeder, Self-developed AI Visual Software |
| Applicable Workpieces | Precision Hardware, Fasteners, Auto Parts, Electronic Parts, Magnetic Materials, Silicone Rubber, Ceramic Parts, Plastic Parts, Medical Products |
| Machine Dimension | 1250 * 1000 * 2000 mm |
| Machine Weight | 600 kg |
| Feeding Mode | Vibrating Disc Automatic Feeding |
| Service Support | 24-hour technical support, online remote debugging, free customized inspection solution, non-standard customization |
| Warranty Period | 1 year |
| Product Name | AOI Optical Screening Machine |
| Model | BB-EQ-31 |
| Motor Power | 1 Kw |
| Detection Speed | 200-1300 pieces/min |
| Detection Accuracy | ±0.03mm |
| Detection Purpose | Detect dimension deviation, burr, scratch, deformation, black spot, chipped corner, material shortage, angle deviation, misalignment, gear tooth error, aperture tolerance, welding spot, surface indentation and other appearance defects |
| Core Components | Glass Disc, Industrial Lens, Display Monitor, Console, Vibrating Disc Feeder, Self-developed AI Visual Software |
| Applicable Workpieces | Precision Hardware, Fasteners, Auto Parts, Electronic Parts, Magnetic Materials, Silicone Rubber, Ceramic Parts, Plastic Parts, Medical Products |
| Machine Dimension | 1250 * 1000 * 2000 mm |
| Machine Weight | 600 kg |
| Feeding Mode | Vibrating Disc Automatic Feeding |
| Service Support | 24-hour technical support, online remote debugging, free customized inspection solution, non-standard customization |
| Warranty Period | 1 year |
This AOI optical screening machine is a full-automatic industrial visual inspection device equipped with glass disc imaging system, industrial lens, display monitor and vibrating disc feeding mechanism. It adopts self-developed AI vision algorithm to realize high-speed and high-precision automatic sorting.

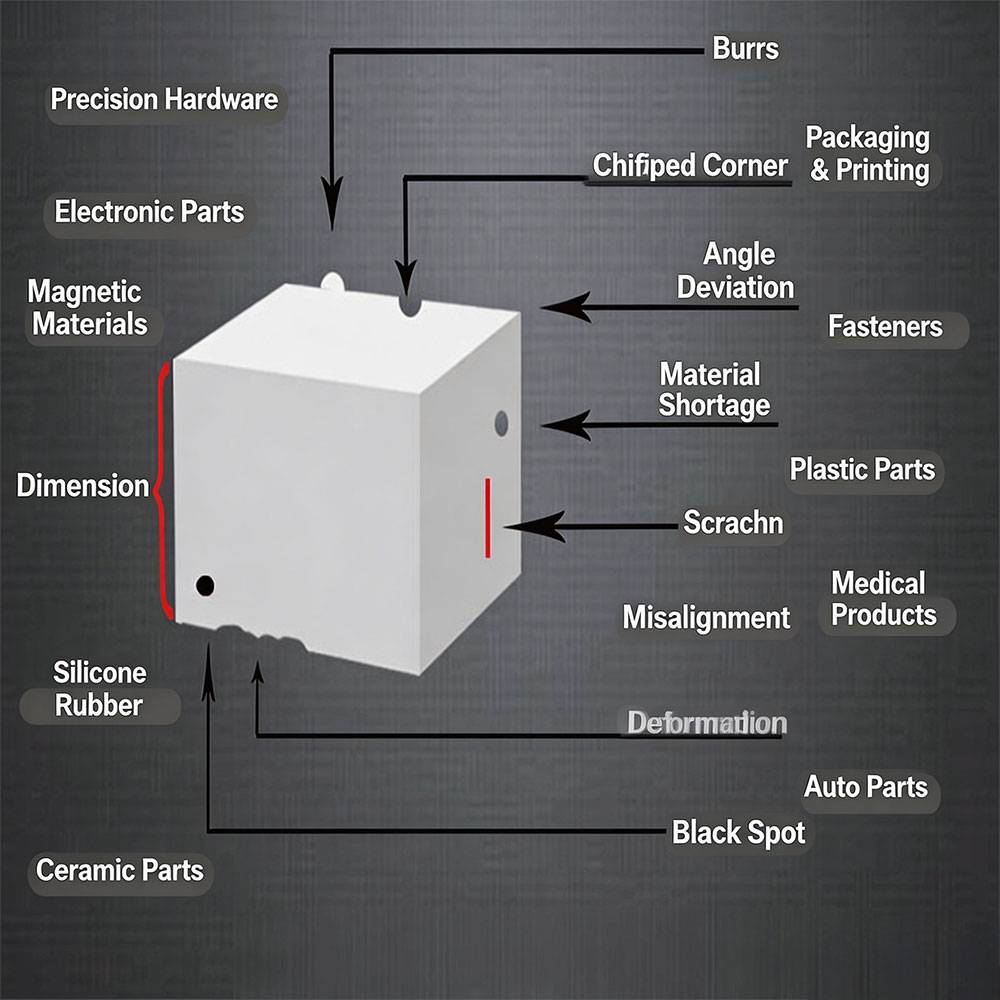

The equipment can comprehensively detect all kinds of workpiece defects, including dimensional deviation, burr, scratch, deformation, black spot, chiped corner, material shortage, angle deviation, misalignment, gear tooth error, aperture tolerance, welding spot area, surface indentation and so on.
It is widely compatible with precision hardware, fasteners, auto parts, electronic components, silicone rubber, ceramic parts, medical products, magnetic materials and plastic fittings. We support non-standard customized inspection solutions, provide 24-hour online remote technical debugging and one-year factory warranty.
