AOI Automatic Optical Sorting Screening Machine ±0.03mm High Precision Vision Inspection Equipment with Vibrating Disc Feeder
| Product Name | AOI Optical Screening Machine |
| Model | BB-EQ-28 |
| Motor Power | 1 Kw |
| Detection Speed | 200-1300 pieces/min |
| Detection Accuracy | ±0.03mm |
| Detection Purpose | Detect appearance defects, dimensional deviation, indentation, scratch, blockage and other workpiece abnormalities |
| Overall Dimension | 1250 * 1000 * 2000 mm |
| Machine Weight | 600 kg |
| Feeding Mode | Vibrating Disc |
| Screening Layer | 1 layer, no mesh specification |
| Core Configuration | Self-developed AI visual inspection software, glass disc screen material, independent inspection plan |
| Service Support | 24-hour technical support, online remote debugging, free customized inspection solution, non-standard customization |
| Warranty Period | 1 year |
| Product Name | AOI Optical Screening Machine |
| Model | BB-EQ-28 |
| Motor Power | 1 Kw |
| Detection Speed | 200-1300 pieces/min |
| Detection Accuracy | ±0.03mm |
| Detection Purpose | Detect appearance defects, dimensional deviation, indentation, scratch, blockage and other workpiece abnormalities |
| Overall Dimension | 1250 * 1000 * 2000 mm |
| Machine Weight | 600 kg |
| Feeding Mode | Vibrating Disc |
| Screening Layer | 1 layer, no mesh specification |
| Core Configuration | Self-developed AI visual inspection software, glass disc screen material, independent inspection plan |
| Service Support | 24-hour technical support, online remote debugging, free customized inspection solution, non-standard customization |
| Warranty Period | 1 year |

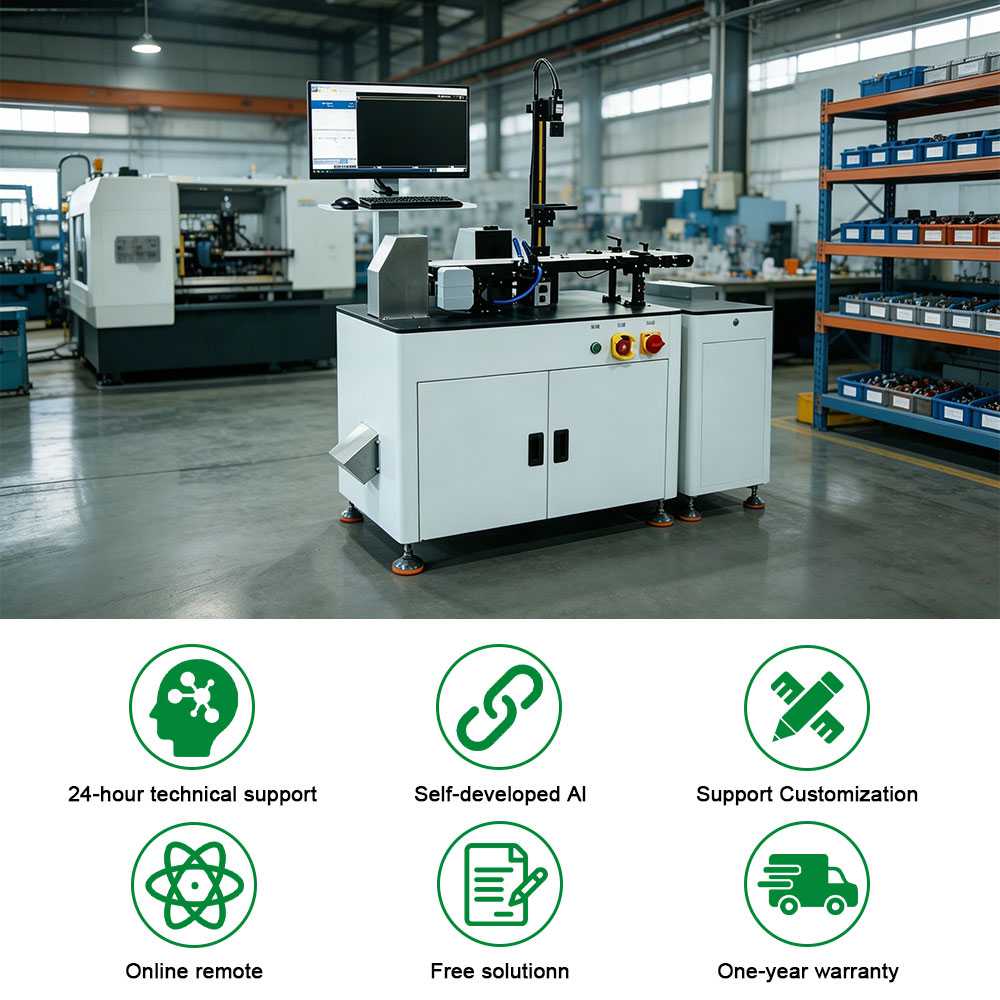

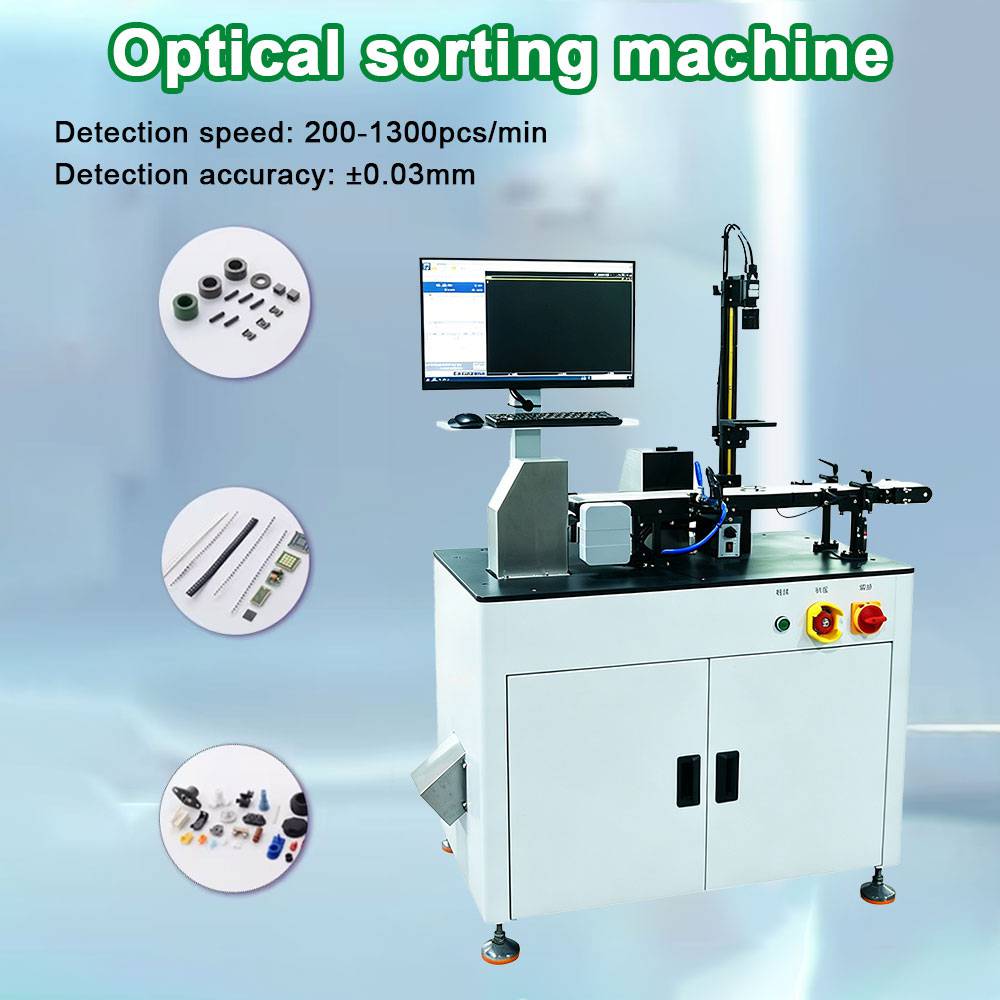

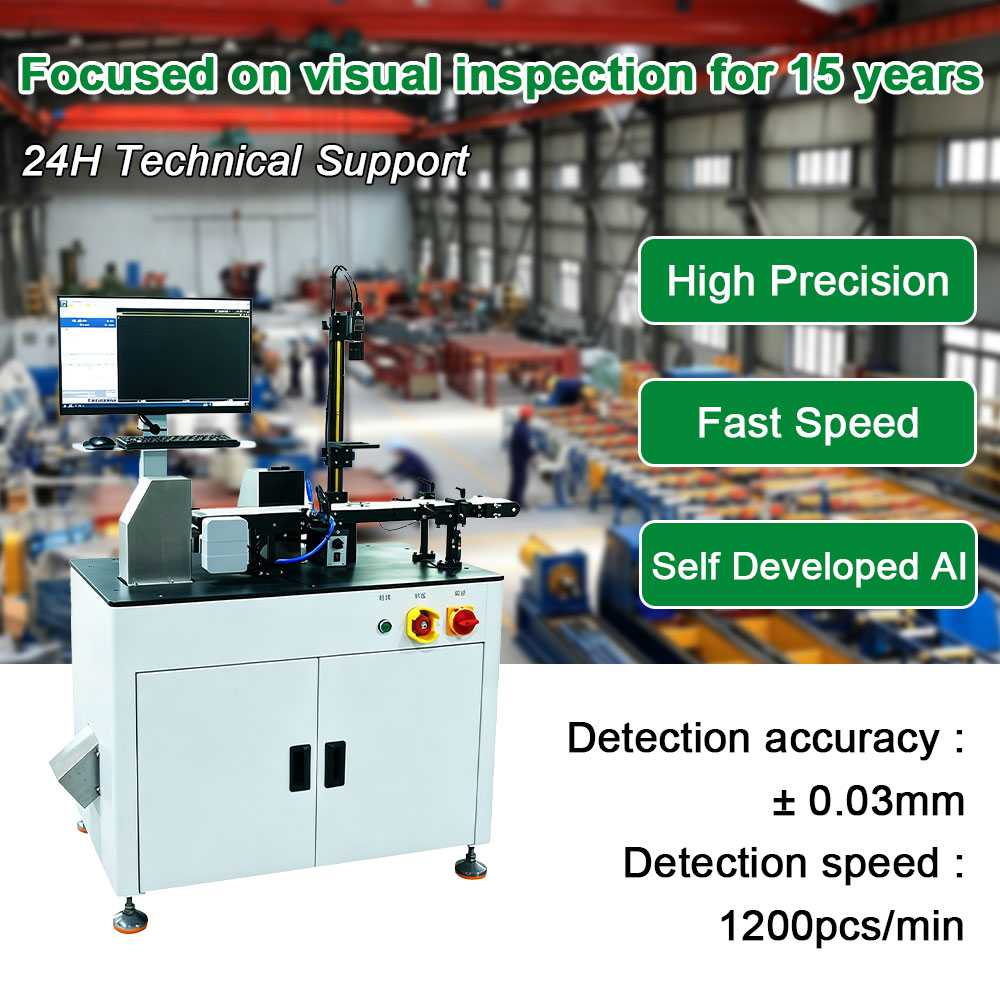

This AOI optical screening machine is a professional automatic vision inspection device independently developed for mass production quality control. Equipped with self-developed AI visual software and glass disc imaging system, it adopts vibrating disc feeding structure with 1KW stable motor power.
It reaches ultra-high detection accuracy of ±0.03mm, flexible detection speed ranging from 200 to 1300 pieces per minute, and the maximum production capacity can hit 1200pcs/min. The whole machine dimension is 1250*1000*2000mm with total weight 600kg, single-layer screening design without mesh sieve.
This AOI equipment automatically identifies all workpiece defects including appearance flaws, dimensional errors, indentations, scratches and blockages. It is widely used for hardware fasteners, tiny plastic and rubber components. We provide free customized inspection plans, non-standard customization service, 24-hour online remote technical support and one-year factory warranty.
