Factory Direct Camless CNC Spring Machine for Wire Bending & Forming Panasonic Servo Fully Automatic Spring Coiler
The GT50‑12R camless CNC spring machine is a fully automatic equipment integrating bending forming and spring manufacturing. Powered by Panasonic servo motors, it eliminates the need for cams to achieve high‑precision wire bending, suitable for complex springs and metal wire shapes. As a factory‑direct supply, it features strong power (26.7 kW), compact dimensions (3000×1800×2250 mm), and a heavy weight of 5.5 tons for stable and reliable production. It is an ideal choice for the wire‑forming industry.
Product Description
-
Camless Technology – Replaces traditional cam mechanisms with flexible programming, enabling quick changeovers and reduced setup time, ideal for small‑batch multi‑variety production.
-

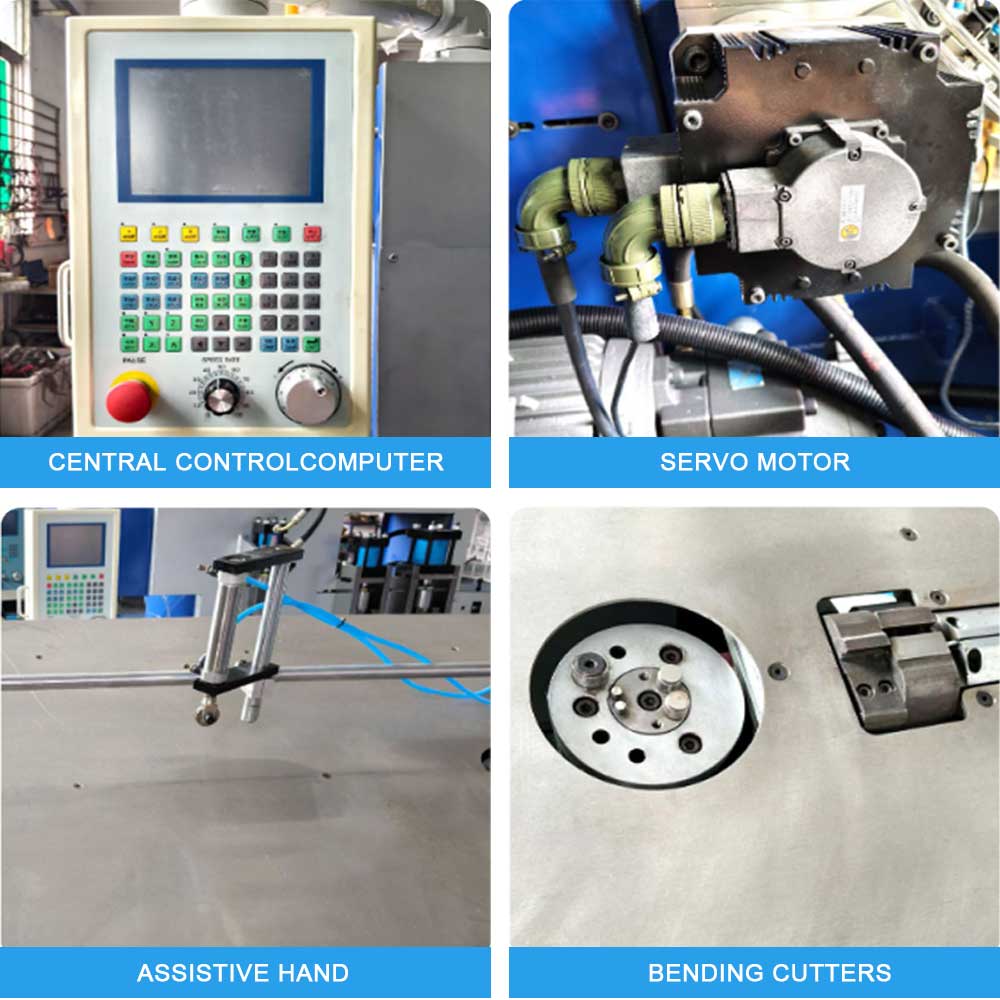

High‑Precision Servo Control – Equipped with Panasonic servo motors, ensuring rapid response and accurate positioning for consistent bending angles and formed dimensions.
-
Powerful Drive System – Total motor power of 26.7 kW, capable of handling medium to heavy‑gauge wires with high efficiency and optimized energy consumption.
-

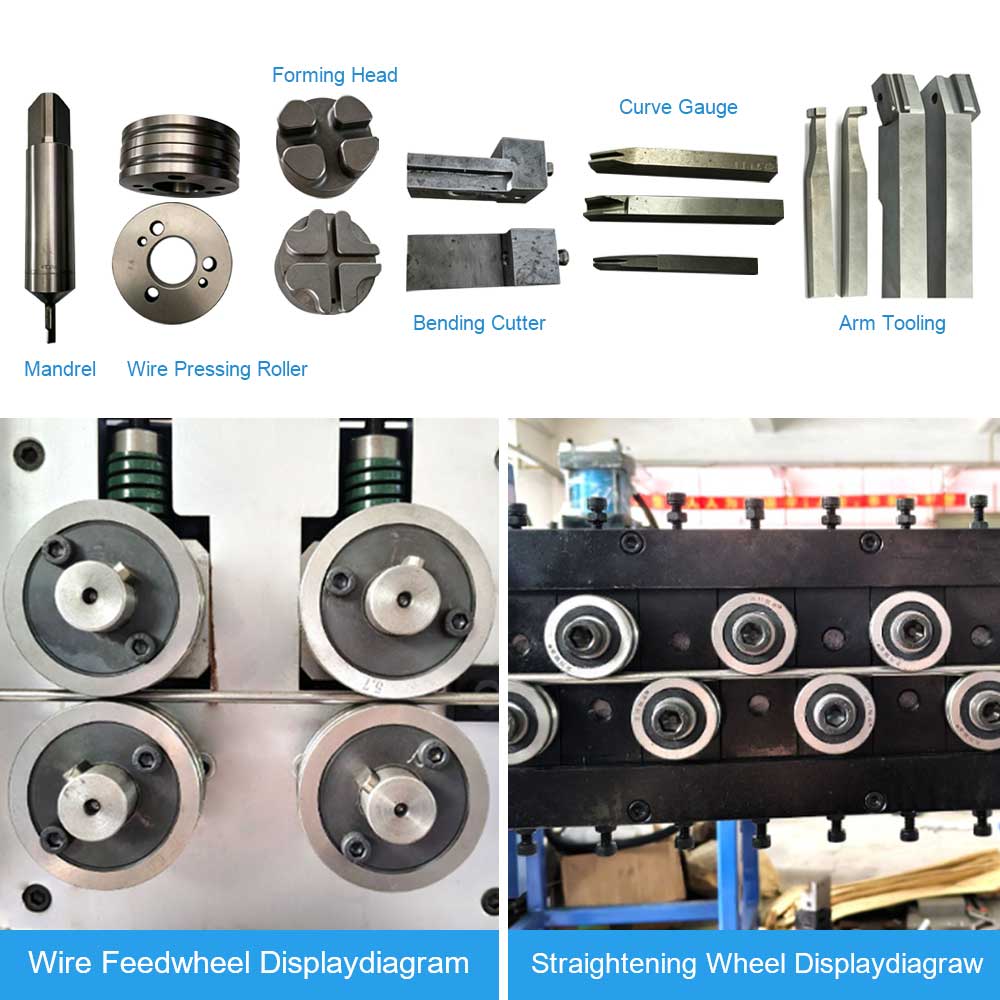

Fully Automatic Operation – Integrates automatic wire feeding, straightening, bending, and cutting, enabling continuous unmanned production to boost output.
-
Rugged Construction – Dimensions 3000×1800×2250 mm and net weight 5.5 tons provide excellent rigidity, low vibration, and long‑term stability.
-
Wide Application Range – Suitable for automotive parts, electronics, hardware tools, furniture springs, etc., processing round, square, and shaped wires.
-
Customization Support – Accepts non‑standard modifications to meet specific customer requirements in functionality or tooling.
FAQ
Q1: What is the minimum order quantity?
A1: For this industrial machine, the MOQ is typically 1 unit. Volume discounts are available for multiple units.
Q2: What is the delivery lead time?
A2: Standard models: 20~30 working days. Customized models: usually 30~45 working days, depending on complexity.
Q3: Do you provide installation, commissioning, and training?
A3: Yes. We offer free on‑site installation and commissioning, along with hands‑on training for your operators to ensure smooth production.
Q4: What is the warranty period?
A4: 12 months from the acceptance date. Key components (e.g., servo motors) can be covered under extended warranty. Lifetime technical support is provided.
Q5: Can it process stainless steel wire?
A5: Yes. The machine handles various materials such as carbon steel, stainless steel, copper, aluminum, etc. Please consult our engineers for specific wire diameter ranges.
Q6: Is remote diagnostics supported?
A6: Yes. The intelligent control module enables remote monitoring and fault diagnosis, ensuring rapid after‑sales response.
Why Choose US？
-
Factory Direct, Cost‑Effective – No middlemen, passing savings directly to you. Better value for the same configuration.
-
Deep Technical Expertise – Years of experience in spring machine R&D, mature camless technology, and multiple patents ensure stable performance.
-
Strict Quality Control – ISO‑certified production, key parts from top international brands, 100% tested before shipment.
-
Fast Response Service – 24/7 technical hotline, on‑site service within 48 hours (domestic), and remote guidance + spare parts express for overseas clients.
-
Customer‑Centric Customization – Flexible modifications to match your process needs, from selection to mass production with full support.

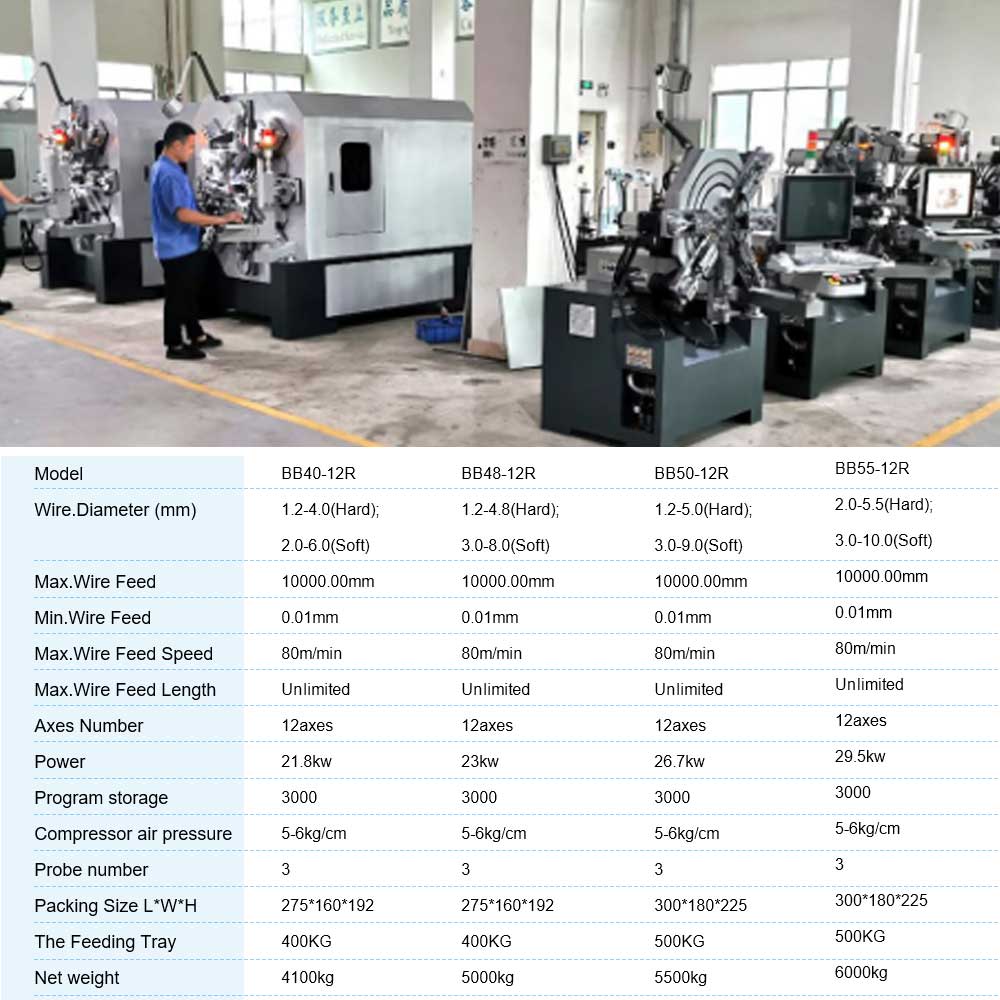

Product Specification Sheet
| Item | Details |
|---|---|
| Order No. | xk20251230 |
| Customization | Yes |
| Item No. | xk20251230 |
| Category | Bending Machine |
| Model | GT50-12R |
| Application | Bending and forming; factory direct, camless CNC spring machine, wire bending forming, Panasonic servo motor, fully automatic spring machine |
| Motor Power | 26.7 kW |
| Dimensions (L×W×H) | 3000 × 1800 × 2250 mm |
| Weight | 5.5 t |
| Specification | 1 |
| Cross-border Export Supply | No |
| Type | Camless Spring Machine |
