Premium 2kW Board Flipping Machine 180° Automatic Panel Turner for Wood UV Coating Production Line
MOQ: 1 Pcs (Min. Order)
SKU: BB-EQ-24
| Product Name | 180° Automatic Panel Turner |
| Model | BB-EQ-24 |
| Conveyor belt speed | 8-12 m/min |
| Rated Power | 2 kW |
| Paint Tank Capacity | 10L |
| Matched Coating Thickness | 10 μm |
| Effective Coating Width | 500 mm |
| Main Body Material | Stainless Steel |
| Transmission System | Roller Drive Transmission |
| Matching Equipment | UV Curtain Coater, Roller Coater, Air-Cooled Conveyor, Flat Belt Conveyor |
| Warranty | 1 Year |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | 180° Automatic Panel Turner |
| Model | BB-EQ-24 |
| Conveyor belt speed | 8-12 m/min |
| Rated Power | 2 kW |
| Paint Tank Capacity | 10L |
| Matched Coating Thickness | 10 μm |
| Effective Coating Width | 500 mm |
| Main Body Material | Stainless Steel |
| Transmission System | Roller Drive Transmission |
| Matching Equipment | UV Curtain Coater, Roller Coater, Air-Cooled Conveyor, Flat Belt Conveyor |
| Warranty | 1 Year |

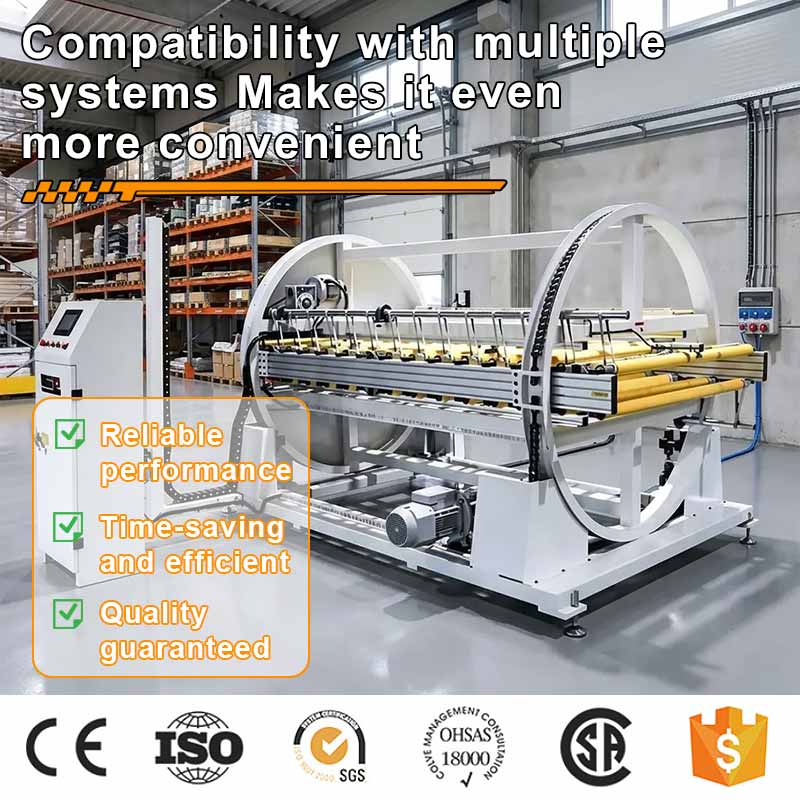

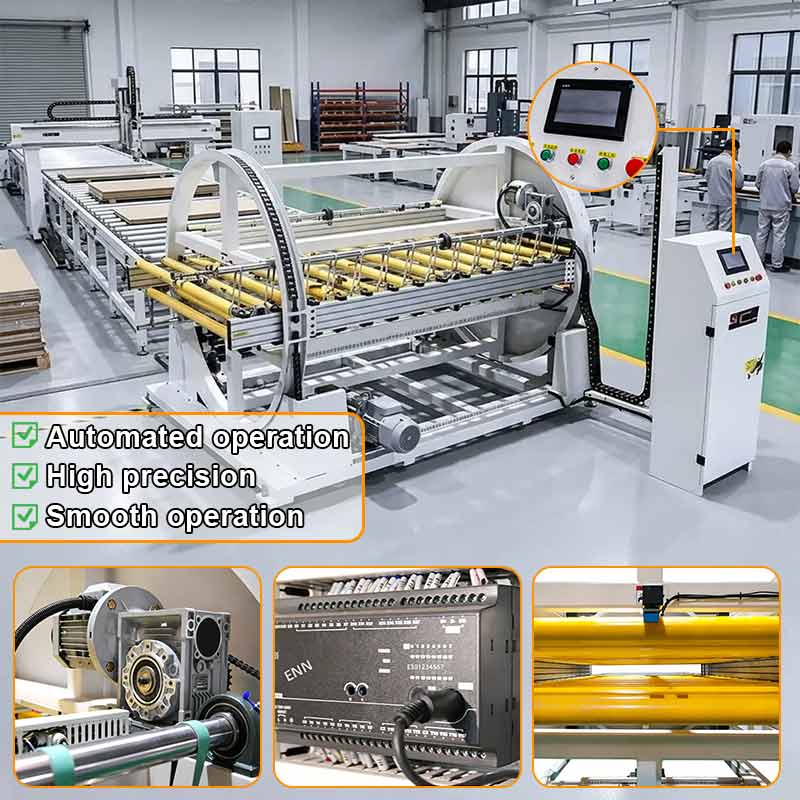

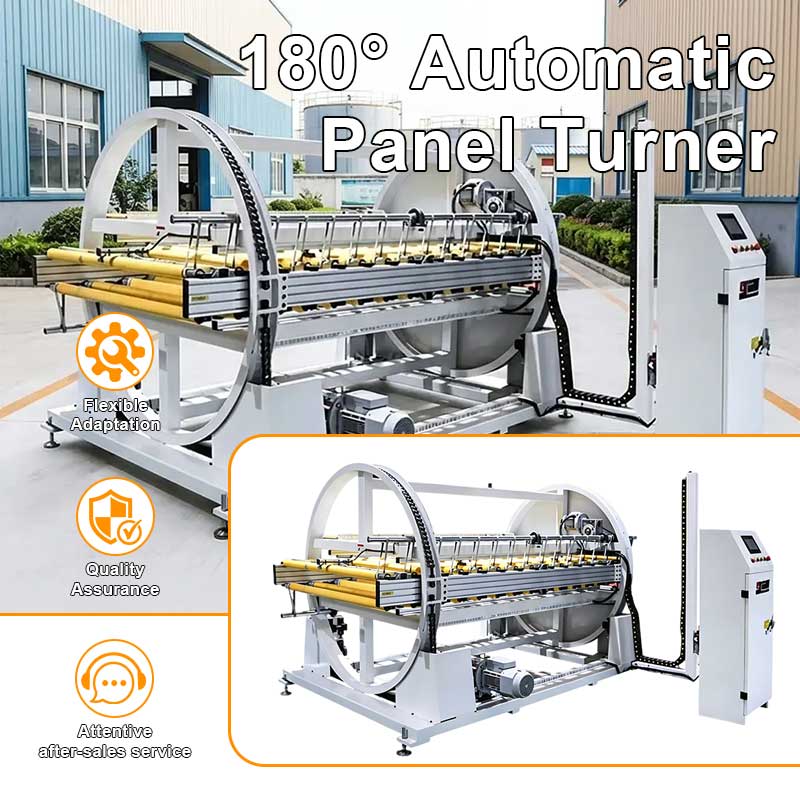

This 180° Automatic Panel Turner is essential supporting equipment for full-automatic panel coating production lines. It adopts large circular frame and yellow roller conveying structure, realizing stable 180-degree flipping of flat panels without scratching board surfaces. Equipped with independent touch screen PLC control cabinet, it supports fully automated unattended operation, matching perfectly with curtain coaters, air-cooled conveyors and roller coaters. Made of sturdy stainless steel body and reliable roller drive system, the machine runs smoothly with high flipping precision. It widely used for wood furniture panel processing and various flat plate manufacturing industries.
Core Features
- Full automatic PLC touch screen control system, easy parameter setting and one-key automated operation
- Large circular rotary frame + yellow soft roller conveying design, no scratch to painted panel surfaces
- Stable roller transmission system ensures smooth, low-noise and high-precision 180° flipping
- Whole machine stainless steel body structure, anti-rust, wear-resistant and long service life
- Compact independent control cabinet, separate from main machine for safer operation and maintenance
- Perfect compatibility with UV curtain coater, roller coater, air cooling conveyor and other coating line equipment
- High efficiency, greatly save labor cost and improve continuous coating line productivity
