CNC Spring Coiler for Lantern Brackets, Craft Supports & Hardware Manufacturing Stainless Steel 3D Wire Bending Machine
The 45-12R is a camless CNC wire bending and spring coiling machine, engineered for precision torsion forming of stainless steel and spring steel wires. It integrates craft bracket bending, 3D stereo shaping, and lantern bracket production, making it ideal for hardware parts, disc springs, torsion springs, and other complex shapes. With a full digital control system, tool-less cam changeover, high accuracy, and stock availability, it also supports customization upon request.
Product Description
-
Camless transmission – Eliminates conventional cam mechanisms, reduces mechanical wear, shortens changeover time by over 50%, and simplifies operation.
-
Advanced CNC system – Equipped with industrial PLC and touch screen, supporting multi-axis linkage, storing up to hundreds of process parameters, with repeat positioning accuracy of ±0.02mm.
-
Versatile material compatibility – Handles stainless steel (SUS304, 316), spring steel (65Mn, 50CrVA), etc. Wire diameter range 0.5–12mm (depending on configuration).
-
Multiple forming functions – Capable of torsion, bending, angling, and 3D stereo forming, suitable for disc springs, lantern brackets, automotive harnesses, and appliance hardware.
-
Customization available – Accepts non‑standard modifications, including tooling, wire feeders, automatic cutters, etc., to meet special process needs.
-
In‑stock supply – Regular models are well stocked; shipment within 3 working days after order confirmation.
-
Standardized design – Complies with general industry interface standards for easy integration with existing production lines.
FAQ
Q1: What is the maximum wire diameter for this model?
A1: The 45-12R supports up to 12mm for carbon steel; for stainless steel, we recommend ≤10mm, depending on material hardness.
Q2: What is the lead time?
A2: For stock orders, 3–5 working days after payment confirmation; customized machines take 15–20 working days.
Q3: Do you provide installation, commissioning and training?
A3: Yes, we offer remote video guidance. On‑site service can be arranged at additional cost upon negotiation.
Q4: What is the minimum order quantity?
A4: One unit minimum, no batch restrictions.
Q5: How long is the warranty?
A5: 12 months for the whole machine (excluding wear parts), with lifelong paid repair and technical support.
Q6: Can you make free samples?
A6: We can produce samples based on your drawings. The sample fee will be refunded when you place a formal order.
Why Choose US？

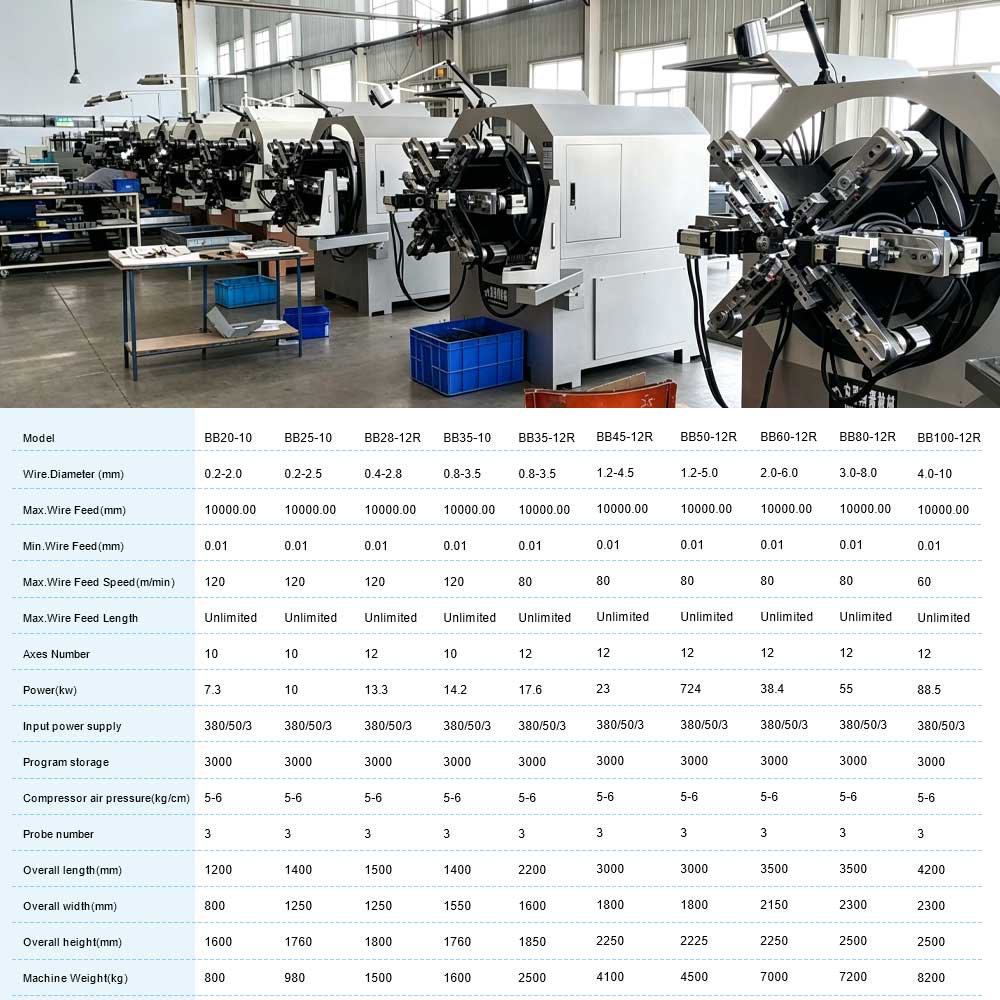

Product Specification Sheet
| Field | Content |
|---|---|
| Order No. | 45-12R |
| Customization | Yes |
| Item No. | Craft bracket bender / Stainless steel 3D bender / CNC wire bender / Lantern bracket bender |
| Sample or Stock | In stock |
| Standard part | Standard part |
| Material | Spring steel |
| Application | Hardware |
| Shape | Belleville spring (disc spring) |
| Working mode | Torsion |
| Type | Camless spring coiling machine |
