| Product Name |
Heavy-Duty Automatic Reciprocating Spraying Machine |
| Model |
BB-EQ-11 |
| Product Type |
High-pressure Airless Spraying Machine |
| Rated Power |
13 kW/18 kW(optional) |
| Spray Flow Rate |
0.5-20 ml/min / 5.5 ml/min (Optional) |
| Output Pressure |
0.3~0.6 MPa / 12.5 MPa(Optional) |
| Rated Voltage |
220V / 380V (Optional) |
| Nozzle Diameter |
1.0 mm / 1.2 mm (Optional) |
| Spray Distance |
150 mm / 200 mm (Optional) |
| Spray Width |
100 mm / 150 mm (Optional) |
| Overall Dimension |
1200×1000×1800 mm / 1500×1200×2000 mm(Optional) |
| Weight |
5000 kg |
| Applicable Materials |
Wood panels, glass, acrylic, marble flooring, aluminum sheets, plastic sheets |
| Core Features |
Automatic reciprocating spray, multi-system compatible, adjustable parameters, transparent safety window |
| Supported Systems |
AI intelligent coating, two-color coating, paint mist adsorption, VOC emission reduction |
| Warranty |
1 year |

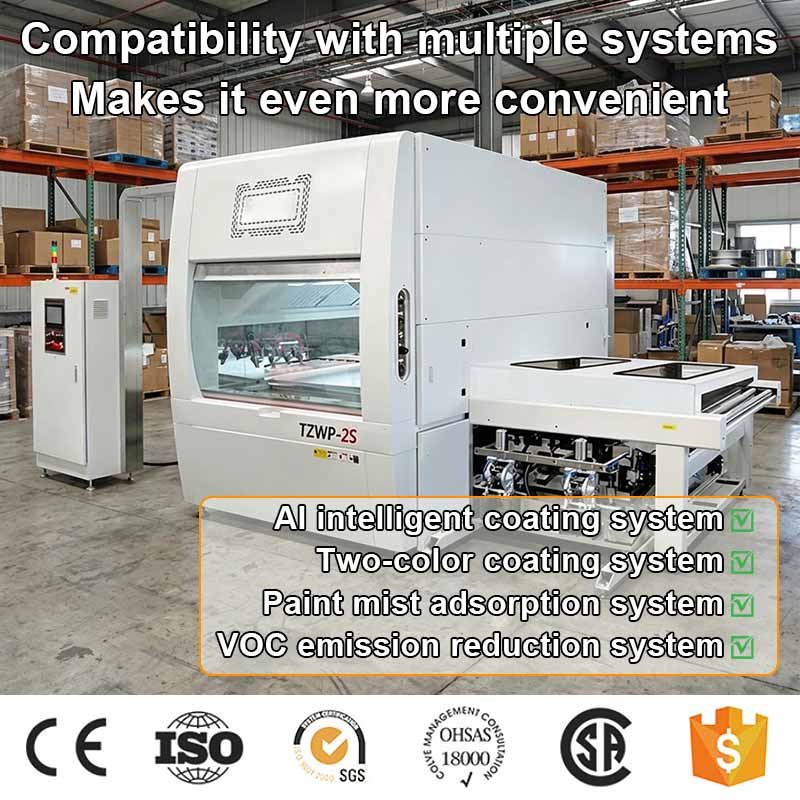

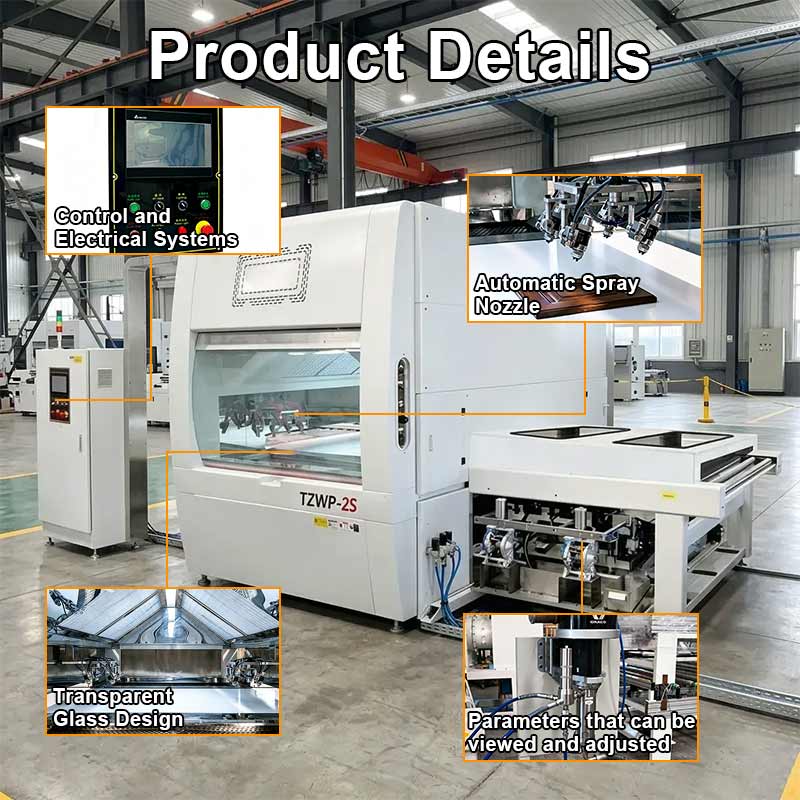

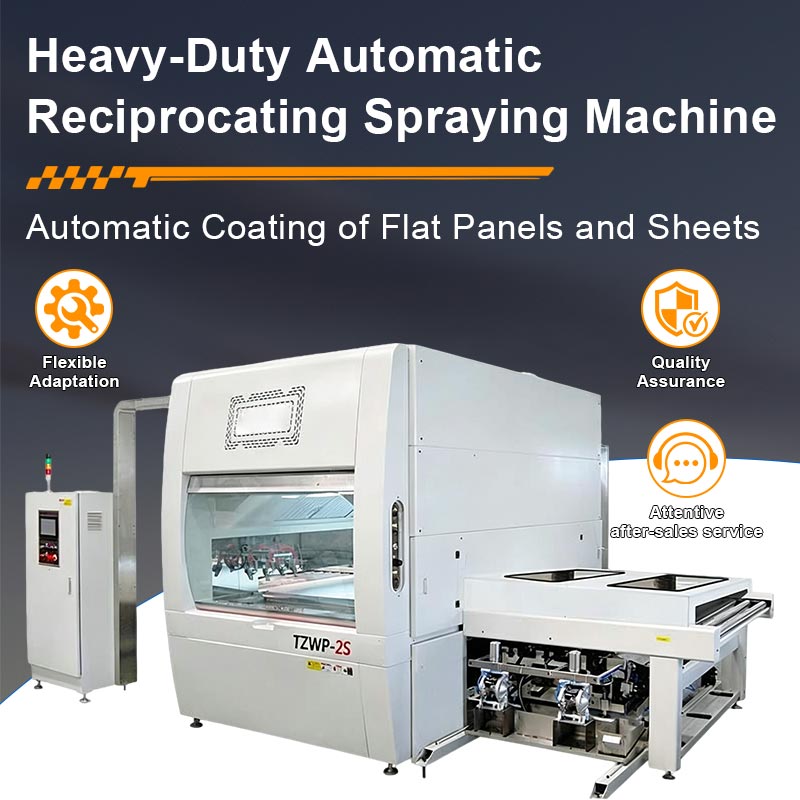

This heavy-duty automatic reciprocating spraying machine is engineered for high-precision, consistent coating on various flat panels and sheets. Designed for industrial applications, it automates the entire coating process, significantly improving efficiency while reducing material waste and labor costs. Equipped with an advanced control system and automatic spray nozzles, it ensures uniform paint coverage on surfaces like wood furniture panels, glass, acrylic sheets, marble flooring, aluminum sheets, and plastic sheets. The machine supports multiple coating systems, including AI intelligent coating, two-color coating, paint mist adsorption, and VOC emission reduction, meeting diverse production needs while adhering to environmental standards. Built for durability and ease of maintenance, it offers reliable quality assurance and attentive after-sales service, making it an ideal solution for modern automated coating lines.
>
