120kW 240kWh Outdoor Mobile Off-Grid Energy Storage System – Industrial LiFePO₄ Battery Cabinet with Temperature Control & CE Certification

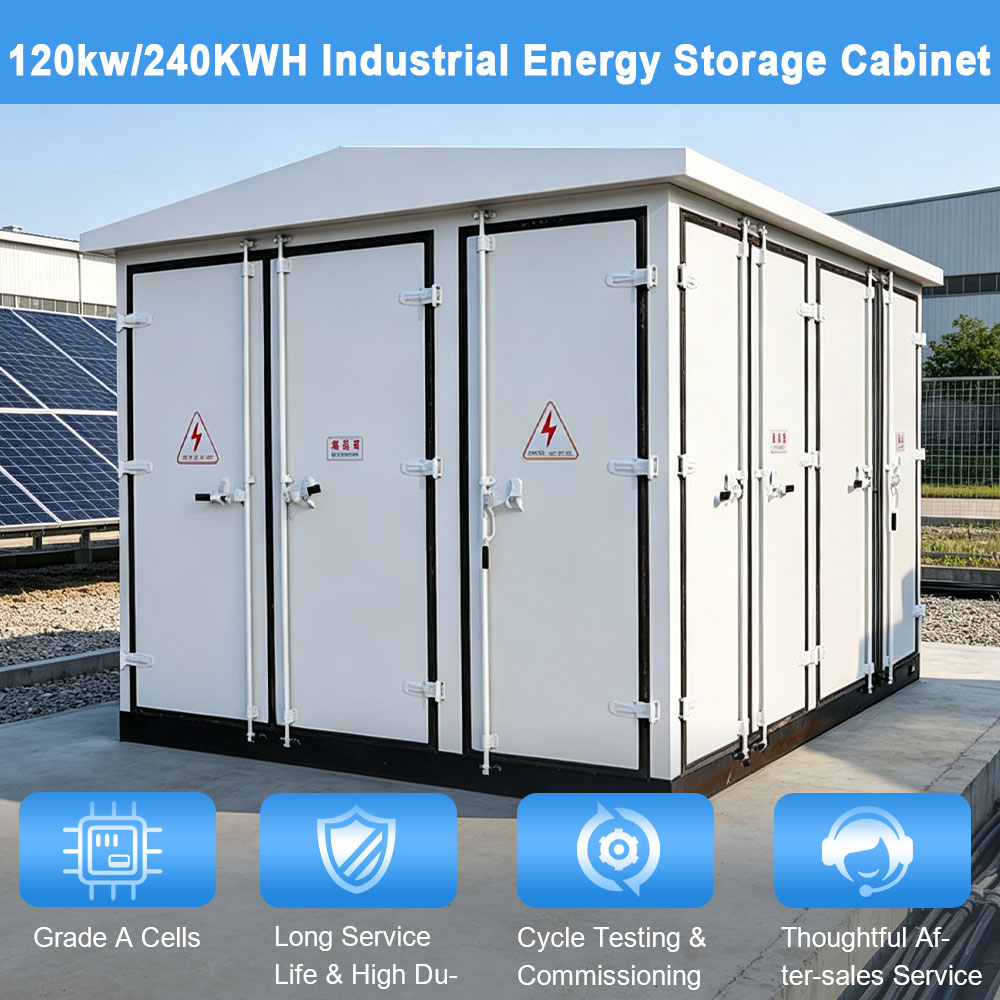

120kW / 240kWh Outdoor Mobile Off-Grid Energy Storage System
This heavy-duty outdoor mobile storage cabinet is built around a high-capacity 857.6V 280Ah LiFePO₄ battery pack, delivering 120kW of continuous power and 240kWh of usable energy. Designed for off-grid applications, it features an intelligent BMS with comprehensive protection (overcharge, over-discharge, short circuit, and temperature control), operates reliably in extreme temperatures, and supports over 6,000 deep cycles. CE-certified and ready for deployment in remote sites, construction zones, farms, telecom base stations, and emergency backup scenarios.
| Item | Specification |
|---|---|
| Model | 857.6V 280Ah |
| Nominal Voltage | 857.6 V |
| Nominal Capacity | 280 Ah |
| Cycle Life | ≥ 6,000 cycles |
| Cell Configuration | 268S1P |
| Battery Type | Prismatic LiFePO₄ (Lithium Iron Phosphate) |
| Charge Voltage | 964.8 V |
| Discharge Cut-off Voltage | 750.4 V |
| Charge Current | 140 A |
| Discharge Current | 140 A |
| Monthly Self-discharge Rate | ≤ 1% |
| Warranty Period | 1 year |
Product Overview
The 120kW / 240kWh Outdoor Mobile Off-Grid Energy Storage Cabinet is a turnkey, containerized power solution engineered for demanding environments where grid access is limited or unavailable. Integrating high-density LiFePO₄ battery technology with an advanced Battery Management System (BMS), this unit delivers safe, reliable, and long-lasting energy storage for commercial, industrial, and utility-scale off-grid projects.
Key Features
-
High Energy Capacity & Power Output – With 240kWh of stored energy and 120kW of rated output power, this system supports heavy loads and prolonged operation, making it ideal for power-intensive off-grid sites.
-
Premium LiFePO₄ Battery Core – The system uses prismatic lithium iron phosphate cells in a 268S1P configuration, providing superior thermal stability, intrinsic safety, and an industry-leading cycle life of ≥6,000 cycles at 80% depth of discharge (DOD).
-
Comprehensive Smart BMS Protection – The built-in intelligent BMS actively monitors and protects against overcharge, over-discharge, short circuits, and abnormal temperatures, ensuring optimal performance and extending battery service life.
-
Wide Temperature Tolerance – Engineered for outdoor deployment, the system supports charging from 0℃ to 45℃ and discharging from -10℃ to 55℃, with safe storage capability from -40℃ to 45℃, covering most climate conditions worldwide.
-
Mobile & Outdoor-Ready Design – Housed in a rugged, weather-resistant cabinet, this unit is designed for portability and rapid deployment, whether mounted on trailers, skids, or concrete pads.
-
Low Self-Discharge & Long Standby – With a monthly self-discharge rate of ≤1%, the system maintains high readiness even during extended periods of inactivity.
-
CE Certified & Quality Assured – Fully compliant with CE standards, this product reflects rigorous quality control and adherence to international safety regulations.
Ideal Applications
-
Remote villages and island communities
-
Construction and mining site power
-
Agricultural irrigation and farming operations
-
Telecom base stations and data relay nodes
-
Emergency disaster relief and temporary shelters
-
Peak shaving and backup power for commercial facilities
FAQ
| No. | Question | Answer |
|---|---|---|
| 1 | What is the actual usable capacity of this system? | The system has a nominal capacity of 240kWh (based on 857.6V × 280Ah). For optimal battery longevity, we recommend a maximum depth of discharge (DOD) of 80%, which provides approximately 192kWh of usable energy per cycle. |
| 2 | How long does it take to fully charge the system? | With the recommended 140A charging current, a full charge from 0% to 100% takes approximately 2 hours under ideal conditions. Actual charging time may vary depending on input power availability and ambient temperature. |
| 3 | Can this system be integrated with solar panels or wind turbines? | Yes, this off-grid storage system is fully compatible with renewable energy sources such as solar PV arrays and wind turbines. It works seamlessly with standard hybrid inverters and charge controllers for hybrid energy systems. |
| 4 | What maintenance is required? | The system requires minimal maintenance. We recommend periodic visual inspections of the cabinet, cable connections, and cooling fans every 3–6 months. The BMS performs continuous self-diagnostics and alerts for any anomalies. |
| 5 | Is the system weatherproof? Can it be used outdoors in rain or snow? | Yes, the cabinet is specifically designed for outdoor installation with weatherproof enclosures (minimum IP54 rating, please confirm specific IP rating with sales team). It can operate safely in rain, snow, and dusty environments within the specified temperature ranges. |
| 6 | What is the warranty and expected lifespan? | The system comes with a 1-year standard warranty. With proper operation and maintenance, the LiFePO₄ battery cells are designed to deliver over 6,000 cycles, which translates to approximately 10–15 years of service life under typical daily cycling conditions. |
| 7 | Does the system include a built-in inverter? | Please confirm with our sales team, as the inverter may be integrated or supplied separately depending on the specific configuration. The base system includes the battery pack and BMS; inverter can be customized per project requirements. |
| 8 | Is CE certification valid for all markets? | CE certification confirms compliance with European safety and environmental standards. For other regions (e.g., UL for North America, UN38.3 for transport), additional certifications may be available upon request. |
Why Choose US？
| No. | Item | Description |
|---|---|---|
| 1 | 🔋 Proven LiFePO₄ Technology | We use only automotive-grade prismatic LiFePO₄ cells, known for their exceptional thermal stability, non-toxic chemistry, and ultra-long cycle life. Unlike lead-acid or NMC batteries, our system delivers consistent performance with zero risk of thermal runaway. |
| 2 | 🧠 Intelligent BMS with Real-Time Monitoring | Our proprietary Battery Management System provides 24/7 monitoring of each cell’s voltage, temperature, and state of charge. It actively balances cells, prevents over-discharge, and shuts down safely under fault conditions—giving you peace of mind in mission-critical applications. |
| 3 | 🌍 Built for Extreme Environments | From desert heat to freezing winters, our system operates reliably across a wide temperature spectrum. The rugged outdoor cabinet resists corrosion, UV radiation, and physical impacts, ensuring long-term durability in harsh field conditions. |
| 4 | 📦 Plug-and-Play & Rapid Deployment | Pre-assembled, pre-tested, and ready to connect, this mobile storage unit significantly reduces installation time and on-site labor costs. Its compact footprint and portable design allow for easy relocation as project demands evolve. |
| 5 | ✅ Certified Quality & Transparent Compliance | Every unit undergoes strict factory testing and carries CE certification. We provide full documentation, including test reports, wiring diagrams, and user manuals, to support your project approval and permitting processes. |
| 6 | 🤝 Dedicated Technical Support | Our team of experienced engineers offers end-to-end support—from system sizing and configuration guidance to after-sales troubleshooting. We’re committed to helping you maximize the ROI of your energy storage investment. |
| 7 | 🌱 Sustainable & Recyclable | By choosing our LiFePO₄ solution, you are investing in a green, recyclable energy system that reduces reliance on fossil fuels and minimizes environmental impact over its entire lifecycle. |

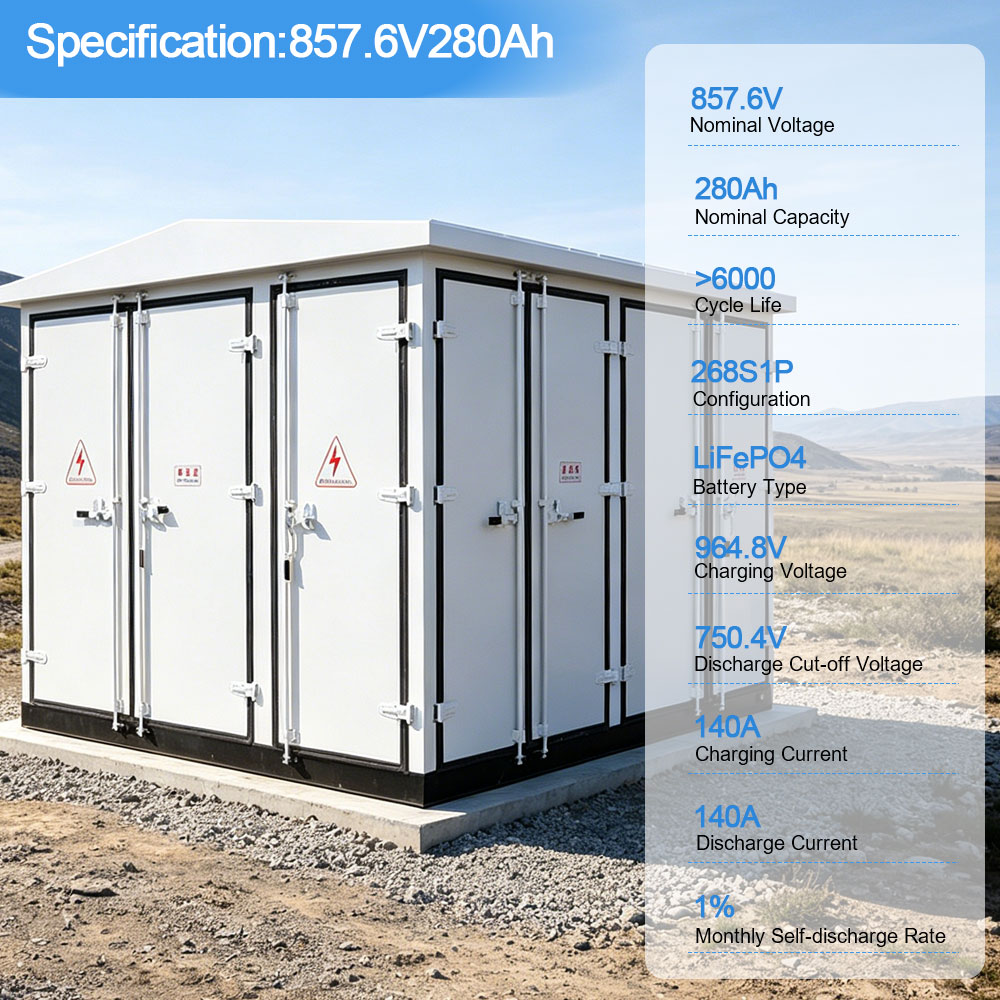

Product Specification Sheet
| Item | Parameter |
|---|---|
| Basic Parameters | |
| Model / Specification | 857.6V 280Ah |
| Nominal Voltage | 857.6 V |
| Nominal Capacity | 280 Ah |
| Cell Configuration | 268S1P |
| Battery Type | Prismatic LiFePO₄ (Lithium Iron Phosphate) |
| Electrical Parameters | |
| Charge Voltage | 964.8 V |
| Discharge Cut-off Voltage | 750.4 V |
| Charge Current | 140 A |
| Discharge Current | 140 A |
| Temperature Parameters | |
| Storage Temperature | -40 ~ 45 ℃ |
| Charging Operating Temperature | 0 ~ 45 ℃ |
| Discharging Operating Temperature | -10 ~ 55 ℃ |
| Performance & Lifespan | |
| Cycle Life | ≥ 6,000 cycles |
| Monthly Self-discharge Rate | ≤ 1% |
| Warranty Period | 1 year |
| Protection Features | Overcharge protection, Over-discharge protection, Short-circuit protection, Temperature control protection, BMS intelligent protection |
| Application | Energy storage systems / Power & energy storage applications |
| Certification & Origin | |
| Product Certification | CE |
| Imported or Not | Non-imported (Domestically produced) |
| Rechargeable or Not | Rechargeable |
