Automatic 4400W PEM Water Electrolysis Hydrogen Production Equipment 0.6Nm³/h High Purity 99.999% 3.5MPa High Pressure Green Hydrogen Making Machine
MOQ: 1 Pcs (Min. Order)
SKU: EQ-PEM-04
| Product Name | PEM Water Electrolysis Hydrogen Production Equipment |
| Model | EQ-PEM-04 |
| Hydrogen Output Capacity | 0.6 Nm³/h |
| Hydrogen Outlet Pressure | 3.5MPa |
| Operating Temperature Range | 5℃ ~ 70℃ |
| Hydrogen Purity | 99.999% |
| Core Technology | PEM Proton Exchange Membrane Water Electrolysis |
| Core Advantages | High Performance, Non-Corrosive, Non-Polluting, High Stability, High Reliability |
| Intelligent Functions | One-Button Start/Shutdown, Automatic Fault Detection, Automatic Tracking Protection, Full Automatic Control System, Fast Response, Low Power Consumption |

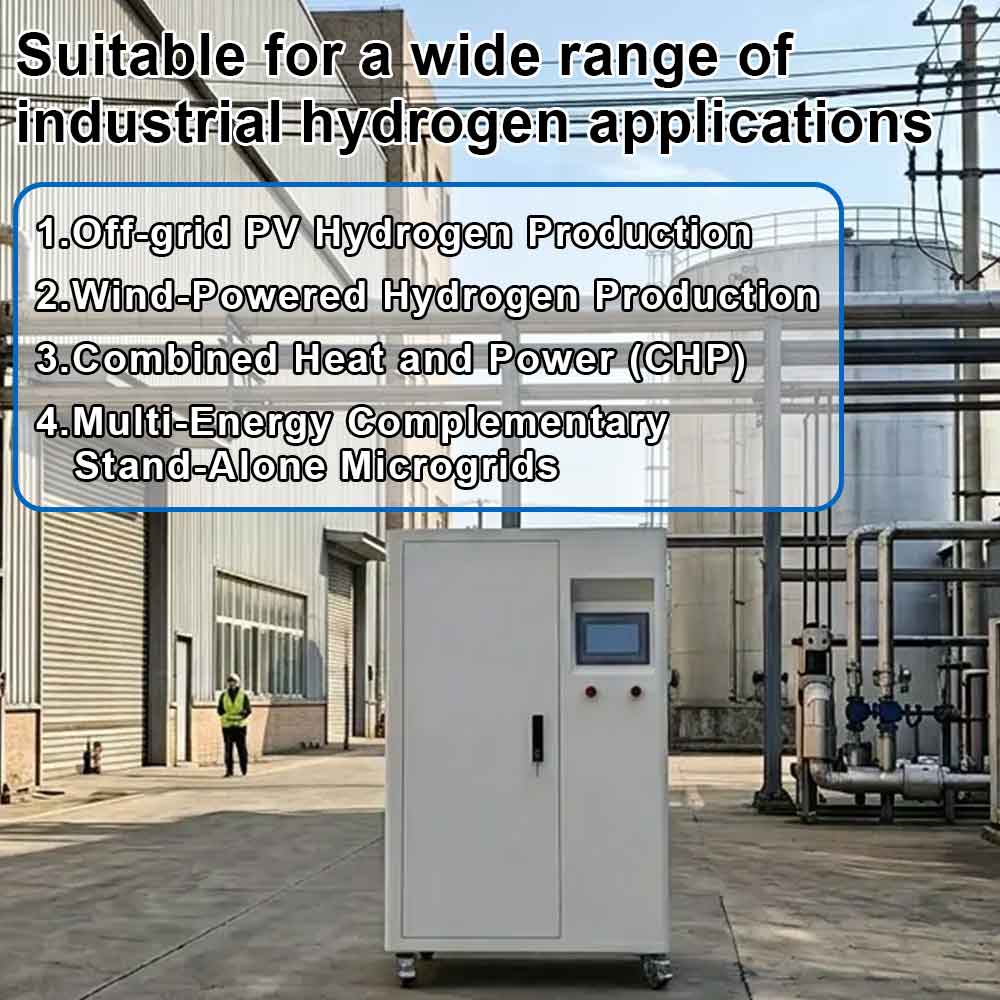

| Main Application Scenarios | Off-grid PV Hydrogen Production, Wind-Powered Hydrogen Production, Combined Heat and Power (CHP), Multi-Energy Complementary Stand-Alone Microgrids, Hydrogen-Rich Water Preparation, Industrial Hydrogen Supply |
| Operation Feature | Touch Screen Intelligent Control, Mobile Casters for Flexible Movement |
Please Send Inquiry, we'll get back to email you in 12 hours.
Description
| Product Name | PEM Water Electrolysis Hydrogen Production Equipment |
| Model | EQ-PEM-04 |
| Hydrogen Output Capacity | 0.6 Nm³/h |
| Hydrogen Outlet Pressure | 3.5MPa |
| Operating Temperature Range | 5℃ ~ 70℃ |
| Hydrogen Purity | 99.999% |
| Core Technology | PEM Proton Exchange Membrane Water Electrolysis |
| Core Advantages | High Performance, Non-Corrosive, Non-Polluting, High Stability, High Reliability |
| Intelligent Functions | One-Button Start/Shutdown, Automatic Fault Detection, Automatic Tracking Protection, Full Automatic Control System, Fast Response, Low Power Consumption |
| Main Application Scenarios | Off-grid PV Hydrogen Production, Wind-Powered Hydrogen Production, Combined Heat and Power (CHP), Multi-Energy Complementary Stand-Alone Microgrids, Hydrogen-Rich Water Preparation, Industrial Hydrogen Supply |
| Operation Feature | Touch Screen Intelligent Control, Mobile Casters for Flexible Movement |

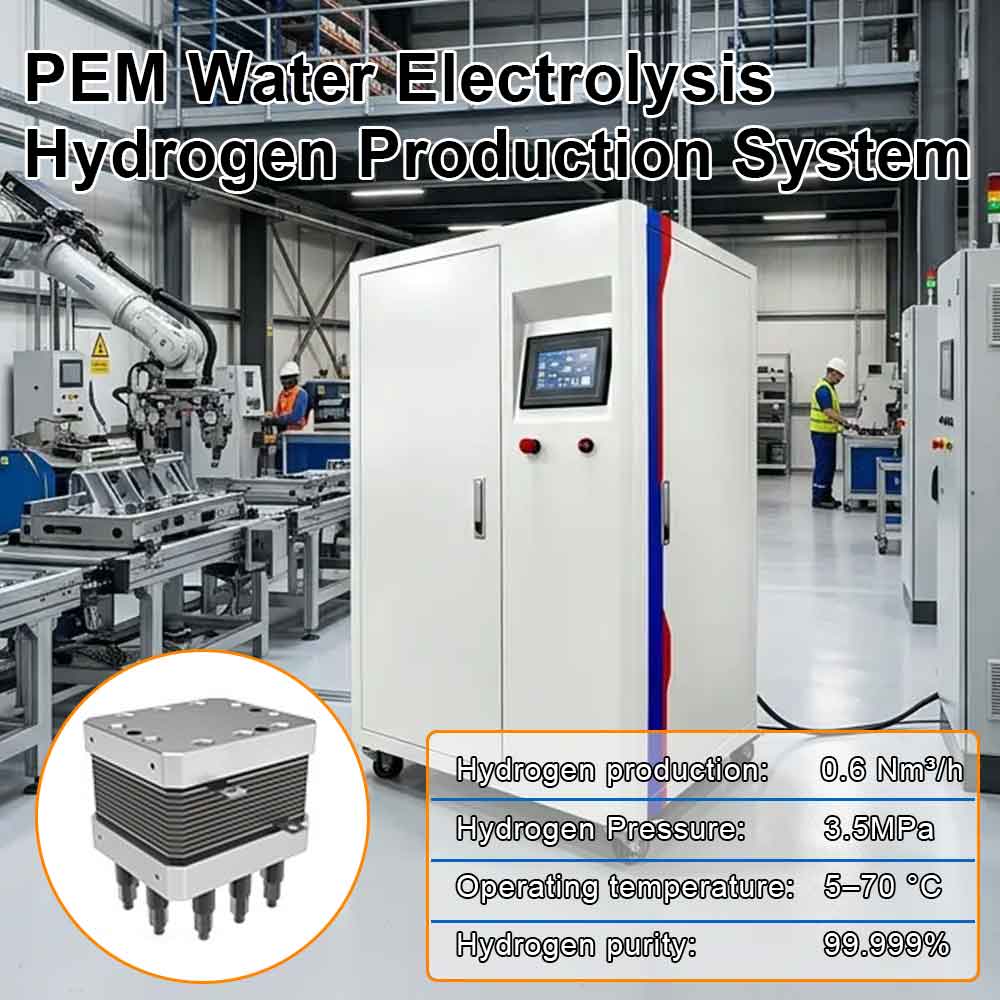

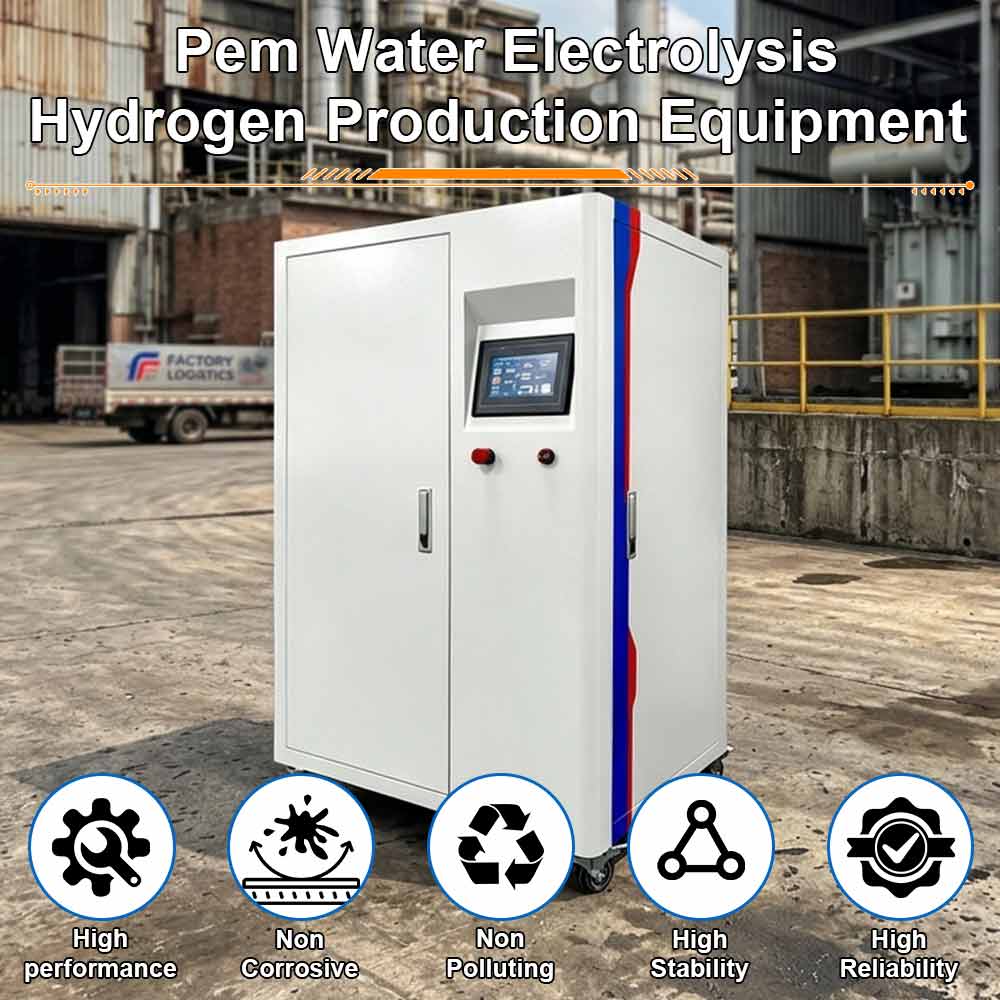

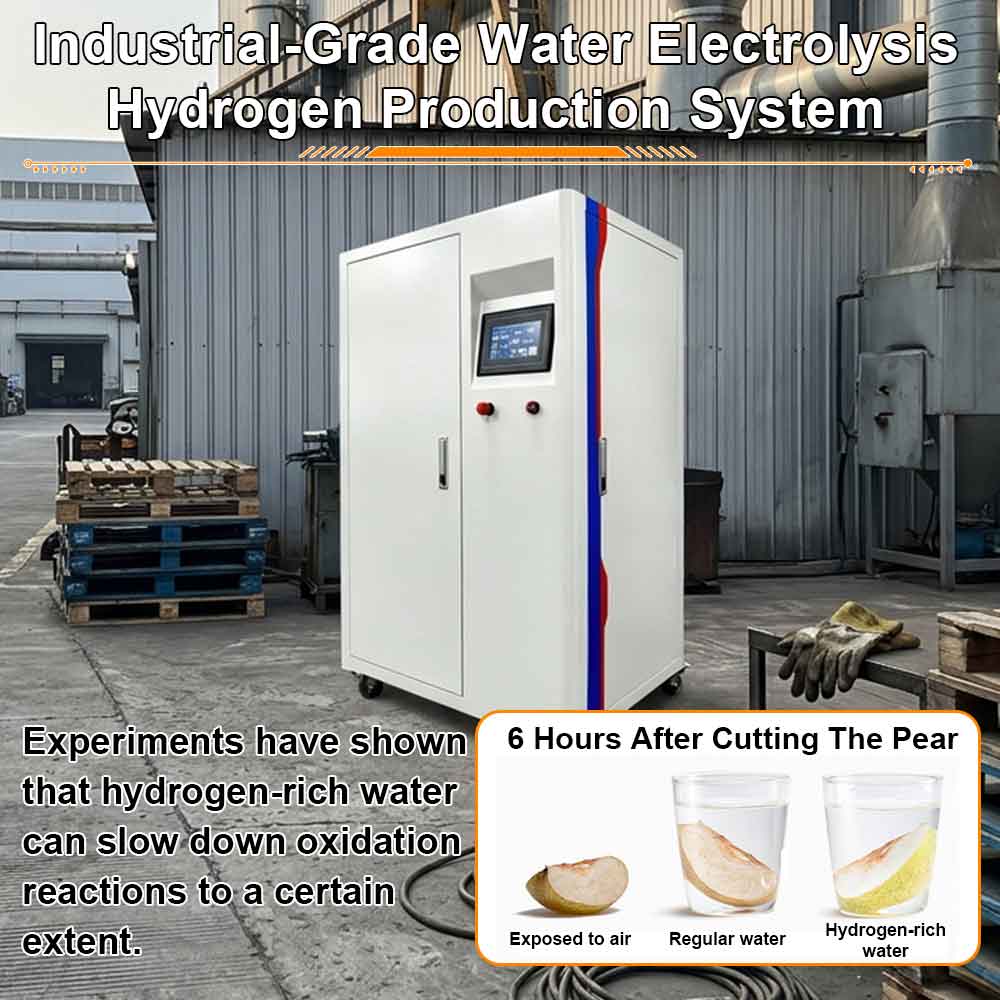

This PEM water electrolysis hydrogen production system is an industrial-grade green hydrogen generating device adopting advanced proton exchange membrane electrolysis technology. It realizes clean hydrogen production only by deionized water without any polluting by-products, featuring non-corrosive internal structure, stable operation and long service reliability.

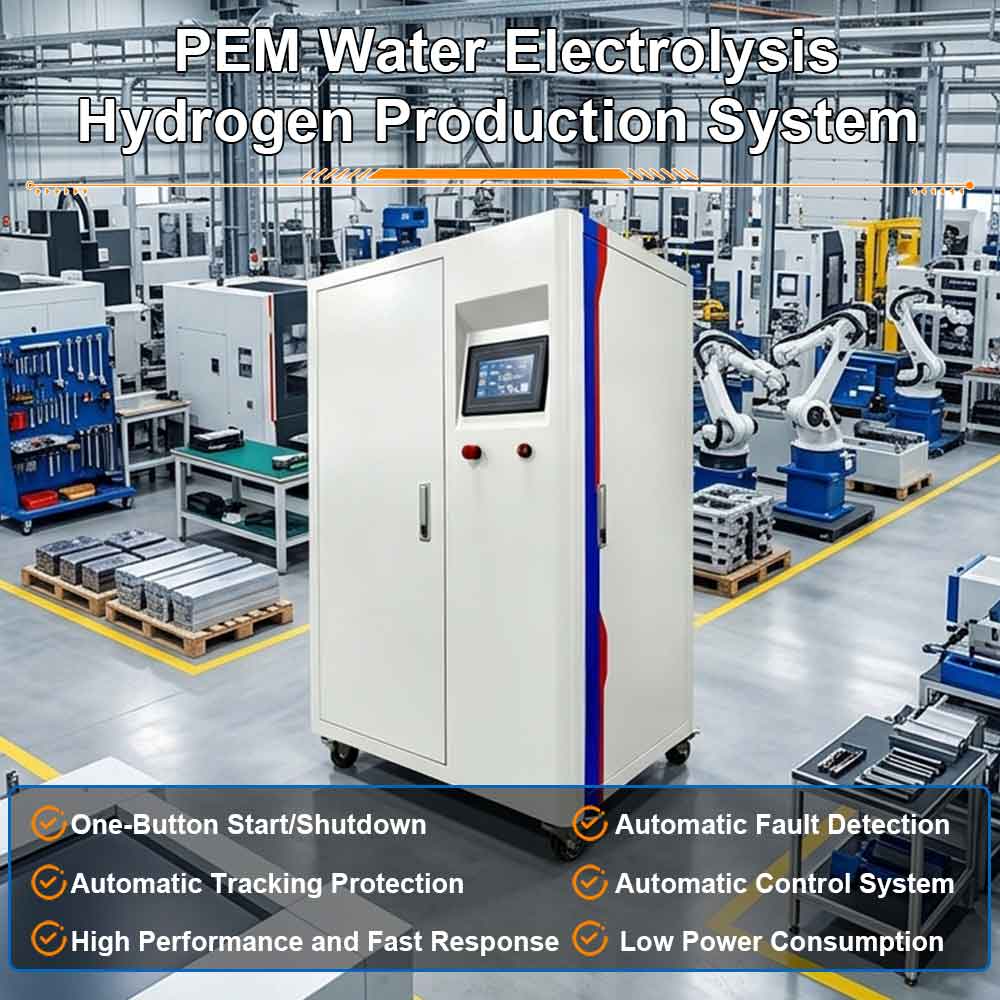

The machine supports one-button start & shutdown operation with full automatic control system, equipped with automatic fault detection and automatic tracking protection functions, which can respond rapidly with low power consumption. Its core electrolytic stack enables stable hydrogen output of 0.6 Nm³/h, outlet hydrogen pressure reaches 3.5MPa, working temperature ranges from 5℃ to 70℃, and hydrogen purity can hit up to 99.999%, meeting strict industrial hydrogen standards.
